Wi-Fi Models

The below models are some models that JFW has designed for Wi-Fi applications. These models are also located on our standard sortable product tables.

Wi-Fi is a trademark that was created by the Wi-Fi Alliance to help market products that meet the IEEE 802.11b standard. The IEEE 802.11 standards define the protocols for wireless local area network (WLAN) communication.

WLAN consists of three frequency bands: 2.4, 3.6, and 5GHz.
2.4GHz band (802.11b, 802.11g, 802.11n): 2412 – 2484 MHz
3.6GHz band (802.11y): 3657.5 – 3690 MHz
5GHz band (802.11a, 802.11h, 802.11j, 802.11n): 4915 – MHz

If you can’t find a model for your specific application, please email us at sales@jfwindustries.com your requirements.

Test Systems for WiFi Applications

JFW Model #ImpedanceConfigdB TotaldB StepFrequency StartFrequency StopControlRF Connectors

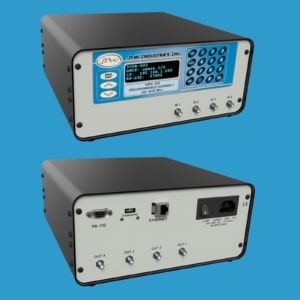

50PA-50550 Ohms4 Attenuators (Solid-State)63 dB1 dB200 MHz6 GHzManual, Ethernet, RS-232N, SMA

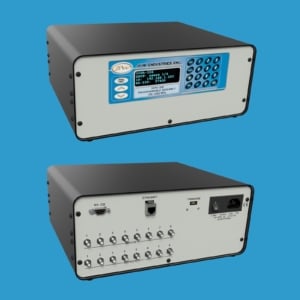

50PA-50650 Ohms8 Attenuators (Solid-State)63 dB1 dB200 MHz6 GHzManual, Ethernet, RS-232SMA
50PA-51750 Ohms4 Attenuators (Solid-State)95 dB1 dB200 MHz6 GHzManual, Ethernet, RS-232N, SMA

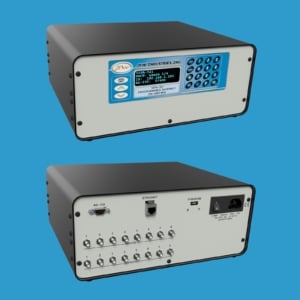

50PA-52150 Ohms8 Attenuators (Solid-State)95 dB1 dB200 MHz6 GHzManual, Ethernet, RS-232SMA
50PA-128-XX50 Ohms1-8 Attenuators (Solid-State)95 dB1 dB200 MHz6 GHzManual, Ethernet, RS-232N, SMA

Attenuators for WiFi Applications

JFW Model #ImpedancedB TotaldB StepFrequency StartFrequency StopRF Input PowerRF Connectors
50P-185350 Ohms63 dB1 dB200 MHz6 GHz+20 dBmSMA
50P-185750 Ohms95 dB1 dB200 MHz6 GHz+20 dBmSMA

Power Dividers/Combiners for WiFi Applications

JFW Model #ImpedanceConfigFrequency StartFrequency StopRF Input PowerRF Connectors
50PD-63450 Ohms2-Way2000 MHz6 GHz5 WattsSMA Female

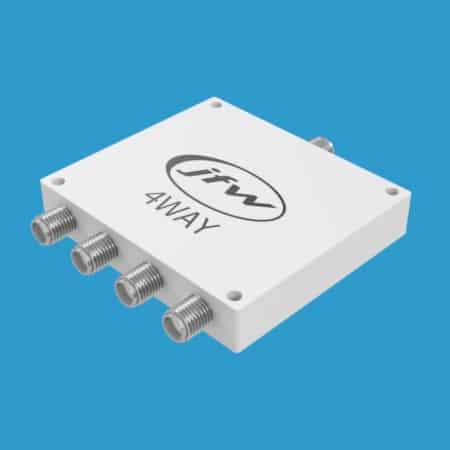

50PD-63850 Ohms4-Way2000 MHz6 GHz5 WattsSMA Female
50PD-64750 Ohms8-Way2000 MHz6 GHz5 WattsSMA Female

Showing 1–3 of 9 results
