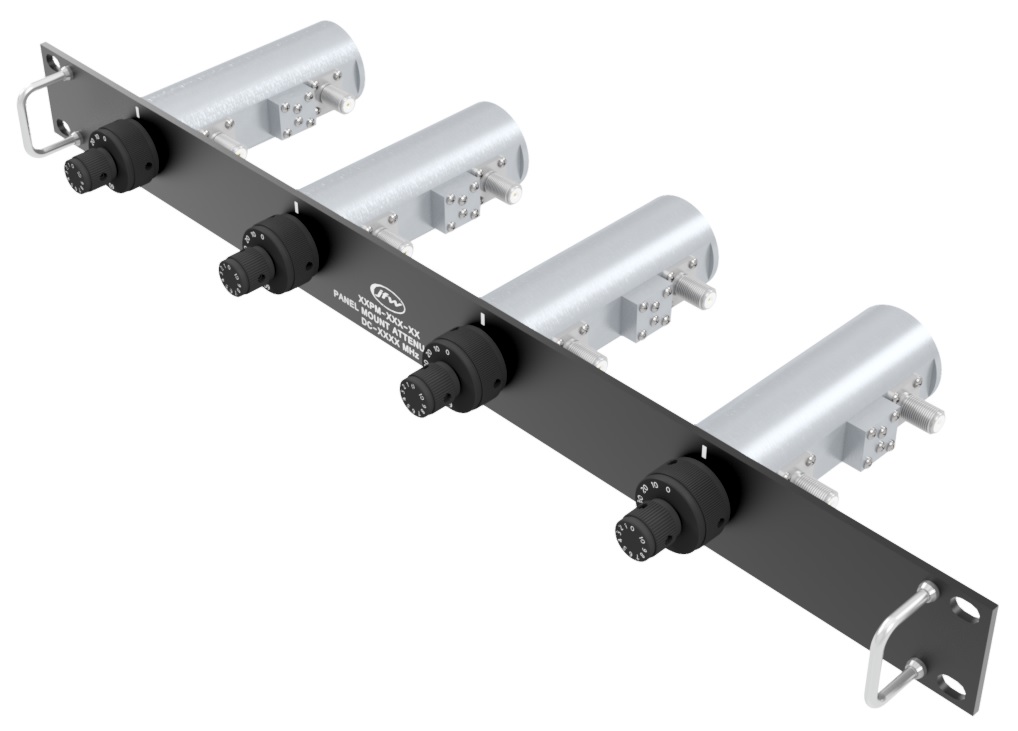

Four 75 Ohm manual attenuators mounted to a 19 inch panel

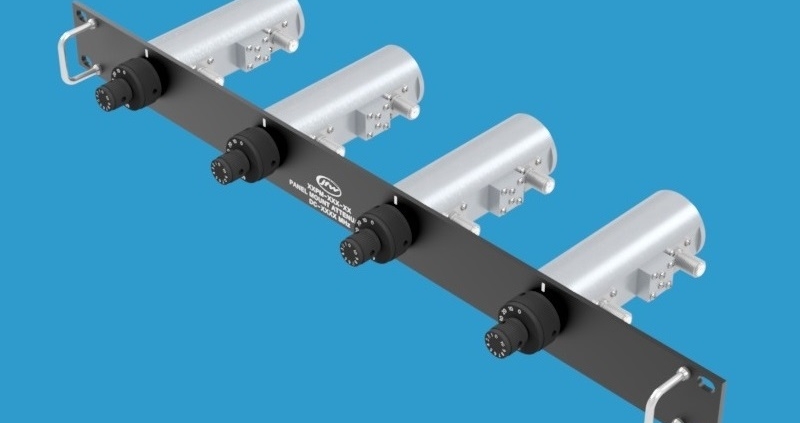

75 Ohm panel mount manual attenuator75 Ohm Panel Mounted Manual Attenuators

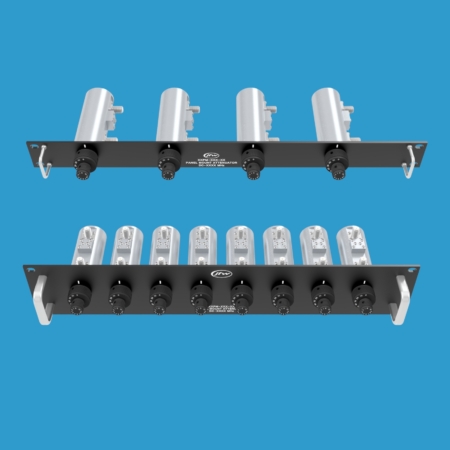

JFW’s standard 75 Ohm panel mounted rotary attenuator models are listed in the table below.  These standard models have 19 inch rack mountable panels. The panel height varies depending on the number of attenuators.  We do offer models with empty positions to allow for future expansion of your test setup. JFW can integrate any of our 75 Ohm manually variable attenuators into a panel mounted model.  If you have specific requirements (i.e. panel screening, panel color, RF connector configuration) then please contact our engineering team.

For model recommendations, please contact JFW or use our Inquiry Form.

JFW Model #ImpedanceConfigurationPanel WidthdB TotaldB StepFrequency StartFrequency StopRF Input PowerRF Connectors
75PM-026-XX75 Ohm1-8 Attenuators19 inch70 dB1 dBDC1000 MHz1 WattBNC, F, N
75PM-027-XX75 Ohm1-8 Attenuators19 inch50 dB1 dBDC1500 MHz1 WattBNC, F, N
75PM-028-XX75 Ohm1-8 Attenuators19 inch30 dB1 dBDC2100 MHz1 WattBNC, F, N
75PM-029-XX75 Ohm1-8 Attenuators19 inch30 dB1 dBDC1000 MHz1 WattBNC, F
75PM-030-XX75 Ohm1-8 Attenuators19 inch80 dB1 dBDC1218 MHz1 WattBNC, F, N
75PM-031-XX75 Ohm1-8 Attenuators19 inch11 dB0.1 dBDC1218 MHz1 WattBNC, F, N
