Benchtop Manual Attenuators (Enclosure)
Benchtop manual attenuators are a staple RF test bench piece of equipment. Simple to control and requires no AC power to operate. These online models have the RF connectors on the rear panel and the manual knobs on the front panel. For your specific application, please contact JFW for assistance or use our Inquiry Form.
Step Attenuator Design
The benchtop attenuator assemblies use step attenuators internally. The step attenuators are connected in series with each other. The attenuation setting of the assembly is the sum of the attenuation indicated by both knobs.
50 Ohm Models
JFW Model # | Impedance | dB Total | dB Step | Frequency Start | Frequency Stop | RF Input Power | RF Connectors |
---|---|---|---|---|---|---|---|
50BR-001 | 50 Ohm | 110 dB | 1 dB | DC | 2000 MHz | 2 Watt | BNC, N, SMA, TNC |
50BR-068 | 50 Ohm | 110 dB | 1 dB | DC | 2550 MHz | 2 Watt | BNC, N, SMA, TNC |
50BR-092 | 50 Ohm | 81 dB | 0.1 dB | DC | 1000 MHz | 2 Watt | BNC, N, SMA, TNC |
50BR-096 | 50 Ohm | 80 dB | 1 dB | DC | 2200 MHz | 2 Watt | BNC, N, SMA, TNC |
50BR-104 | 50 Ohm | 80 dB | 1 dB | DC | 2700 MHz | 2 Watt | BNC, N, SMA, TNC |
50BR-112 | 50 Ohm | 110 dB | 1 dB | DC | 2700 MHz | 2 Watt | BNC, N, SMA, TNC |
50BR-137 | 50 Ohm | 61 dB | 0.1 dB | DC | 100 MHz | 2 Watt | BNC, N, SMA, TNC |
50BR-147 | 50 Ohm | 110 dB | 1 dB | DC | 3000 MHz | 2 Watt | N, SMA, TNC |
50BR-148 | 50 Ohm | 80 dB | 1 dB | DC | 3000 MHz | 2 Watt | BNC, N, SMA, TNC |
50BR-160 | 50 Ohm | 121 dB | 1 dB | DC | 4000 MHz | 1 Watt | N, SMA |
50BR-108 | 50 Ohm | 121 dB | 1 dB | DC | 8000 MHz | 1 Watt | N, SMA |
50BR-161 | 50 Ohm | 121 dB | 1 dB | DC | 18000 MHz | 1 Watt | N, SMA |
75 Ohm Models
JFW Model # | Impedance | dB Total | dB Step | Frequency Start | Frequency Stop | RF Input Power | RF Connectors |
---|---|---|---|---|---|---|---|
75BR-014 | 75 Ohm | 90 dB | 1 dB | DC | 1000 MHz | 1 Watt | BNC, F, N |
75BR-023 | 75 Ohm | 70 dB | 1 dB | DC | 2150 MHz | 1 Watt | BNC, F, N |
75BR-036 | 75 Ohm | 70.75 dB | 0.25 dB | DC | 1218 MHz | 1 Watt | F |
If you can’t find an online model to meet your requirements, please contact JFW. We can integrate any of our manually variable attenuators into a benchtop enclosure per your specific configuration. JFW does not charge NRE’s to design models. We pride ourselves in the ability to offer custom models with the same pricing and delivery as our standard models.
- Display 15 Products per page
-

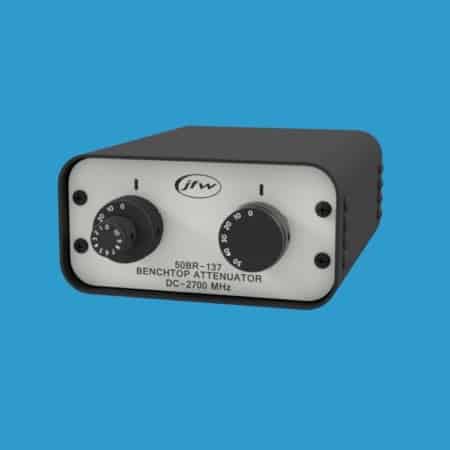

50 Ohm Benchtop Attenuator DC-0.1 GHz 0-61dB x 0.1dB | 50BR-137
JFW Model #: 50BR-137
Type: Manually variable attenuator
Enclosure: Benchtop
Impedance: 50 Ohm
dB Total: 61 dB
dB Step: 0.1 dB
Frequency Range: DC-100 MHz
RF Input Power: 2 Watts
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing -

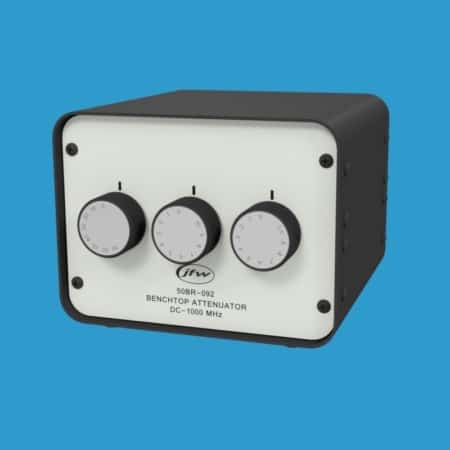

50 Ohm Benchtop Attenuator DC-1 GHz 0-81dB x 0.1dB | 50BR-092
JFW Model #: 50BR-092
Type: Manually variable attenuator
Enclosure: Benchtop enclosure
Impedance: 50 Ohm
dB Total: 81 dB
dB Step: 0.1 dB
Frequency Range: DC-1000 MHz
RF Input Power: 2 Watts
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing -

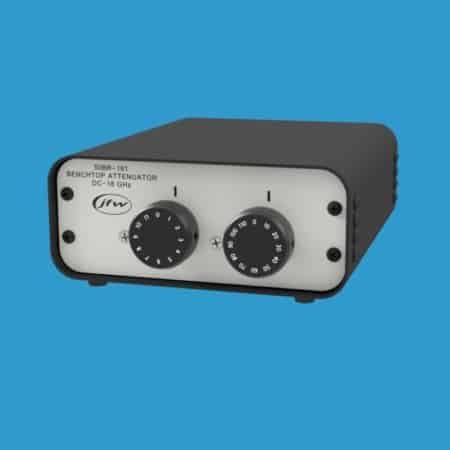

50 Ohm Benchtop Attenuator DC-18GHz 0-121dB x 1dB | 50BR-161
JFW Model #: 50BR-161
Type: Manually variable attenuator
Enclosure: Benchtop
Impedance: 50 Ohm
dB Total: 121 dB
dB Step: 1 dB
Frequency Range: DC-18 GHz
RF Input Power: 1 Watt
RF Connectors: N or SMA female
Documentation: Data Sheet | Drawing -

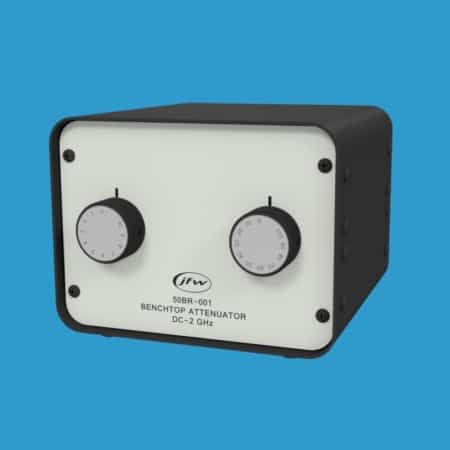

50 Ohm Benchtop Attenuator DC-2 GHz 0-110dB x 1dB | 50BR-001
JFW Model #: 50BR-001
Type: Manually variable attenuator
Enclosure: Benchtop enclosure
Impedance: 50 Ohm
dB Total: 110 dB
dB Step: 1 dB
Frequency Range: DC-2000 MHz
RF Input Power: 2 Watts
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing -
50 Ohm Benchtop Attenuator DC-2.2 GHz 0-80dB x 1dB | 50BR-096
JFW Model #: 50BR-096
Type: Manually variable attenuator
Enclosure: Benchtop enclosure
Impedance: 50 Ohm
dB Total: 80 dB
dB Step: 1 dB
Frequency Range: DC-2200 MHz
RF Input Power: 2 Watts
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing -

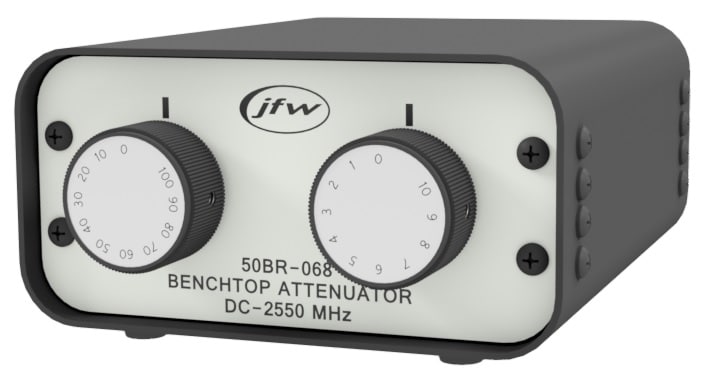

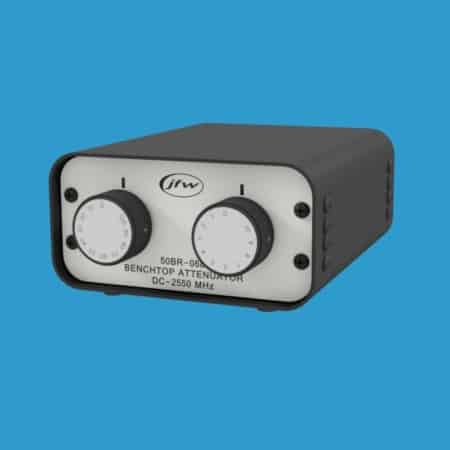

50 Ohm Benchtop Attenuator DC-2.55 GHz 0-110dB x 1dB | 50BR-068
JFW Model #: 50BR-068
Type: Manually variable attenuator
Enclosure: Benchtop enclosure
Impedance: 50 Ohm
dB Total: 110 dB
dB Step: 1 dB
Frequency Range: DC-2550 MHz
RF Input Power: 2 Watts
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing -

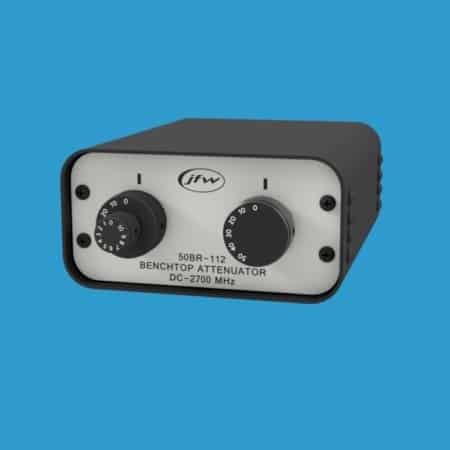

50 Ohm Benchtop Attenuator DC-2.7 GHz 0-110dB x 1dB | 50BR-112
JFW Model #: 50BR-112
Type: Manually variable attenuator
Enclosure: Benchtop
Impedance: 50 Ohm
dB Total: 110 dB
dB Step: 1 dB
Frequency Range: DC-2700 MHz
RF Input Power: 2 Watts
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing -
50 Ohm Benchtop Attenuator DC-2.7 GHz 0-80dB x 1dB | 50BR-104
JFW Model #: 50BR-104
Type: Manually variable attenuator
Enclosure: Benchtop enclosure
Impedance: 50 Ohm
dB Total: 80 dB
dB Step: 1 dB
Frequency Range: DC-2700 MHz
RF Input Power: 2 Watts
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing -
50 Ohm Benchtop Attenuator DC-3 GHz 0-110dB x 1dB | 50BR-147
JFW Model #: 50BR-147
Type: Manually variable attenuator
Enclosure: Benchtop
Impedance: 50 Ohm
dB Total: 110 dB
dB Step: 1 dB
Frequency Range: DC-3000 MHz
RF Input Power: 2 Watts
RF Connectors: N, SMA, TNC
Documentation: Data Sheet | Drawing -

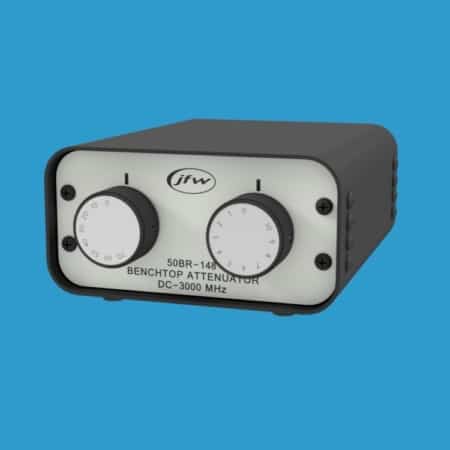

50 Ohm Benchtop Attenuator DC-3 GHz 0-80dB x 1dB | 50BR-148
JFW Model #: 50BR-148
Type: Manually variable attenuator
Enclosure: Benchtop
Impedance: 50 Ohm
dB Total: 80 dB
dB Step: 1 dB
Frequency Range: DC-3000 MHz
RF Input Power: 2 Watts
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing -

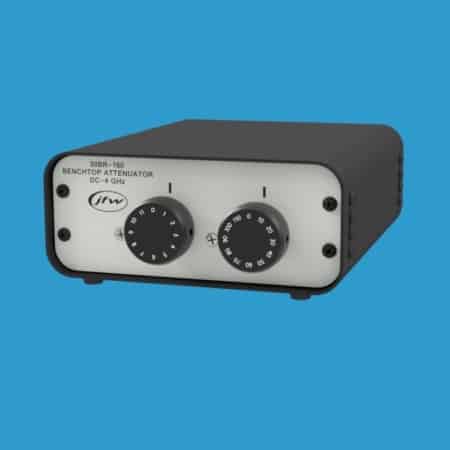

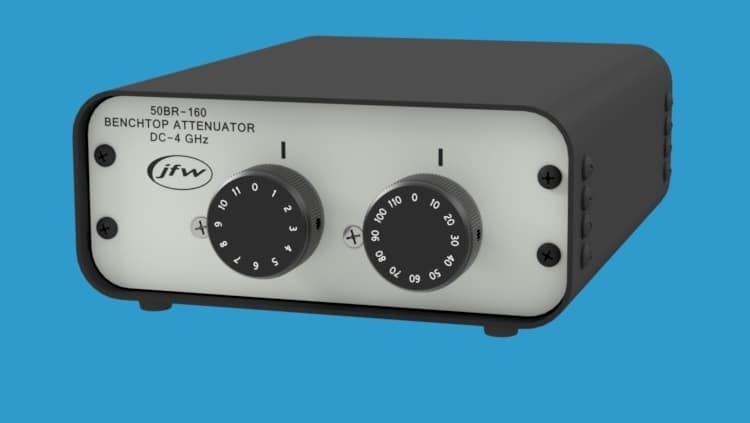

50 Ohm Benchtop Attenuator DC-4GHz 0-121dB x 1dB | 50BR-160
JFW Model #: 50BR-160
Type: Manually variable attenuator
Enclosure: Benchtop
Impedance: 50 Ohm
dB Total: 121 dB
dB Step: 1 dB
Frequency Range: DC-4000 MHz
RF Input Power: 1 Watt
RF Connectors: N or SMA Female
Documentation: Data Sheet | Drawing -
50 Ohm Benchtop Attenuator DC-8GHz 0-121dB x 1dB | 50BR-108
JFW Model #: 50BR-108
Type: Manually variable attenuator
Enclosure: Benchtop
Impedance: 50 Ohm
dB Total: 121 dB
dB Step: 1 dB
Frequency Range: DC-8 GHz
RF Input Power: 1 Watt
RF Connectors: N or SMA Female
Documentation: Data Sheet | Drawing -

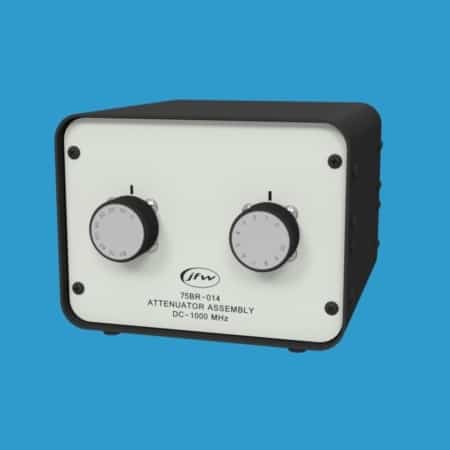

75 Ohm Benchtop Attenuator DC-1000 MHz 0-90dB x 1dB | 75BR-014
JFW Model #: 75BR-014
Type: Manually variable attenuator
Enclosure: Benchtop
Impedance: 75 Ohm
dB Total: 90 dB
dB Step: 1 dB
Frequency Range: DC-1000 MHz
RF Input Power: 1 Watt
RF Connectors: BNC, F, N
Documentation: Data Sheet | Drawing -

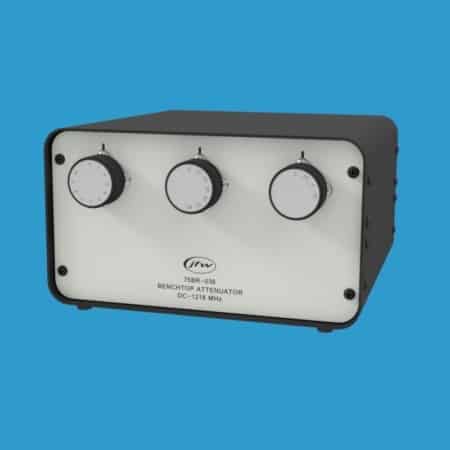

75 Ohm Benchtop Attenuator DC-1218 MHz 0-70.75dB x 0.25dB | 75BR-036
JFW Model #: 75BR-036
Type: Manually variable attenuator
Enclosure: Benchtop
Impedance: 75 Ohm
dB Total: 70.75 dB
dB Step: 0.25 dB
Frequency Range: DC-1218 MHz
RF Input Power: 1 Watt
RF Connectors: F Female
Documentation: Data Sheet | Drawing -
75 Ohm Benchtop Attenuator DC-2150 MHz 0-70dB x 1dB | 75BR-023
JFW Model #: 75BR-023
Type: Manually variable attenuator
Enclosure: Benchtop
Impedance: 75 Ohm
dB Total: 70 dB
dB Step: 1 dB
Frequency Range: DC-2150 MHz
RF Input Power: 1 Watt
RF Connectors: BNC, F, N
Documentation: Data Sheet | Drawing
