50 Ohm Reactive Divider/Combiner (High Power)

JFW’s line of 50 Ohm high power reactive power divider/combiner models are listed in the table below. Use our application note to help determine which divider/combiner type is best for your application. For your specific application, please contact JFW or use our Inquiry Form.

Reactive Divider/Combiner Characteristics:

Functions as splitter to fan-out a RF signal with minimum loss
Functions as combiner to fan-in RF signals with minimum loss
Lower insertion loss than resistive type divider/combiner
Has isolation between combiner ports (typically 20 dB)

Model	Impedance	Design	Frequency Start	Frequency Stop	RF Input Power	RF Connectors
50PD-424	50 Ohm	4-Way	800 MHz	900 MHz	200 Watts (Divider), 50 Watts (Combiner)	N, SMA
50PD-681	50 Ohm	2-Way	700 MHz	2700 MHz	100 Watts (Divider), 25 Watts (Combiner)	N, SMA
50PD-682	50 Ohm	4-Way	700 MHz	2700 MHz	100 Watts (Divider), 25 Watts (Combiner)	N, SMA, TNC
50PD-698	50 Ohm	2-Way	700 MHz	3000 MHz	100 Watts (Divider), 25 Watts (Combiner)	N, SMA
50PD-700	50 Ohm	2-Way	380 MHz	400 MHz	200 Watts (Divider), 70 Watts (Combiner)	N, SMA
50PD-743	50 Ohm	2-Way	200 MHz	500 MHz	100 Watts (Divider), 25 Watts (Combiner)	N, SMA
50PD-756	50 Ohm	2-Way	500 MHz	2000 MHz	100 Watts (Divider), 25 Watts (Combiner)	N, SMA
50PD-759	50 Ohm	4-Way	350 MHz	500 MHz	250 Watts (Divider), 100 Watts (Combiner)	N, SMA
50PD-774	50 Ohm	2-Way	450 MHz	460 MHz	200 Watts (Divider), 70 Watts (Combiner)	N, SMA
50PD-788	50 Ohm	2-Way	138 MHz	174 MHz	200 Watts (Divider), 70 Watts (Combiner)	N, SMA

Sort by Default

Display 15 Products per page

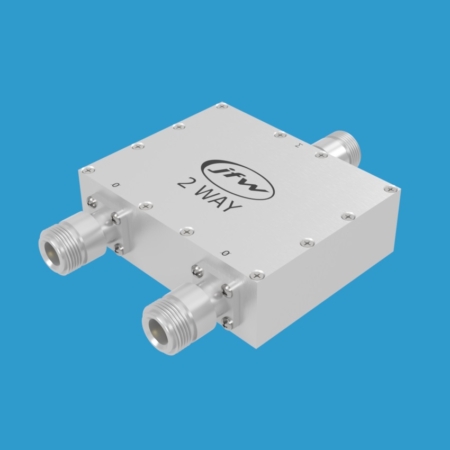

2-Way Power Divider/Combiner 138-174 MHz 200 Watt | 50PD-788

JFW Model #: 50PD-788
Impedance: 50 Ohm
Configuration: 2-Way power divider/combiner
Frequency Range: 138-174 MHz
RF Input Power: 200 Watts (Divider), 70 Watts (Combiner)
RF Connectors: N, SMA female
Documentation: Data Sheet | Drawing

Read more

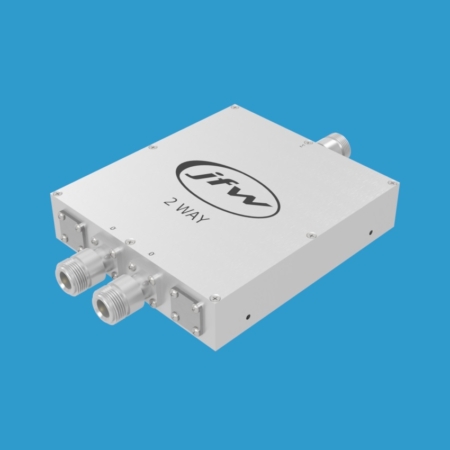

2-Way Power Divider/Combiner 200-500 MHz 100 Watt | 50PD-743

JFW Model #: 50PD-743
Impedance: 50 Ohm
Configuration: 2-Way power divider/combiner
Frequency Range: 200-500 MHz
RF Input Power: 100 Watts (divider port), 25 Watts (combiner ports)
RF Connectors: N, SMA female
Documentation: Data Sheet | Drawing

Read more
2-Way Power Divider/Combiner 380-400 MHz 200 Watt | 50PD-700

JFW Model #: 50PD-700
Impedance: 50 Ohm
Configuration: 2-Way power divider/combiner
Frequency Range: 380-400 MHz
RF Input Power: 200 Watts (divider port), 70 Watts (combiner ports)
RF Connectors: N, SMA female
Documentation: Data Sheet | Drawing

Read more
2-Way Power Divider/Combiner 450-460 MHz 200 Watt | 50PD-774

JFW Model #: 50PD-774
Impedance: 50 Ohm
Configuration: 2-Way power divider/combiner
Frequency Range: 450-460 MHz
RF Input Power: 200 Watts (divider port), 70 Watts (combiner ports)
RF Connectors: N, SMA female
Documentation: Data Sheet | Drawing

Read more
2-Way Power Divider/Combiner 500-2000 MHz 100 Watt | 50PD-756

JFW Model #: 50PD-756
Impedance: 50 Ohm
Configuration: 2-Way power divider/combiner
Frequency Range: 500-2000 MHz
RF Input Power: 100 Watts (divider port), 25 Watts (combiner ports)
RF Connectors: N, SMA female
Documentation: Data Sheet | Drawing

Read more
2-Way Power Divider/Combiner 700-2700 MHz 100 Watt | 50PD-681

JFW Model #: 50PD-681
Impedance: 50 Ohm
Configuration: 2-Way power divider/combiner
Frequency Range: 700-2700 MHz
RF Input Power: 100 Watts (divider port), 25 Watts (combiner ports)
RF Connectors: N or SMA
Documentation: Data Sheet | Drawing | Optional Heatsink

Read more
2-Way Power Divider/Combiner 700-3000 MHz 100 Watt | 50PD-698

JFW Model #: 50PD-698
Impedance: 50 Ohm
Configuration: 2-Way power divider/combiner
Frequency Range: 700-3000 MHz
RF Input Power: 100 Watts (divider port), 25 Watts (combiner ports)
RF Connectors: N, SMA female
Documentation: Data Sheet | Drawing | Optional Heatsink

Read more

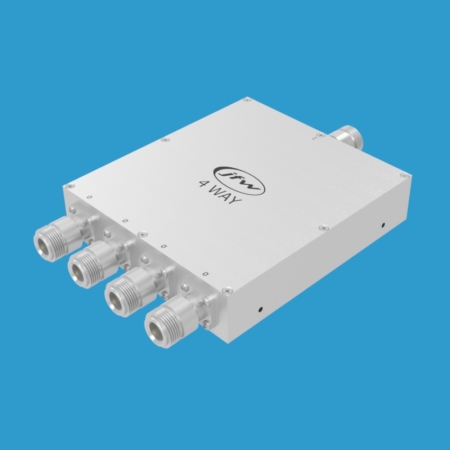

4-Way Power Divider/Combiner 350-500 MHz 250 Watt | 50PD-759

JFW Model #: 50PD-759
Impedance: 50 Ohm
Configuration: 4-Way power divider/combiner
Frequency Range: 350-500 MHz
RF Input Power: 250 Watts (divider port), 100 Watts (combiner ports)
RF Connectors: N, SMA female
Documentation: Data Sheet | Drawing

Read more

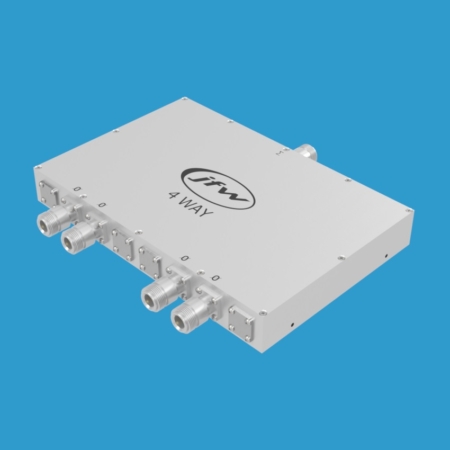

4-Way Power Divider/Combiner 700-2700 MHz 100 Watt | 50PD-682

JFW Model #: 50PD-682
Impedance: 50 Ohm
Configuration: 4-Way power divider/combiner
Frequency Range: 700-2700 MHz
RF Input Power: 100 Watts (divider port), 25 Watts (combiner ports)
RF Connectors: N, SMA, TNC female
Documentation: Data Sheet | Drawing

Read more
4-Way Power Divider/Combiner 800-900 MHz 200 Watt | 50PD-424

JFW Model #: 50PD-424
Impedance: 50 Ohm
Configuration: 4-Way power divider/combiner
Frequency Range: 800-900 MHz
RF Input Power: 200 Watts (divider port), 50 Watts (combiner ports)
RF Connectors: N, SMA female
Documentation: Data Sheet | Drawing

Read more
