50 Ohm Low Power Reactive Power Divider/Combiners

JFW’s online 50 Ohm reactive power (low power) divider/combiner models are listed in the table below.

If you can’t find an online reactive power divider/combiner model to meet your requirements, please contact JFW at sales@jfwindustries.com. With a wide variety of resistive and reactive power dividers/combiners, JFW has solutions to fit your specific RF signal splitting/combining application.

Frequently Asked Questions

Click the column headers to sort our online models. For your specific application, please contact JFW for assistance or use our Inquiry Form.

JFW Model #ImpedanceConfigurationFrequency StartFrequency StopRF Input PowerRF Connectors

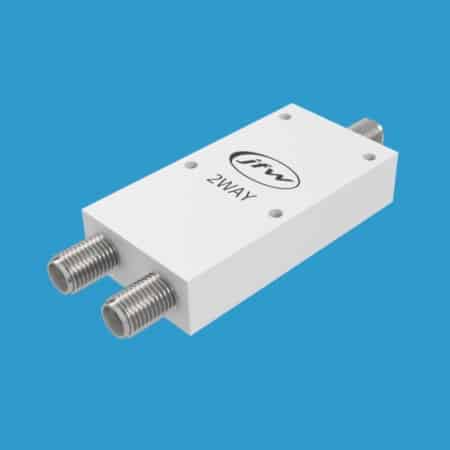

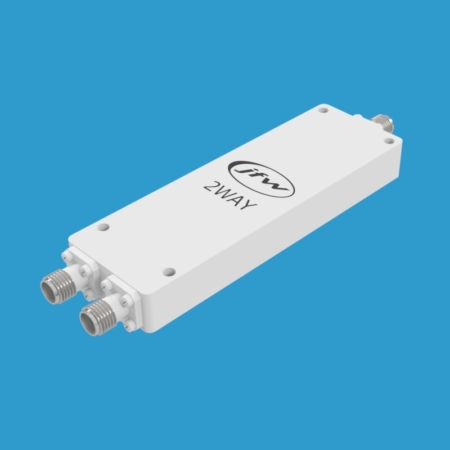

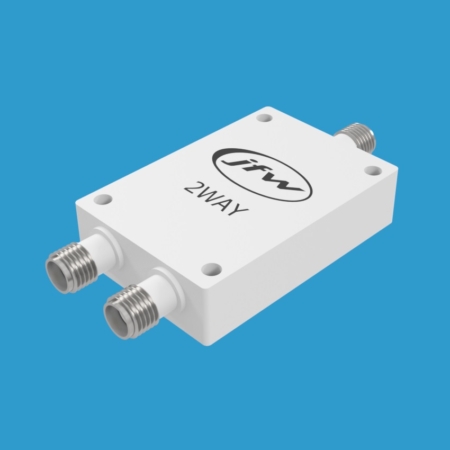

50PD-55950 Ohms2-Way800 MHz2400 MHz5 WattsSMA Female

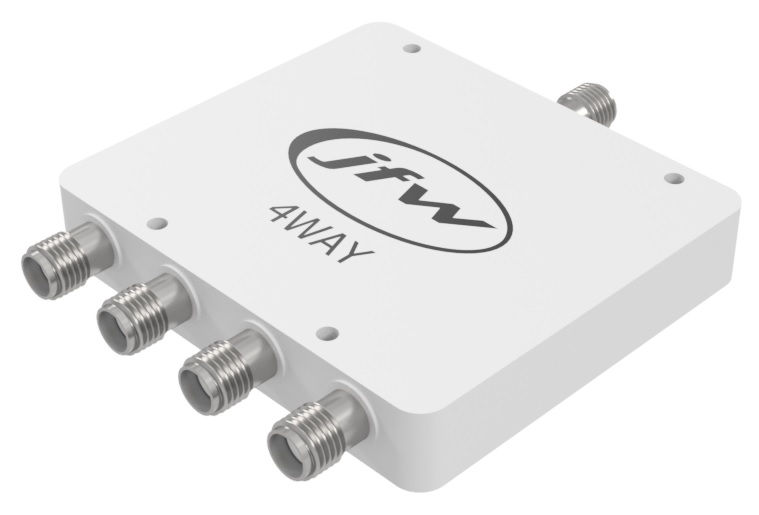

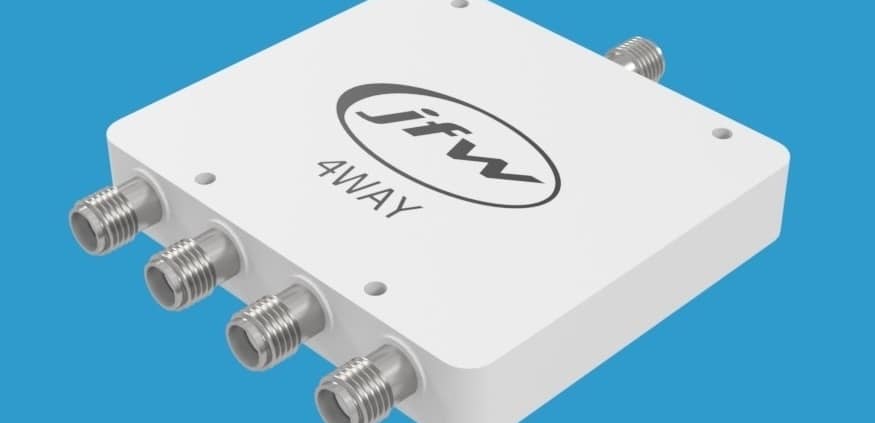

50PD-56050 Ohms4-Way800 MHz2400 MHz5 WattsSMA Female
50PD-57050 Ohms8-Way800 MHz2400 MHz5 WattsSMA Female

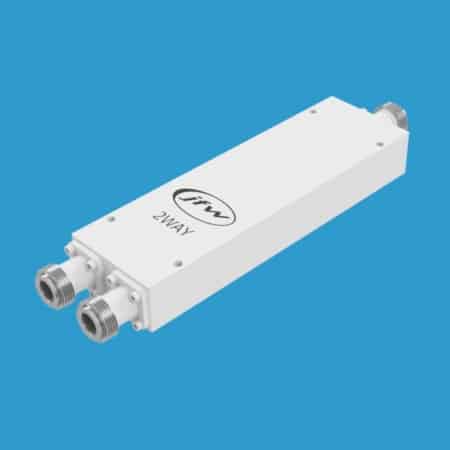

50PD-58550 Ohms2-Way800 MHz2400 MHz5 WattsN Female
50PD-58950 Ohms4-Way800 MHz2400 MHz5 WattsN Female

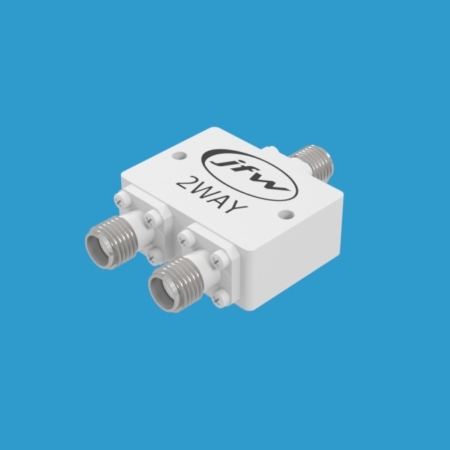

50PD-59050 Ohms2-Way20 MHz3000 MHz1 WattN, SMA Female
50PD-59150 Ohms4-Way20 MHz3000 MHz1 WattSMA Female

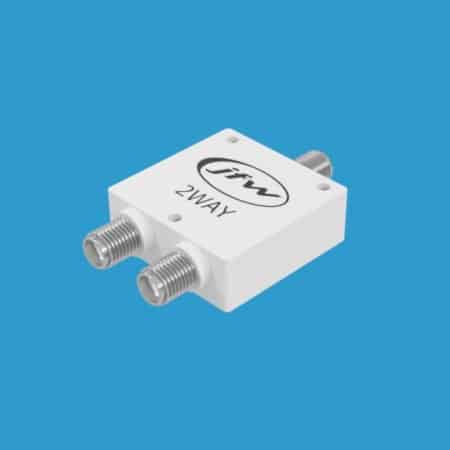

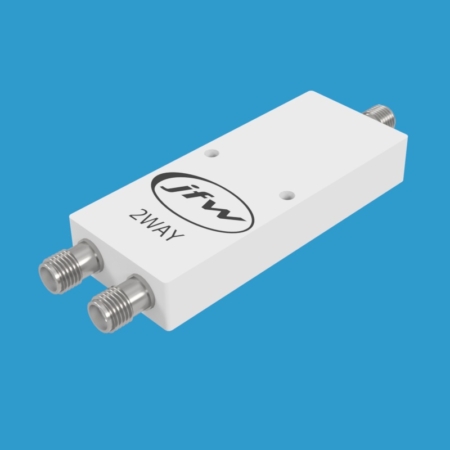

50PD-63450 Ohms2-Way2000 MHz6000 MHz5 WattsSMA Female
50PD-63850 Ohms4-Way2000 MHz6000 MHz5 WattsSMA Female

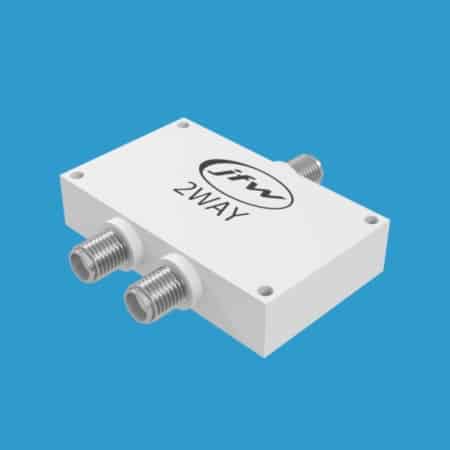

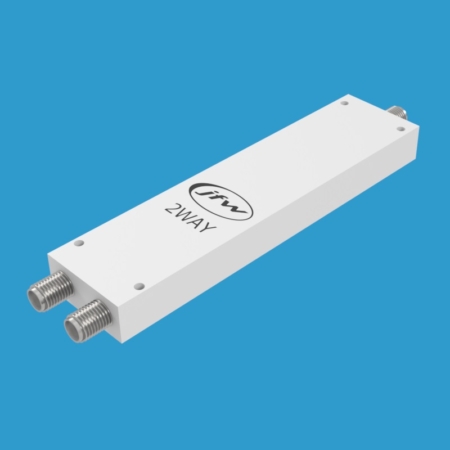

50PD-64550 Ohms2-Way500 MHz6000 MHz5 WattsSMA Female
50PD-64750 Ohms8-Way2000 MHz6000 MHz5 WattsSMA Female
50PD-65050 Ohms4-Way500 MHz6000 MHz5 WattsSMA Female

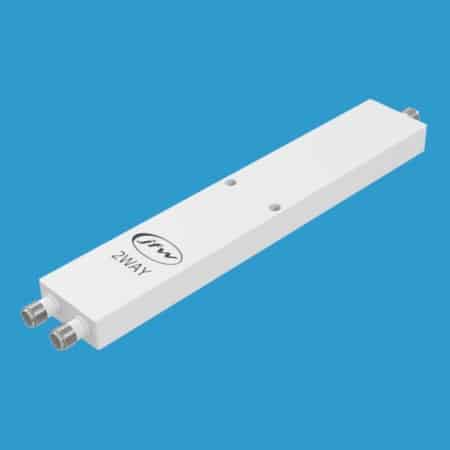

50PD-65950 Ohms2-Way698 MHz3000 MHz5 WattsSMA Female
50PD-66050 Ohms4-Way698 MHz3000 MHz5 WattsSMA Female
50PD-66250 Ohms8-Way500 MHz6000 MHz5 WattsSMA Female
50PD-66550 Ohms8-Way698 MHz3000 MHz5 WattsSMA Female

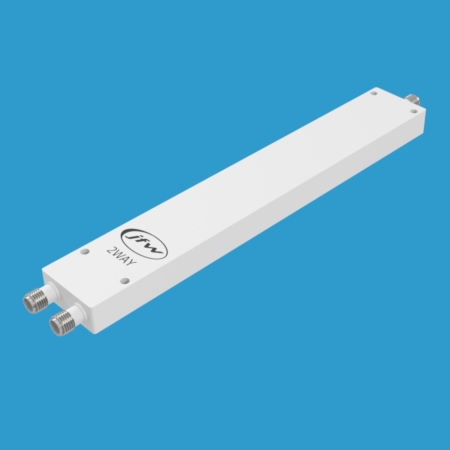

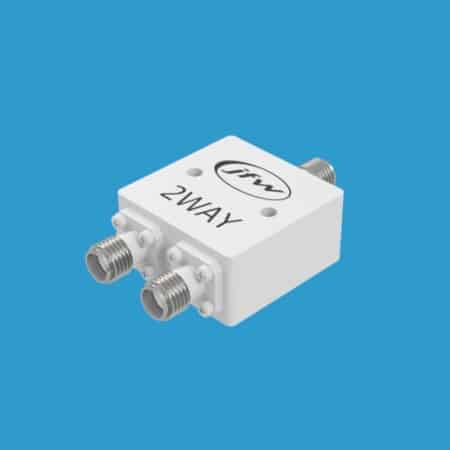

50PD-67250 Ohms2-Way10 MHz1000 MHz1 WattSMA Female
50PD-67350 Ohms4-Way20 MHz1000 MHz1 WattSMA Female
50PD-67450 Ohms8-Way20 MHz1000 MHz1 WattSMA Female
50PD-68750 Ohms8-Way20 MHz3000 MHz1 WattSMA Female

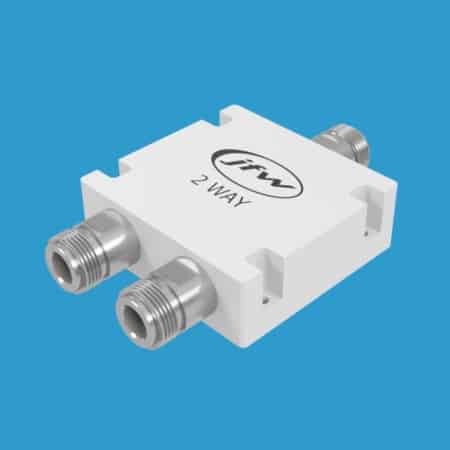

50PD-72750 Ohms2-Way698 MHz3000 MHz5 WattsN Female
50PD-72850 Ohms4-Way698 MHz3000 MHz5 WattsN Female
50PD-74250 Ohms8-Way698 MHz3000 MHz5 WattsN Female
50PD-76550 Ohms4-Way500 MHz6000 MHz5 WattsSMA Female

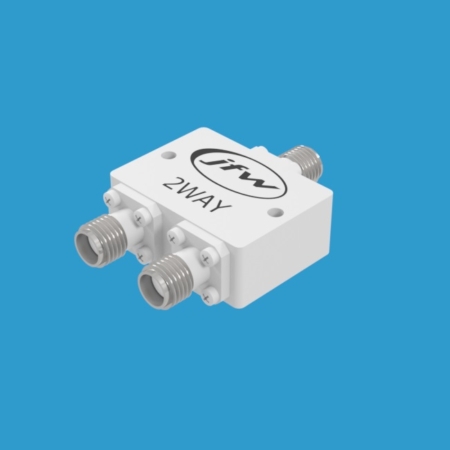

50PD-77650 Ohms2-Way500 MHz4000 MHz5 WattsSMA Female
50PD-79350 Ohms2-Way400 MHz6000 MHz5 WattsSMA Female
50PD-79450 Ohms4-Way400 MHz6000 MHz5 WattsSMA Female
50PD-81350 Ohms2-Way6000 MHz18000 MHz5 WattsSMA Female
50PD-81450 Ohms4-Way6000 MHz18000 MHz5 WattsSMA Female
50PD-81550 Ohms8-Way6000 MHz18000 MHz5 WattsSMA Female

RF Path Examples for Power Dividers/Combiners
Reactive 2-Way
A to B = 3.6dB (insertion loss)
A to C = 3.6dB (insertion loss)
B to A = 3.6dB (insertion loss)
C to A = 3.6dB (insertion loss)
B to C = 20dB (isolation)
C to B = 20dB (isolation)

Resistive 2-Way
A to B = 6.5dB (insertion loss)
A to C = 6.5dB (insertion loss)
B to A = 6.5dB (insertion loss)
C to A = 6.5dB (insertion loss)
B to C = 6.5dB (insertion loss)
C to B = 6.5dB (insertion loss)
Characteristics of Resistive Power Divider/Combiner

Resistive power dividers/combiners function all the way down to DC.
Resistive Power dividers/combiners can be used to combine several signals or split a single signal.
Due to their symmetric design, the isolation of a resistive divider/combiner is equal to its insertion loss. Example: A 2-way resistive power divider/combiner has 6dB of insertion from any port to any other port. All paths have 6dB of insertion loss.
Because a resistive Power divider/combiner has identical insertion loss from any port to any other port, it acts much like a node in a mesh network.
A resistive power divider/combiner has much higher insertion loss than reactive power divider/combiner. Example: 2-way resistive = 6dB, 2-way reactive = 3dB
Some configurations such as 5-way, 7-way, and 10-way are more readily available as resistive power dividers/combiners than as reactive power dividers/combiners.
