50 Ohm Low Power Resistive Power Divider/Combiners

JFW’s online 50 Ohm resistive power divider/combiner models are listed in the table below. The power divider/combiner specifications are sortable for easy model selection.

If you can’t find an online resistive power divider/combiner model to meet your requirements, please contact JFW at sales@jfwindustries.com. With a wide variety of resistive and reactive power dividers/combiners, JFW has solutions to fit your specific RF signal splitting/combining application.

Frequently Asked Questions

Click the column headers to sort our online models. For your specific application, please contact JFW for assistance or use our Inquiry Form.

JFW Model #ImpedanceConfigurationFrequency StartFrequency StopRF Input PowerRF Connectors

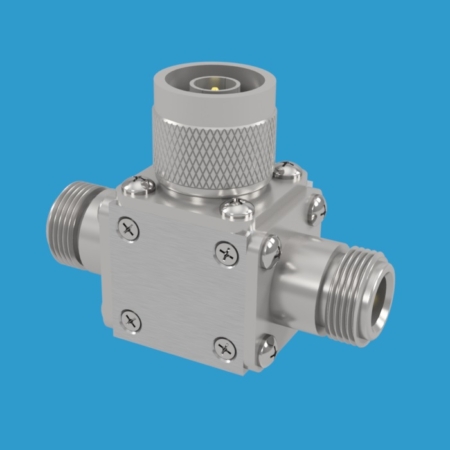

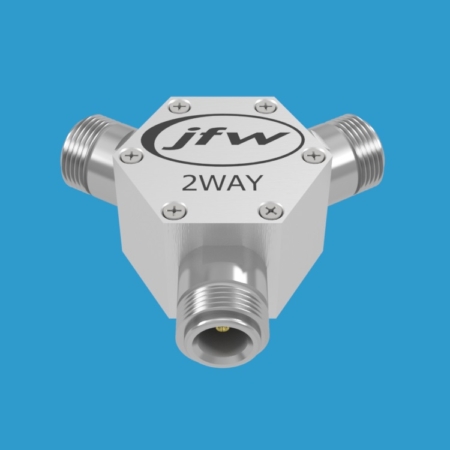

50PD-00150 Ohms2-Way0 MHz (DC)1000 MHz1 WattN Male/Female/Female

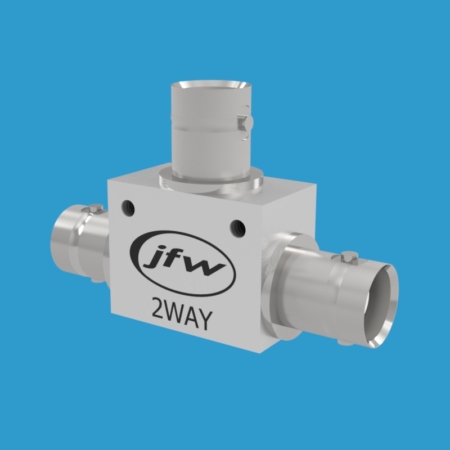

50PD-00450 Ohms2-Way0 MHz (DC)1000 MHz1 WattBNC, TNC Female
50PD-01550 Ohms2-Way0 MHz (DC)2550 MHz1 WattN Female/Female/Female, N Male/Female/Female

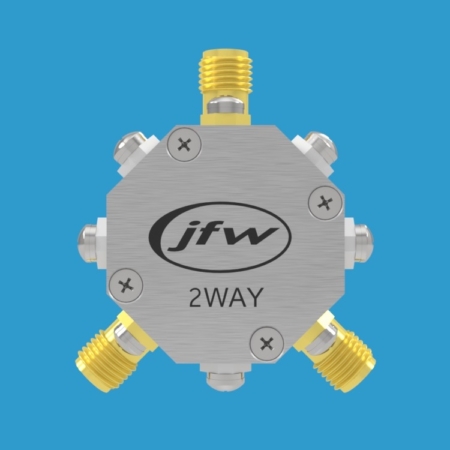

50PD-01650 Ohms2-Way0 MHz (DC)4000 MHz2 WattsSMA Female
50PD-01750 Ohms3-Way0 MHz (DC)2000 MHz2 WattsSMA Female
50PD-01850 Ohms4-Way0 MHz (DC)2000 MHz2 WattsSMA Female
50PD-02850 Ohms5-Way0 MHz (DC)1500 MHz2 WattsSMA Female
50PD-13350 Ohms2-Way0 MHz (DC)2000 MHz2 WattsBNC, N, TNC Female or Male
50PD-13450 Ohms3-Way0 MHz (DC)2000 MHz2 WattsBNC, N, TNC Male or Female

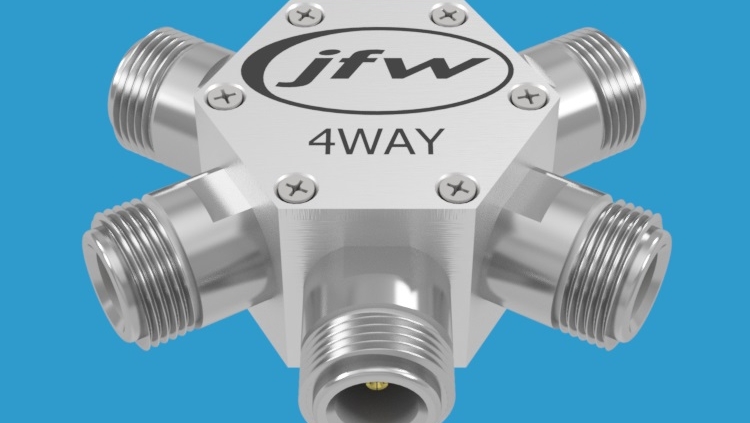

50PD-13550 Ohms4-Way0 MHz (DC)2000 MHz2 WattsBNC, N Female
50PD-13650 Ohms5-Way0 MHz (DC)2000 MHz2 WattsBNC, N Female
50PD-29250 Ohms3-Way0 MHz (DC)4000 MHz2 WattsSMA Female or Male
50PD-29350 Ohms4-Way0 MHz (DC)4000 MHz2 WattsSMA Female
50PD-33550 Ohms2-Way0 MHz (DC)3000 MHz2 WattsBNC, N, TNC Female
50PD-37950 Ohms2-Way0 MHz (DC)4000 MHz2 WattsBNC, N, TNC Female or Male
50PD-43250 Ohms2-Way0 MHz (DC)6000 MHz1 WattN Female
50PD-46950 Ohms3-Way0 MHz (DC)6000 MHz1 WattSMA Female

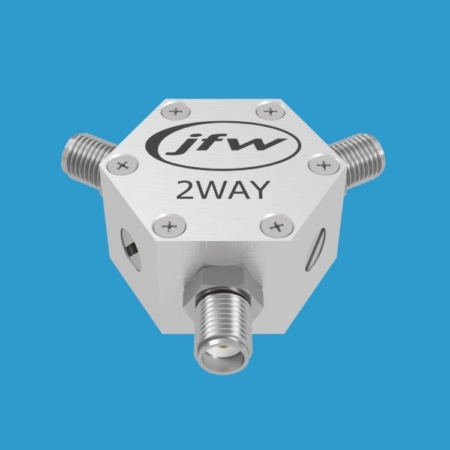

50PD-47850 Ohms2-Way0 MHz (DC)6000 MHz1 WattSMA Female
50PD-66950 Ohms3-Way0 MHz (DC)4000 MHz2 WattsN Female or Male
50PD-73250 Ohms5-Way0 MHz (DC)6000 MHz1 WattSMA Female
50PD-73450 Ohms7-Way0 MHz (DC)6000 MHz1 WattSMA Female

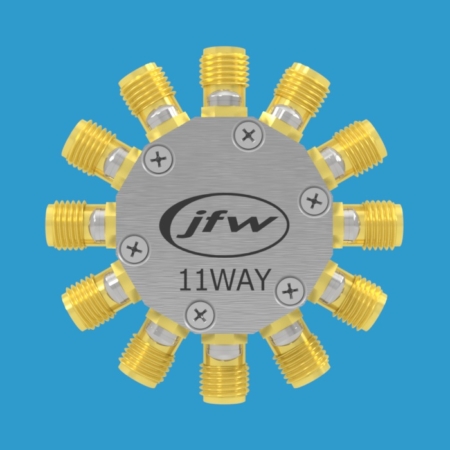

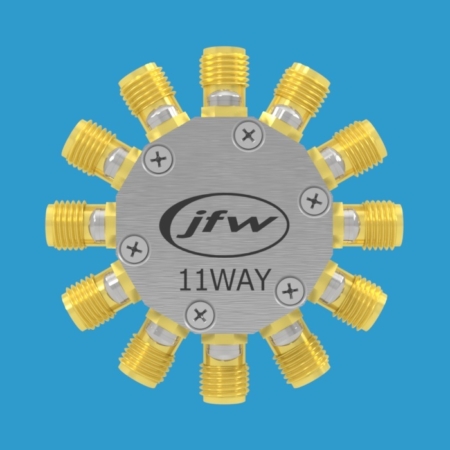

50PD-73550 Ohms11-Way0 MHz (DC)6000 MHz1 WattSMA Female
50PD-74650 Ohms8-Way0 MHz (DC)6000 MHz1 WattSMA Female
50PD-76050 Ohms9-Way0 MHz (DC)6000 MHz1 WattSMA Female

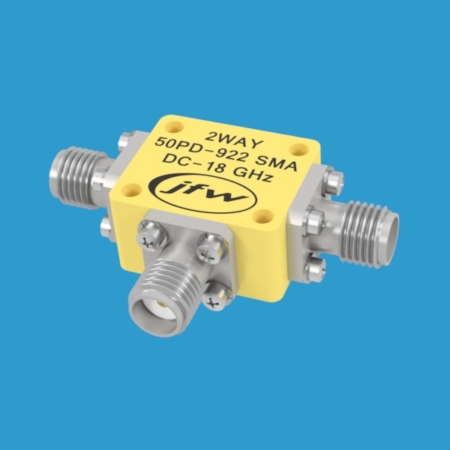

50PD-76850 Ohms2-Way0 MHz (DC)18000 MHz1 WattSMA Female
50PD-77150 Ohms4-Way0 MHz (DC)6000 MHz1 WattSMA Female

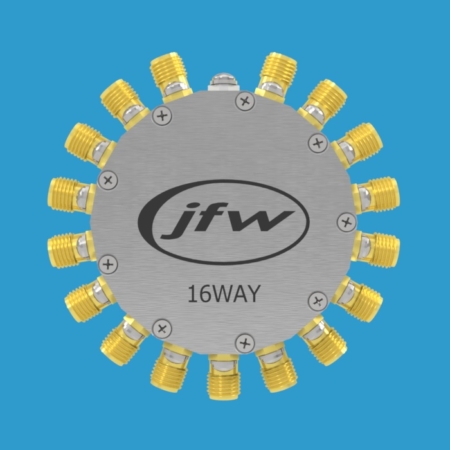

50PD-78550 Ohms16-Way0 MHz (DC)2000 MHz1 WattSMA Female
50PD-79050 Ohms6-Way0 MHz (DC)6000 MHz1 WattSMA Female

RF Path Examples for Power Dividers/Combiners
Reactive 2-Way
A to B = 3.6dB (insertion loss)
A to C = 3.6dB (insertion loss)
B to A = 3.6dB (insertion loss)
C to A = 3.6dB (insertion loss)
B to C = 20dB (isolation)
C to B = 20dB (isolation)

Resistive 2-Way
A to B = 6.5dB (insertion loss)
A to C = 6.5dB (insertion loss)
B to A = 6.5dB (insertion loss)
C to A = 6.5dB (insertion loss)
B to C = 6.5dB (insertion loss)
C to B = 6.5dB (insertion loss)
Characteristics of Resistive Power Divider/Combiner

Resistive power dividers/combiners function all the way down to DC.
Resistive Power dividers/combiners can be used to combine several signals or split a single signal.
Due to their symmetric design, the isolation of a resistive divider/combiner is equal to its insertion loss. Example: A 2-way resistive power divider/combiner has 6dB of insertion from any port to any other port. All paths have 6dB of insertion loss.
Because a resistive Power divider/combiner has identical insertion loss from any port to any other port, it acts much like a node in a mesh network.
A resistive power divider/combiner has much higher insertion loss than reactive power divider/combiner. Example: 2-way resistive = 6dB, 2-way reactive = 3dB
Some configurations such as 5-way, 7-way, and 10-way are more readily available as resistive power dividers/combiners than as reactive power dividers/combiners.
