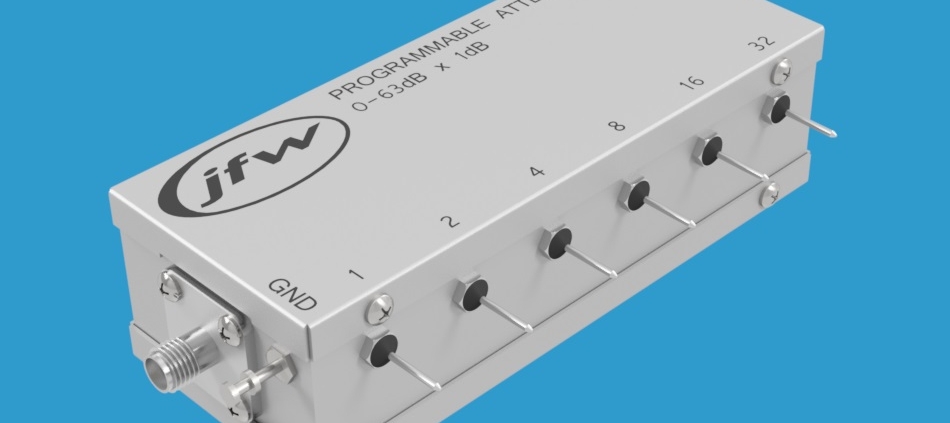

50 Ohm Relay Programmable Attenuators

JFW’s online 50 Ohm relay programmable attenuator models are listed in the table below. The relay programmable attenuator specifications are sortable for easy model selection. If you can’t find a standard programmable step attenuator model to meet your requirements, please contact JFW at sales@jfwindustries.com.

With a wide variety of attenuation ranges and attenuation step sizes, JFW has solutions to fit your specific programmable step attenuator applications. Whether you call them relay attenuators, step attenuators, programmable step attenuators, or relay programmable attenuators, JFW has been designing, manufacturing, and delivering relay programmable attenuators for over 25 years. We specialize in solid-state and relay programmable attenuators for applications from benchtop RF testing to computer controlled automated RF testing.

Frequently Asked Questions

Click the column headers to sort our online models. For your specific application, please contact JFW for assistance or use our Inquiry Form.

JFW Model #ImpedancedB TotaldB StepFrequency StartFrequency StopSwitching SpeedRF Input PowerControlRF Connectors

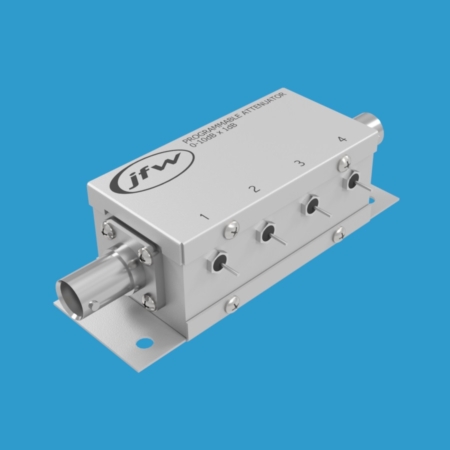

50P-003350 Ohms10 dB1 dB0 MHz (DC)1500 MHz6 mS2 Watts+12 VdcBNC, N, SMA, TNC

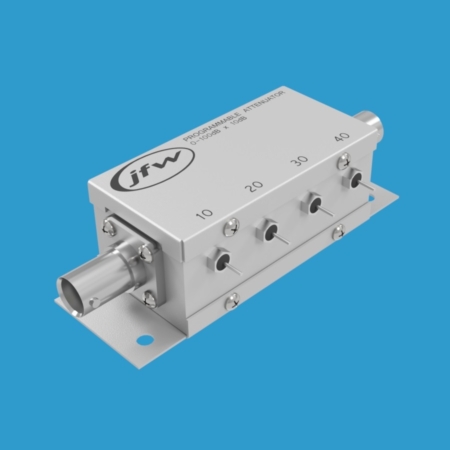

50P-003450 Ohms100 dB10 dB0 MHz (DC)1500 MHz6 mS1 Watt+12 VdcBNC, N, SMA, TNC

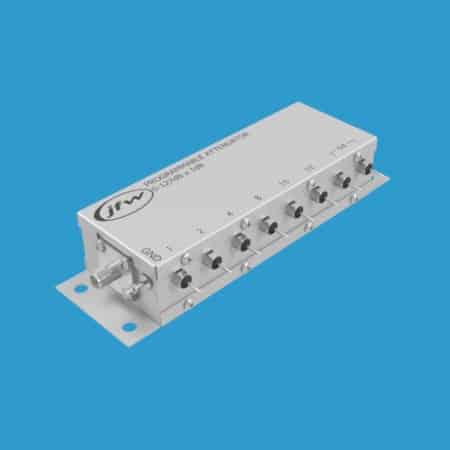

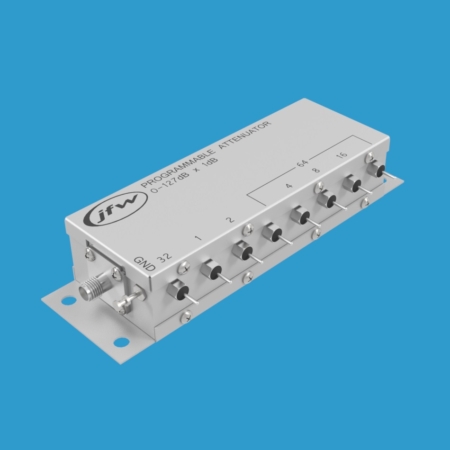

50P-053150 Ohms127 dB1 dB0 MHz (DC)1500 MHz6 mS1 Watt+12 VdcBNC, N, SMA, TNC
50P-054250 Ohms10 dB1 dB0 MHz (DC)2800 MHz6 mS2 Watts+12 VdcBNC, N, SMA, TNC
50P-054350 Ohms90 dB10 dB0 MHz (DC)2800 MHz6 mS1 Watt+12 VdcBNC, N, SMA, TNC
50P-059150 Ohms85 dB1 dB0 MHz (DC)3000 MHz6 ms1 Watt+12 VdcN, SMA

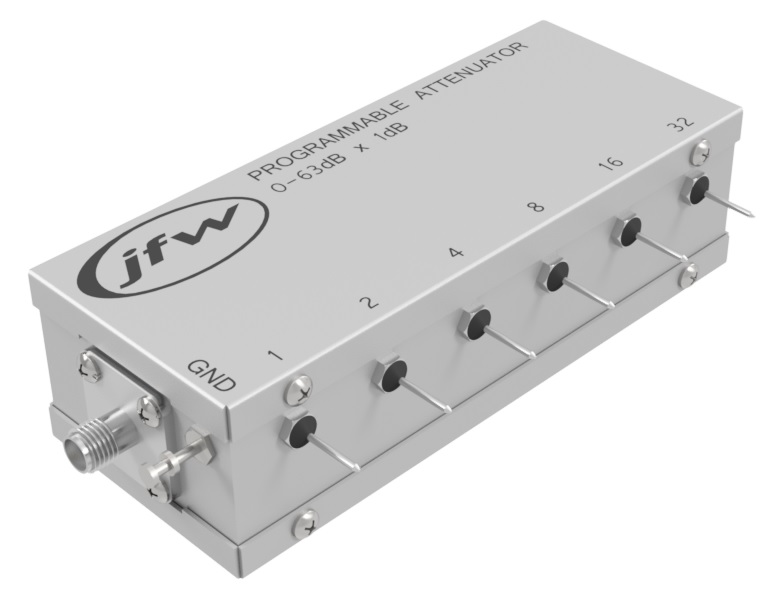

50P-097550 Ohms63 dB1 dB0 MHz (DC)1000 MHz6 mS0.5 Watts+12 VdcBNC, N, SMA, TNC

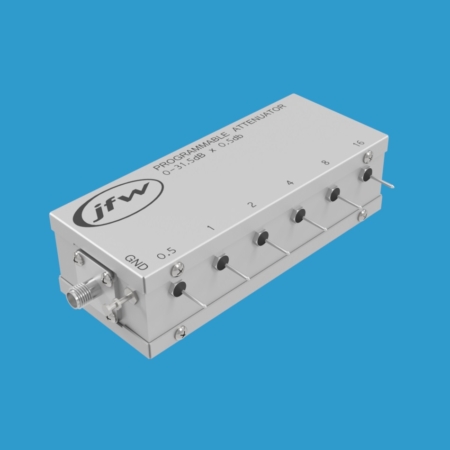

50P-112650 Ohms31.5 dB0.5 dB0 MHz (DC)1000 MHz6 mS1 Watt+12 VdcBNC, N, SMA, TNC

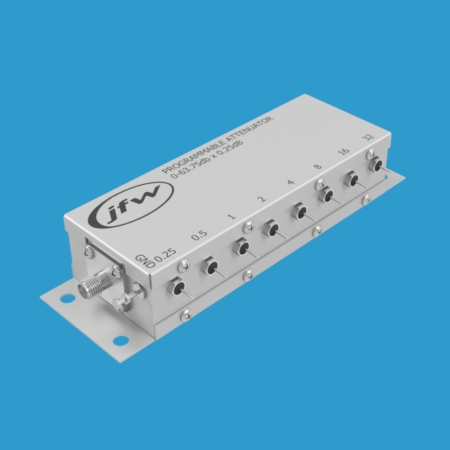

50P-112850 Ohms63.75 dB0.25 dB0 MHz (DC)2000 MHz6 mS0.5 Watts+12 VdcSMA

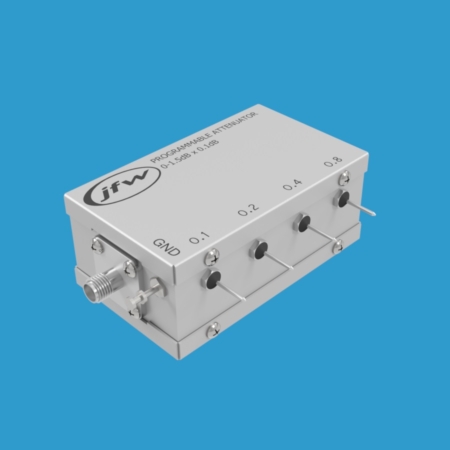

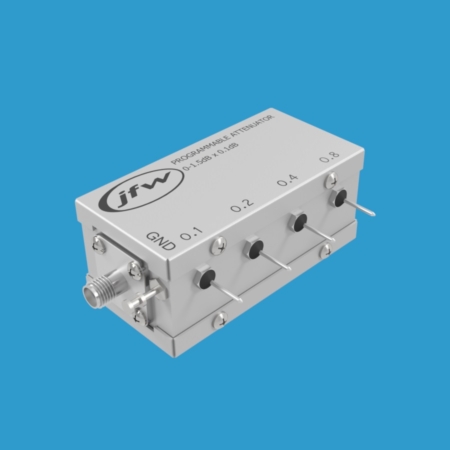

50P-113950 Ohms1.5 dB0.1 dB0 MHz (DC)2000 MHz6 mS1 Watt+12 VdcSMA

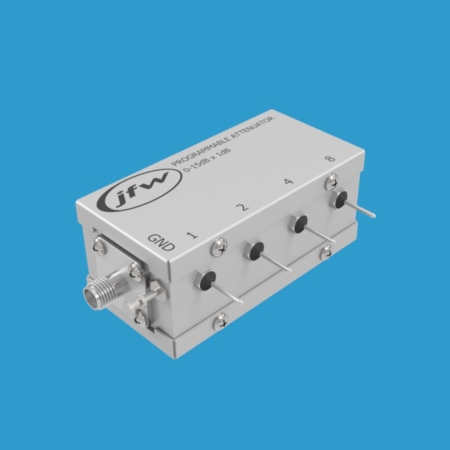

50P-117950 Ohms15 dB1 dB0 MHz (DC)2000 MHz6 mS1 Watt+12 VdcSMA
50P-120750 Ohms63 dB1 dB0 MHz (DC)2500 MHz6 mS0.5 WattsTTLBNC, N, SMA, TNC
50P-120850 Ohms15 dB1 dB0 MHz (DC)2500 MHz6 mS0.5 Watts+12 VdcBNC, N, SMA, TNC
50P-120950 Ohms15.5 dB0.5 dB0 MHz (DC)2500 MHz6 mS0.5 Watts+12 VdcBNC, N, SMA, TNC
50P-121050 Ohms31 dB1 dB0 MHz (DC)2500 MHz6 mS0.5 Watts+12 VdcBNC, N, SMA, TNC
50P-121150 Ohms31.5 dB0.5 dB0 MHz (DC)2500 MHz6 mS0.5 Watts+12 VdcBNC, N, SMA, TNC

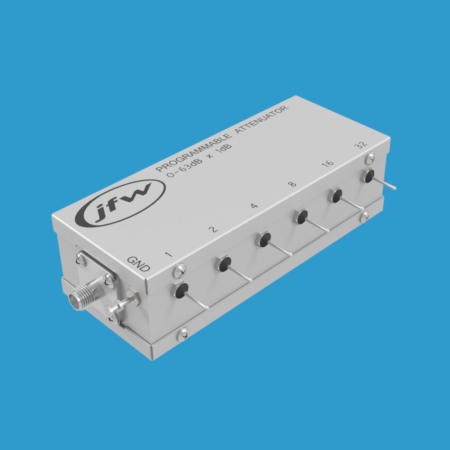

50P-121250 Ohms63 dB1 dB0 MHz (DC)2500 MHz6 mS0.5 Watts+12 VdcBNC, N, SMA, TNC
50P-122450 Ohms63.5 dB0.5 dB0 MHz (DC)3000 MHz6 mS1 Watt+12 VdcSMA
50P-149950 Ohms15 dB1 dB0 MHz (DC)500 MHz6 mS2 Watts+12 VdcBNC, N, SMA, TNC

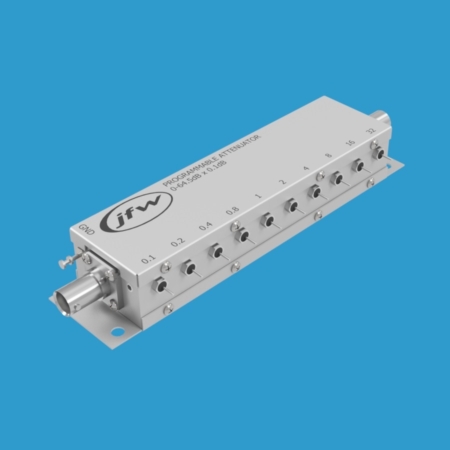

50P-163350 Ohms64.5 dB0.1 dB0 MHz (DC)1000 MHz6 mS1 Watt+12 VdcBNC, N, SMA, TNC
50P-168350 Ohms70 dB10 dB0 MHz (DC)2500 MHz6 mS0.5 Watts+12 VdcBNC, N, SMA, TNC
50P-170550 Ohms64.5 dB0.1 dB0 MHz (DC)200 MHz6 mS1 Watt+12 VdcBNC, N, SMA, TNC

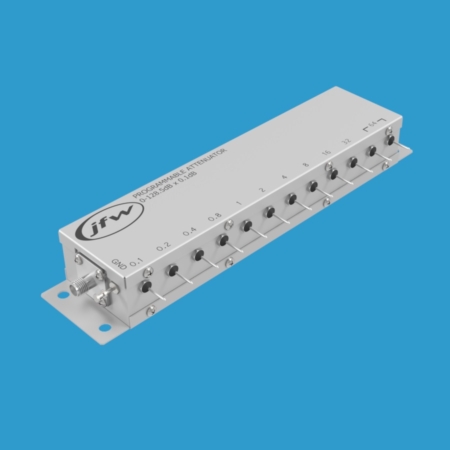

50P-171450 Ohms128.5 dB0.1 dB0 MHz (DC)100 MHz6 mS1 Watt+12 VdcN, SMA, TNC
50P-175850 Ohms95 dB1 dB0 MHz (DC)1000 MHz6 mS0.5 Watts+12 VdcBNC, N, SMA, TNC

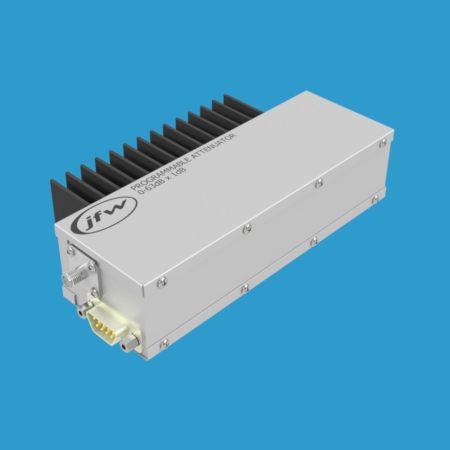

50P-184950 Ohms63 dB1 dB0 MHz (DC)2700 MHz10 mS10 Watts+12 VdcBNC, N, SMA, TNC
50P-193050 Ohms63 dB1 dB0 MHz (DC)200 MHz6 mS10 WattsTTLBNC, N, SMA, TNC
50P-194150 Ohms15 dB1 dB0 MHz (DC)3000 MHz10 mS10 Watts+12 VdcBNC, N, SMA, TNC
50P-195350 Ohms120 dB10 dB0 MHz (DC)2500 MHz6 mS1 Watt+12 VdcBNC, N, SMA, TNC

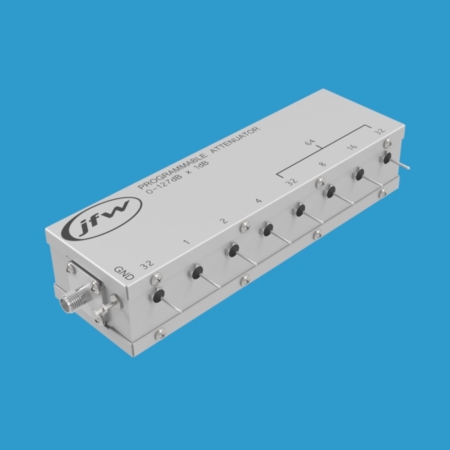

50P-197450 Ohms127 dB1 dB0 MHz (DC)250 MHz6 mS2 Watts+12 VdcBNC, N, SMA, TNC
50P-197550 Ohms127 dB1 dB0 MHz (DC)500 MHz6 mS2 Watts+12 VdcBNC, N, SMA, TNC
50P-197650 Ohms127 dB1 dB0 MHz (DC)1000 MHz6 mS2 Watts+12 VdcBNC, N, SMA, TNC
50P-197850 Ohms63 dB1 dB0 MHz (DC)2700 MHz6 mS2 Watts+12 VdcSMA
50P-203350 Ohms1.5 dB0.1 dB0 MHz (DC)1000 MHz6 mS1 Watt+12 VdcN, SMA, TNC

The programmable attenuator models listed in the table are only our online models. JFW has over 2045 different models of programmable attenuators. If you can’t find a model in the table that fits your exact 50 Ohm relay programmable attenuator requirement, please contact JFW. We do not charge NRE’s for new 50 Ohm relay programmable attenuator models. We pride ourselves in the ability to offer custom relay programmable attenuator models with the same pricing and delivery as our catalog relay programmable attenuator models. Send in a request with a list of your required RF specifications and JFW will design a 50 Ohm relay programmable attenuator model that meets your specific requirements.

Relay step attenuators are controlled with DC voltages (+5Vdc, +12Vdc, +15Vdc, +24Vdc, +28Vdc, etc.) applied to the control pins. JFW can also provide our relay step attenuators with TTL control and a DC connector. Over 20 years ago JFW moved from making just programmable attenuators to also making RF test systems. Since JFW manufactures relay programmable attenuators, we are able to use our own 50 Ohm relay programmable attenuators inside of our RF test systems. That allows JFW to design and manufacture custom programmable attenuator test systems with no NRE’s and quick delivery times. Send us a block diagram of your programmable attenuator assembly and JFW will respond with a ROM quote (rough order of magnitude) quote in 1-2 days. Please visit our test systems web page for more details on all of the RF test systems that JFW offers.
