50 Ohm Electro-Mechanical (Reflective)

JFW’s online 50 Ohm electro-mechanical RF switch models are listed in the table below. The RF switch specifications are sortable for easy model selection. If you can’t find a standard 50 Ohm electro-mechanical RF switch model to meet your requirements, please contact JFW at sales@jfwindustries.com.

With our extensive line of solid-state and electro-mechanical RF switch models, JFW has solutions to fit your specific coaxial RF switch applications. Whether you are performing benchtop testing or computer automated testing, JFW’s electro-mechanical RF switches have the proven reliability needed for your RF and microwave testing.

Frequently Asked Questions

Click the column headers to sort our online models. For your specific application, please contact JFW for assistance or use our Inquiry Form.

JFW Model #ImpedanceSwitch ConfigSwitch TypeFrequency StartFrequency StopSwitching SpeedRF ConnectorsControl

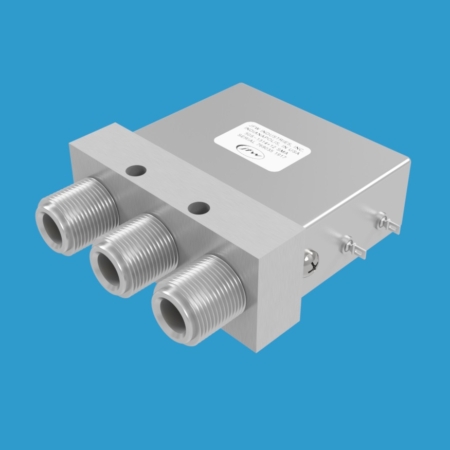

50S-1314+XX50 Ohms1P2TFailsafe, Reflective0 MHz (DC)12.4 GHz20 mSN+12, +15, +24, +28 Vdc

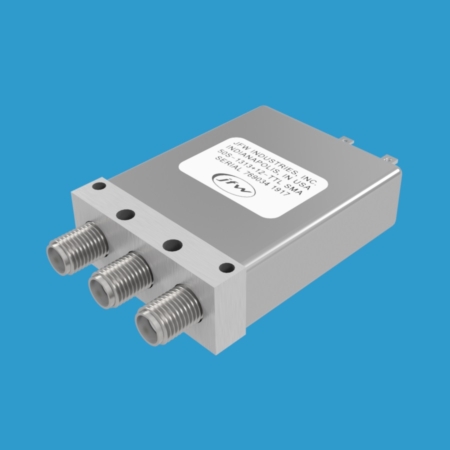

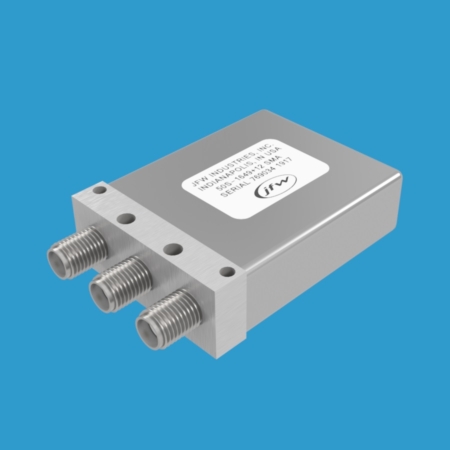

50S-1313+XX-TTL50 Ohms1P2TFailsafe, Reflective0 MHz (DC)18 GHz15 mSSMATTL

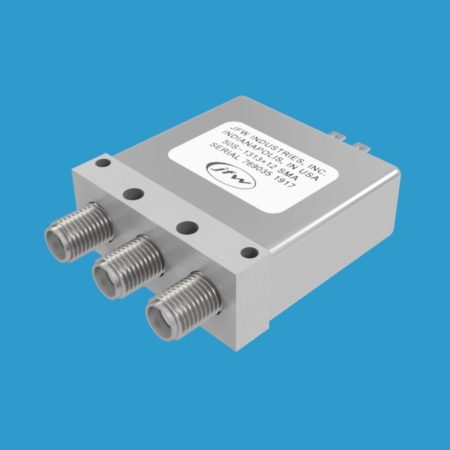

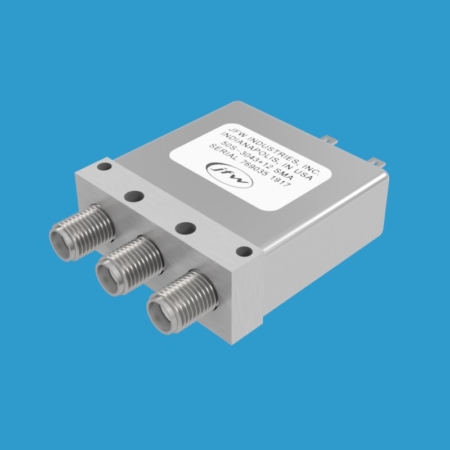

50S-1313+XX50 Ohms1P2TFailsafe, Reflective0 MHz (DC)18 GHz15 mSSMA+12, +15, +24, +28 Vdc

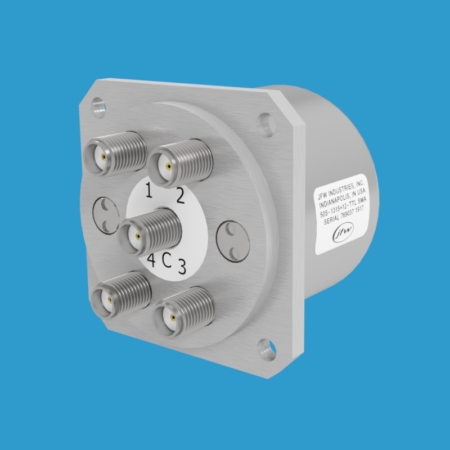

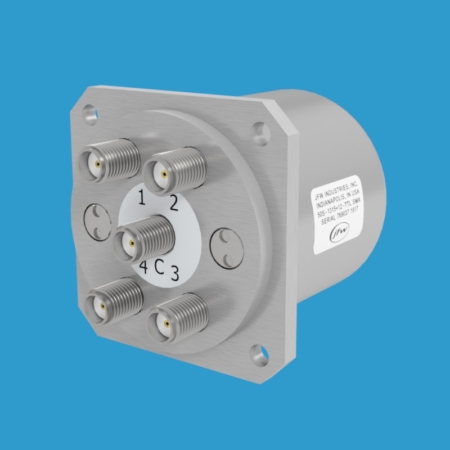

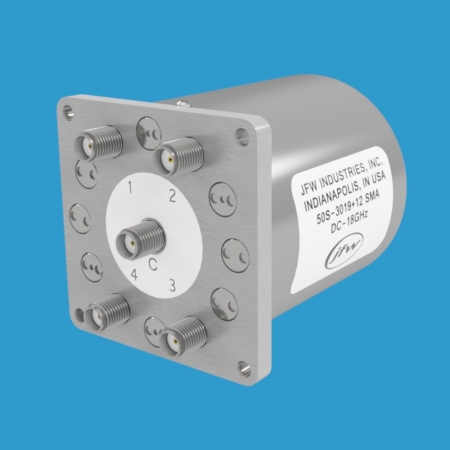

50S-1315+XX50 Ohms1P4TNormally Open, Reflective0 MHz (DC)18 GHz20 mSSMA+12, +15, +24, +28 Vdc
50S-1315+XX-TTL50 Ohms1P4TNormally Open, Reflective0 MHz (DC)18 GHz20 mSSMATTL
50S-1316+XX50 Ohms1P6TNormally Open, Reflective0 MHz (DC)18 GHz20 mSSMA+12, +15, +24, +28 Vdc
50S-1316+XX-TTL50 Ohms1P6TNormally Open, Reflective0 MHz (DC)18 GHz20 mSSMATTL
50S-1317+XX50 Ohms1P8TNormally Open, Reflective0 MHz (DC)18 GHz15 mSSMA+12, +15, +24, +28 Vdc
50S-1317+XX-TTL50 Ohms1P8TNormally Open, Reflective0 MHz (DC)18 GHz15 mSSMATTL

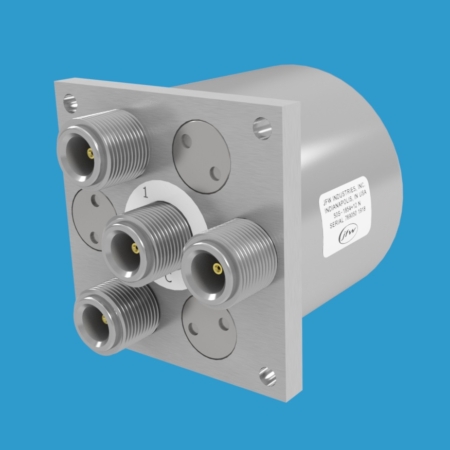

50S-1360+XX50 Ohms1P3TNormally Open, Reflective0 MHz (DC)18 GHz20 mSSMA+12, +15, +24, +28 Vdc
50S-1360+XX-TTL50 Ohms1P3TNormally Open, Reflective0 MHz (DC)18 GHz20 mSSMATTL
50S-1361+XX50 OhmsX-ferTransfer Switch0 MHz (DC)18 GHz20 mSSMA+12, +15, +24, +28 Vdc
50S-1361+XX-TTL50 OhmsX-ferTransfer Switch0 MHz (DC)18 GHz20 mSSMATTL

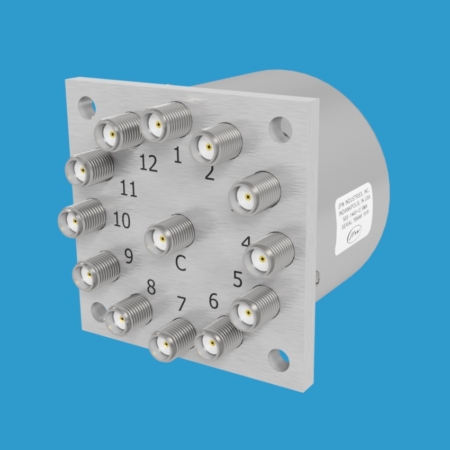

50S-1443+XX50 Ohms1P12TNormally Open, Reflective0 MHz (DC)18 GHz15 mSSMA+12, +15, +28 Vdc
50S-1634+XX50 Ohms1P6TNormally Open, Reflective0 MHz (DC)40 GHz20 mS2.9 mm+12, +15, +24, +28 Vdc
50S-1772+XX50 Ohms1P2TFailsafe, Reflective0 MHz (DC)40 GHz15 mS2.9 mm+12, +15, +24, +28 Vdc
50S-1773+XX50 Ohms1P4TNormally Open, Reflective0 MHz (DC)40 GHz20 mS2.9 mm+12, +15, +24, +28 Vdc
50S-1854+XX50 Ohms1P3TNormally Open, Reflective0 MHz (DC)12.4 GHz20 mSN+12, +15, +24, +28 Vdc

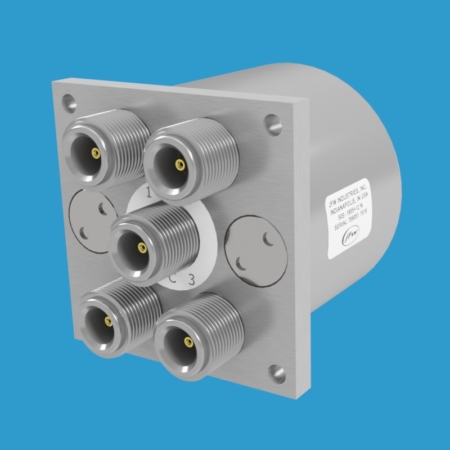

50S-1855+XX50 Ohms1P4TNormally Open, Reflective0 MHz (DC)12.4 GHz20 mSN+12, +15, +24, +28 Vdc

The 50 Ohm electro-mechanical RF switch models listed in the table are only our online models. If you can’t find a model in the table that fits your exact 50 Ohm electro-mechanical RF switch requirement, please contact JFW. With so many options (DC supply voltage levels, TTL control, RoHS, Non-RoHS, self-terminating, indicators) picking out an electro-mechanical RF switch can be frustrating and time consuming. Email in your RF switch requirements and let us pick out a model and respond with a full quote. If you have any questions, one of our RF engineers can call you and answer your specific questions

Common Electro-mechanical RF switch terminology…

Normally Open: With no power applied, the common port is not connected to any of the output ports.

N.O. Common abbreviation for Normally Open.

Failsafe: With no power applied, the common port is connected to one of the output ports.

Reflective: Switch ports are high impedance (open) when ports are turned off.

Absorptive: Ports that are turned off are internally terminated with the proper impedance. (i.e. 50 Ohm impedance models are internally terminated with 50 Ohms.)

Self-terminating: This term is used interchangeably with “absorptive”. Ports that are turned off are internally terminated with the proper impedance. (i.e. 50 Ohm impedance models are internally terminated with 50 Ohms.)

Hot Switching: The switch changes state while a RF signal is still being applied to the switch.

Cold Switching: No RF signal is applied to the RF switch while the RF switch is changes states.

Switching Speed: Port turning ON = 50% TTL control to 90% of the RF signal. Port turning OFF = 50% TTL control to 10% of the RF signal.

Rise Time: Port turning ON = 10% of the RF signal to 90% of the RF signal.

Fall Time: Port turning OFF = 90% of the RF signal to 10% of the RF signal.
