75 Ohm Solid-State RF Switches
75 Ohm Solid-State RF SwitchesJFW’s online absorptive 75 Ohm solid-state RF switch models are listed in the table below. Whether you are performing benchtop testing or computer automated testing, JFW’s solid-state switches have the proven reliability needed for your RF and microwave testing. For your specific application, please contact JFW or use our Inquiry Form.
Absorptive RF Switch
The term absorptive RF switch refers to the state of the unused ports. For 75 Ohm RF switches, absorptive unused ports are internally terminated (i.e. self-terminating) at an impedance of 75 Ohms.
RF Switch Terminology and FAQs
| JFW Model # | Impedance | Switch Config | Switch Type | Frequency Start | Frequency Stop | Switching Speed | RF Input Power | Isolation | Control Logic |
|---|---|---|---|---|---|---|---|---|---|
| 75S-385 | 75 Ohm | 1P2T | Absorptive | 5 MHz | 1000 MHz | 10 uS | +10 dBm | 75 dB | TTL |
| 75S-387 | 75 Ohm | 1P8T | Absorptive | 5 MHz | 1000 MHz | 10 uS | +10 dBm | 65 dB | TTL |
| 75S-386 | 75 Ohm | 1P4T | Absorptive | 5 MHz | 1000 MHz | 10 uS | +10 dBm | 70 dB | TTL |
| 75S-264 | 75 Ohm | 1P16T | Absorptive | 20 MHz | 1000 MHz | 50 uS | +20 dBm | 55 dB | TTL |
| 75S-327 | 75 Ohm | 1P4T | Absorptive | 5 MHz | 1000 MHz | 50 uS | +20 dBm | 55 dB | TTL |
| 75S-332 | 75 Ohm | 1P2T | Absorptive | 950 MHz | 2150 MHz | 10 uS | +30 dBm | 70 dB | TTL |
| 75S-333 | 75 Ohm | 1P4T | Absorptive | 950 MHz | 2150 MHz | 10 uS | +30 dBm | 70 dB | TTL |
| 75S-362 | 75 Ohm | 1P5T | Absorptive | 5 MHz | 2150 MHz | 10 uS | +30 dBm | 50 dB | TTL |
| 75S-364 | 75 Ohm | 1P8T | Absorptive | 400 MHz | 2200 MHz | 10 uS | +30 dBm | 65 dB | TTL |
| 75S-365 | 75 Ohm | 1P2T | Absorptive | 5 MHz | 2150 MHz | 10 uS | +20 dBm | 70 dB | TTL |
| 75S-366 | 75 Ohm | 1P4T | Absorptive | 5 MHz | 2150 MHz | 10 uS | +20 dBm | 70 dB | TTL |
| 75S-371 | 75 Ohm | 1P8T | Absorptive | 5 MHz | 2150 MHz | 10 uS | +20 dBm | 60 dB | TTL |
| 75S-372 | 75 Ohm | 1P6T | Absorptive | 5 MHz | 1000 MHz | 10 uS | +20 dBm | 60 dB | TTL |
| 75S-374 | 75 Ohm | 1P6T | Absorptive | 5 MHz | 2150 MHz | 10 uS | +20 dBm | 65 dB | TTL |
- Display 15 Products per page
-

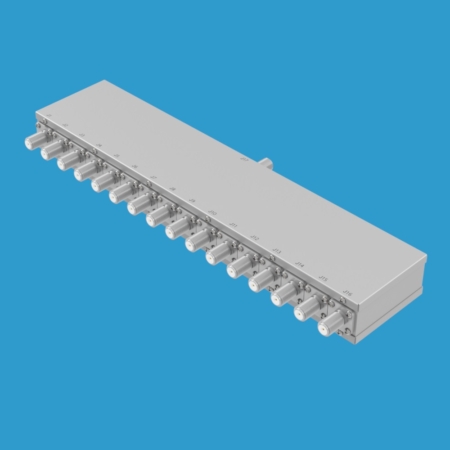

1P16T RF Switch 20-1000 MHz | 75S-264
JFW Model #: 75S-264
Impedance: 75 Ohms
Switch Configuration: 1P16T solid-state RF switch
Switch Type: Absorptive (i.e. Self-terminating)
Frequency Start: 20 MHz
Frequency Stop: 1000 MHz
Switching Speed: 50 uS
RF Input Power: +20 dBm
Isolation: 55 dB
Control Logic: TTL
DC Supply: +5 Vdc, +15 Vdc, -15 Vdc
Documentation: Data Sheet | Drawing -

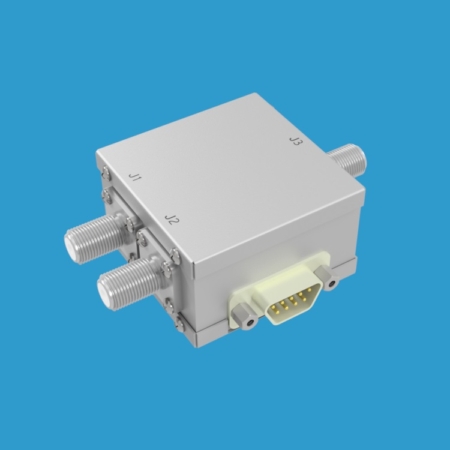

1P2T RF Switch 5-1000 MHz | 75S-385
JFW Model #: 75S-385
Impedance: 75 Ohms
Switch Configuration: 1P2T solid-state RF switch
Switch Type: Absorptive (i.e. Self-terminating)
Frequency Start: 5 MHz
Frequency Stop: 1000 MHz
Switching Speed: 10 uS
RF Input Power: +10 dBm
Isolation: 75 dB
Control Logic: TTL
DC Supply: +12 Vdc
Documentation: Data Sheet | Drawing -
1P2T RF Switch 5-2150 MHz | 75S-365
JFW Model #: 75S-365
Impedance: 75 Ohms
Switch Configuration: 1P2T solid-state RF switch
Switch Type: Absorptive (i.e. Self-terminating)
Frequency Start: 5 MHz
Frequency Stop: 2150 MHz
Switching Speed: 10 uS
RF Input Power: +20 dBm
Isolation: 70 dB
Control Logic: TTL
DC Supply: +12 Vdc
Documentation: Data Sheet | Drawing -
1P2T RF Switch 950-2150 MHz | 75S-332
JFW Model #: 75S-332
Impedance: 75 Ohms
Switch Configuration: 1P2T solid-state RF switch
Switch Type: Absorptive (i.e. Self-terminating)
Frequency Start: 950 MHz
Frequency Stop: 2150 MHz
Switching Speed: 10 uS
RF Input Power: +30 dBm
Isolation: 70 dB
Control Logic: TTL
DC Supply: +12 Vdc
Documentation: Data Sheet | Drawing -

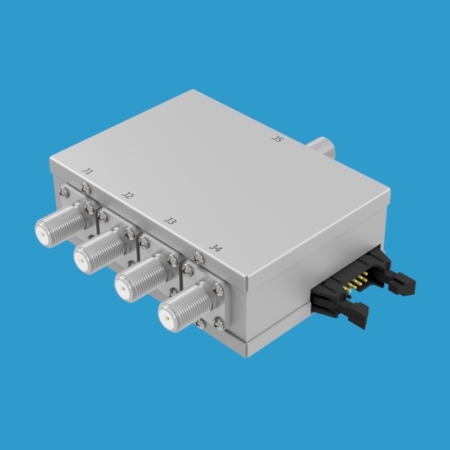

1P4T RF Switch 5-1000 MHz | 75S-327
JFW Model #: 75S-327
Impedance: 75 Ohms
Switch Configuration: 1P4T solid-state RF switch
Switch Type: Absorptive (i.e. Self-terminating)
Frequency Start: 5 MHz
Frequency Stop: 1000 MHz
Switching Speed: 50 uS
RF Input Power: +20 dBm
Isolation: 55 dB
Control Logic: TTL
DC Supply: +5 Vdc, +15 Vdc
Documentation: Data Sheet | Drawing -

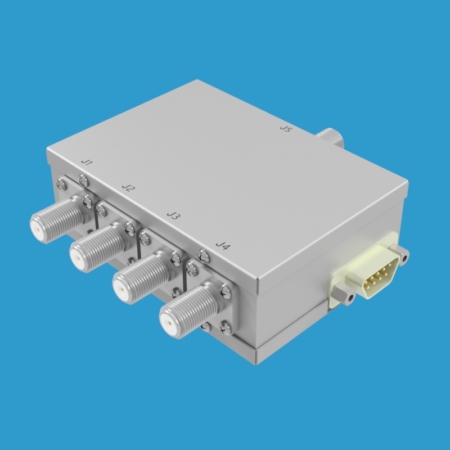

1P4T RF Switch 5-1000 MHz | 75S-386
JFW Model #: 75S-386
Impedance: 75 Ohms
Switch Configuration: 1P4T solid-state RF switch
Switch Type: Absorptive (i.e. Self-terminating)
Frequency Start: 5 MHz
Frequency Stop: 1000 MHz
Switching Speed: 10 uS
RF Input Power: +10 dBm
Isolation: 70 dB
Control Logic: TTL
DC Supply: +12 Vdc
Documentation: Data Sheet | Drawing -
1P4T RF Switch 5-2150 MHz | 75S-366
JFW Model #: 75S-366
Impedance: 75 Ohms
Switch Configuration: 1P4T solid-state RF switch
Switch Type: Absorptive (i.e. Self-terminating)
Frequency Start: 5 MHz
Frequency Stop: 2150 MHz
Switching Speed: 10 uS
RF Input Power: +20 dBm
Isolation: 70 dB
Control Logic: TTL
DC Supply: +12 Vdc
Documentation: Data Sheet | Drawing -
1P4T RF Switch 950-2150 MHz | 75S-333
JFW Model #: 75S-333
Impedance: 75 Ohms
Switch Configuration: 1P4T solid-state RF switch
Switch Type: Absorptive (i.e. Self-terminating)
Frequency Start: 950 MHz
Frequency Stop: 2150 MHz
Switching Speed: 10 uS
RF Input Power: +30 dBm
Isolation: 70 dB
Control Logic: TTL
DC Supply: +12 Vdc
Documentation: Data Sheet | Drawing -

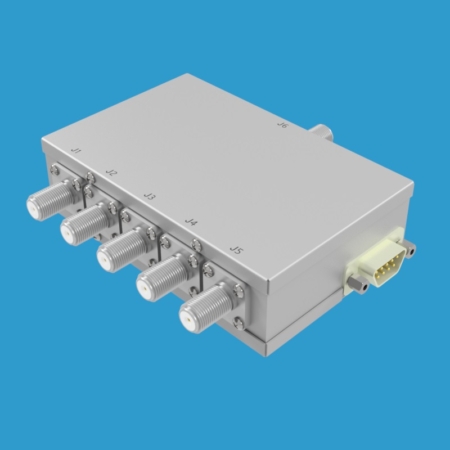

1P5T RF Switch 5-2150 MHz | 75S-362
JFW Model #: 75S-362
Impedance: 75 Ohms
Switch Configuration: 1P5T solid-state RF switch
Switch Type: Absorptive (i.e. Self-terminating)
Frequency Start: 5 MHz
Frequency Stop: 2150 MHz
Switching Speed: 10 uS
RF Input Power: +30 dBm
Isolation: 50 dB
Control Logic: TTL
DC Supply: +5 Vdc, +24 Vdc
Documentation: Data Sheet | Drawing -

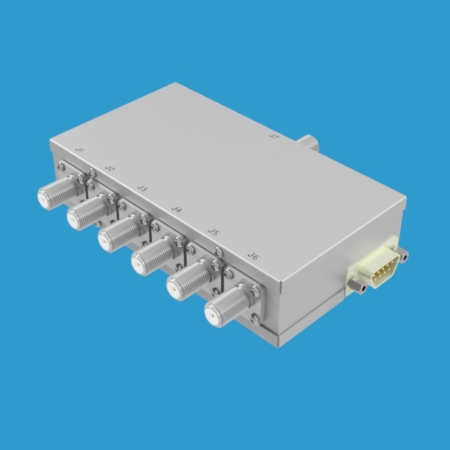

1P6T RF Switch 5-1000 MHz | 75S-372
JFW Model #: 75S-372
Impedance: 75 Ohms
Switch Configuration: 1P6T solid-state RF switch
Switch Type: Absorptive (i.e. Self-terminating)
Frequency Start: 5 MHz
Frequency Stop: 1000 MHz
Switching Speed: 10 uS
RF Input Power: +20 dBm
Isolation: 60 dB
Control Logic: TTL
DC Supply: +5 Vdc, +12 Vdc
Documentation: Data Sheet | Drawing -
1P6T RF Switch 5-2150 MHz | 75S-374
JFW Model #: 75S-374
Impedance: 75 Ohms
Switch Configuration: 1P6T solid-state RF switch
Switch Type: Absorptive (i.e. Self-terminating)
Frequency Start: 5 MHz
Frequency Stop: 2150 MHz
Switching Speed: 10 uS
RF Input Power: +20 dBm
Isolation: 65 dB
Control Logic: TTL
DC Supply: +5 Vdc, +12 Vdc
Documentation: Data Sheet | Drawing -

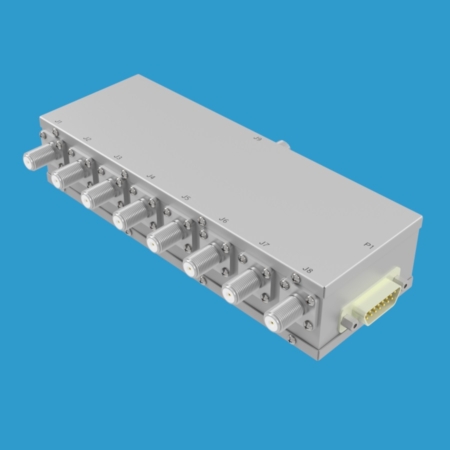

1P8T RF Switch 400-2200 MHz | 75S-364
JFW Model #: 75S-364
Impedance: 75 Ohms
Switch Configuration: 1P8T solid-state RF switch
Switch Type: Absorptive (i.e. Self-terminating)
Frequency Start: 400 MHz
Frequency Stop: 2200 MHz
Switching Speed: 10 uS
RF Input Power: +30 dBm
Isolation: 65 dB
Control Logic: TTL
DC Supply: +12 Vdc
Documentation: Data Sheet | Drawing -
1P8T RF Switch 5-1000 MHz | 75S-387
JFW Model #: 75S-387
Impedance: 75 Ohms
Switch Configuration: 1P8T solid-state RF switch
Switch Type: Absorptive
Frequency Start: 5 MHz
Frequency Stop: 1000 MHz
Switching Speed: 10 uS
RF Input Power: +10 dBm
Isolation: 65 dB
Control Logic: TTL
DC Supply: +12 Vdc
Documentation: Data Sheet | Drawing -
1P8T RF Switch 5-2150 MHz | 75S-371
JFW Model #: 75S-371
Impedance: 75 Ohms
Switch Configuration: 1P8T solid-state RF switch
Switch Type: Absorptive (i.e. Self-terminating)
Frequency Start: 5 MHz
Frequency Stop: 2150 MHz
Switching Speed: 10 uS
RF Input Power: +20 dBm
Isolation: 60 dB
Control Logic: TTL
DC Supply: +12 Vdc
Documentation: Data Sheet | Drawing
