High Power Solid-State

JFW’s online 50 Ohm high power solid-state RF switch models are listed in the table below. The high power RF switch specifications are sortable for easy model selection.

If you can’t find a standard 50 Ohm high power solid-state RF switch model to meet your requirements, please contact JFW at sales@jfwindustries.com.

JFW has been designing, manufacturing, and delivering high power RF switches for over 20 years. With our extensive line of high power solid-state RF switch models, JFW has solutions to fit your specific high power coaxial switch applications. If you need a coaxial T/R switch for high power hot switching, JFW’s solid-state high power switches have the proven reliability that you demand.

Frequently Asked Questions

Click the column headers to sort our online models. For your specific application, please contact JFW for assistance.

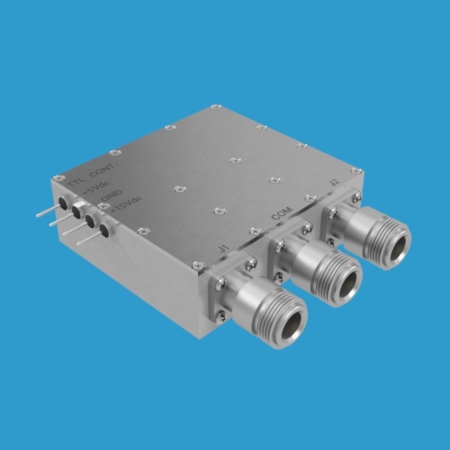

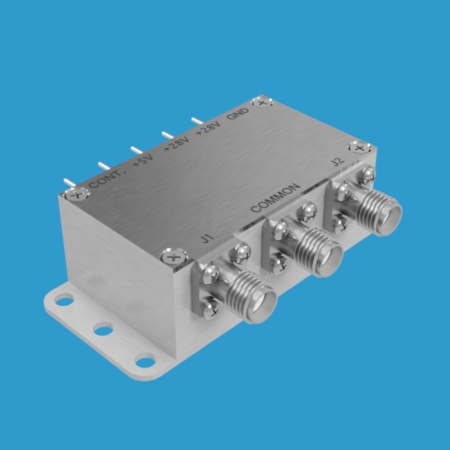

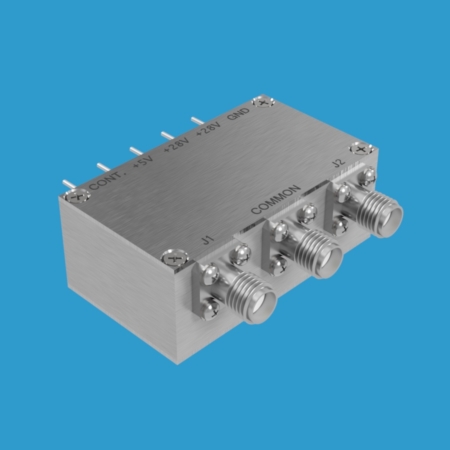

JFW Model #Switch ConfigSwitch TypeFrequency StartFrequency StopSwitching SpeedRF Input PowerIsolation
50S-12561P4TReflective30 MHz512 MHz60 uS125 Watts (Cold) 20 Watts (Hot)50 dB

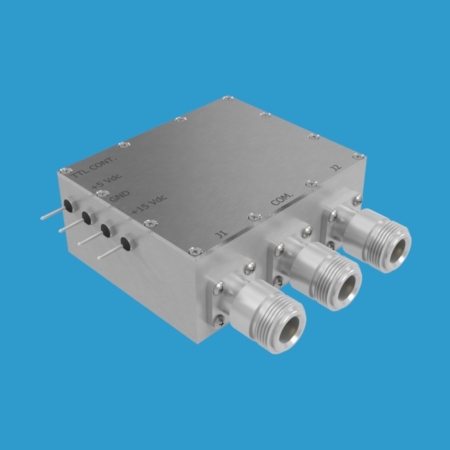

50S-12681P2TReflective100 MHz500 MHz40 uS100 Watts (Cold) 100 Watts (Hot)55 dB

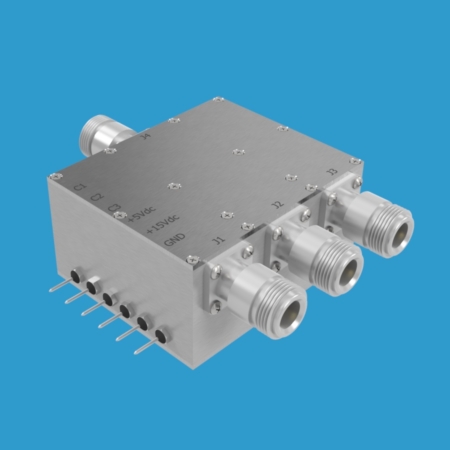

50S-14071P3TReflective100 MHz500 MHz40 uS250 Watts (Cold) 20 Watts (Hot)50 dB
50S-14221P2TReflective100 MHz500 MHz40 uS250 Watts (Cold) 100 Watts (Hot)55 dB
50S-15241P6TReflective100 MHz500 MHz40 uS100 Watts (Cold) 20 Watts (Hot)50 dB
50S-15251P4TReflective100 MHz500 MHz40 uS100 Watts (Cold) 20 Watts (Hot)50 dB
50S-15541P2TReflective20 MHz500 MHz40 uS150 Watts (Hot)50 dB
50S-15591P2TReflective20 MHz1000 MHz40 uS150 Watts (Cold) 50 Watts (Hot)40 dB
50S-18011P4TReflective30 MHz512 MHz40 uS200 Watts (Cold) 20 Watts (Hot)50 dB
50S-18201P2TReflective800 MHz2700 MHz10 uS100 Watts (Cold) 30 Watts (Hot)60 dB
50S-18211P2TReflective800 MHz3000 MHz10 uS75 Watts (Cold) 30 Watts (Hot)55 dB
50S-18321P2TReflective960 MHz1300 MHz10 uS200 Watts (Cold)40 dB

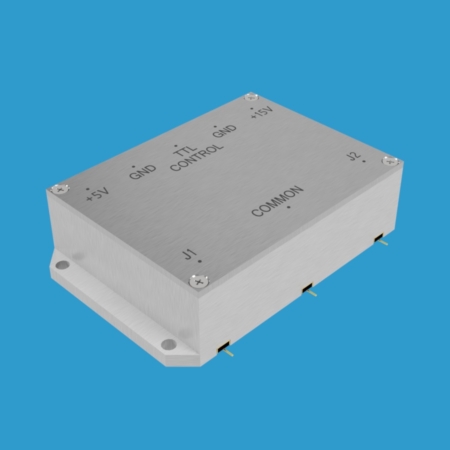

50S-18871P2TReflective & SMT225 MHz400 MHz10 uS100 Watts (Cold) 20 Watts (Hot)45 dB

The 50 Ohm high power solid-state RF switch models listed in the table are only our online models. If you can’t find a model in the table that fits your exact 50 Ohm high power solid-state RF switch requirement, please contact JFW. We do not charge NRE’s for new RF switch models. We pride ourselves in the ability to offer custom high power RF switch models with the same pricing and delivery as our catalog high power RF switch models.

Send in a request with a list of your required RF specifications and RF input power requirements and JFW will design a high power solid-state RF switch model that meets your specific requirements.

Common solid-state RF Switch Terminology…

Reflective: Switch ports are high impedance (open) when ports are turned off.
Absorptive: Ports that are turned off are internally terminated with the proper impedance. (i.e. 75 Ohm impedance models are internally terminated with 75 Ohms.)
Self-terminating: This term is used interchangeably with “absorptive”. Ports that are turned off are internally terminated with the proper impedance. (i.e. 75 Ohm impedance models are internally terminated with 75 Ohms.)
Hot Switching: The switch changes state while a RF signal is still being applied to the switch.
Cold Switching: No RF signal is applied to the RF switch while the RF switch is changes states.
Switching Speed: Port turning ON = 50% TTL control to 90% of the RF signal. Port turning OFF = 50% TTL control to 10% of the RF signal.
Rise Time: Port turning ON = 10% of the RF signal to 90% of the RF signal.
Fall Time: Port turning OFF = 90% of the RF signal to 10% of the RF signal.

Showing 1–3 of 13 results
