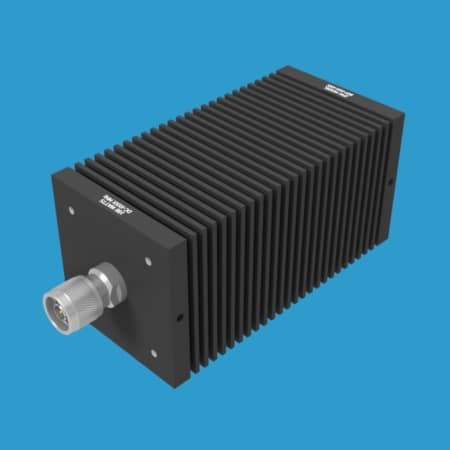

75 Ohm Termination and Mismatch Load

JFW’s online 75 Ohm Low power termination and mismatch load models are listed in the table below.  JFW has been designing, manufacturing, and delivering quality terminations and mismatch loads for over 30 years.  Our mismatch loads allow you to select the impedance mismatch your RF testing requires.

Termination

The terminations listed in the model table are all 75 Ohm impedance.  Terminations are used to properly terminate a port in the matching impedance to prevent RF signal reflections.

Mismatch Load

The mismatch loads in the model table have model numbers that end with -XXX.  The -XXX is used to specify the mismatch value.  For example, JFW model #75T-059-2.0 BNC M is a  2.0:1 mismatch load (i.e. 150 Ohms) with a 75 Ohm BNC male connector.

Frequently Asked Questions

For your application, please contact JFW or use our Inquiry Form.

JFW Model #	Impedance	RF Connectors	Frequency Start	Frequency Stop	RF Input Power	Description

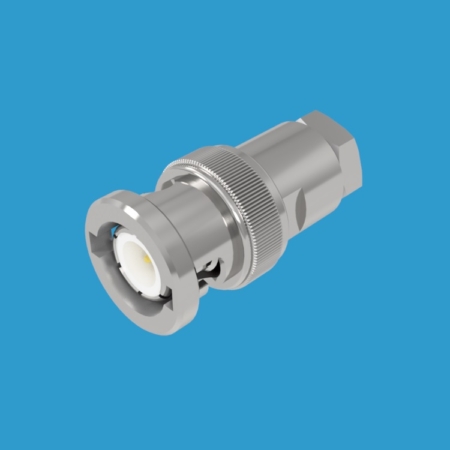

75T-001	75 Ohm	BNC male	DC	1000 MHz	1 Watt	Termination

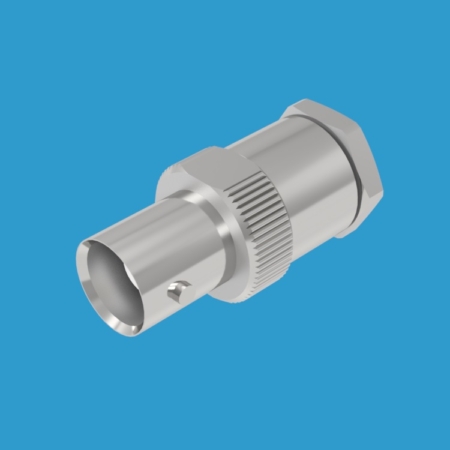

75T-002	75 Ohm	BNC female	DC	1000 MHz	1 Watt	Termination

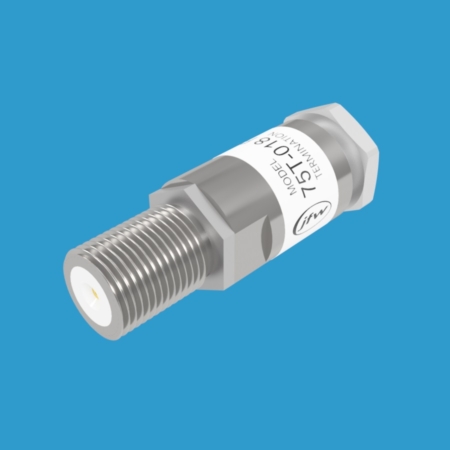

75T-018	75 Ohm	F female	DC	2150 MHz	1 Watt	Termination

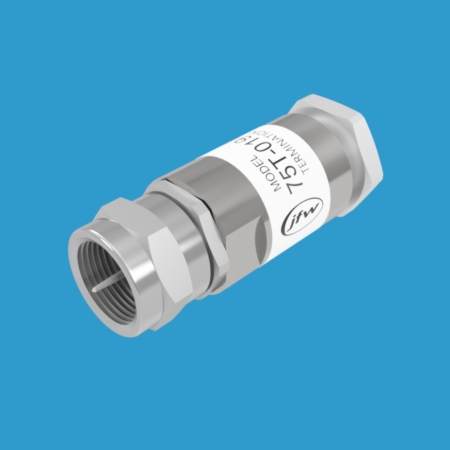

75T-019	75 Ohm	F male screw-on	DC	2150 MHz	1 Watt	Termination

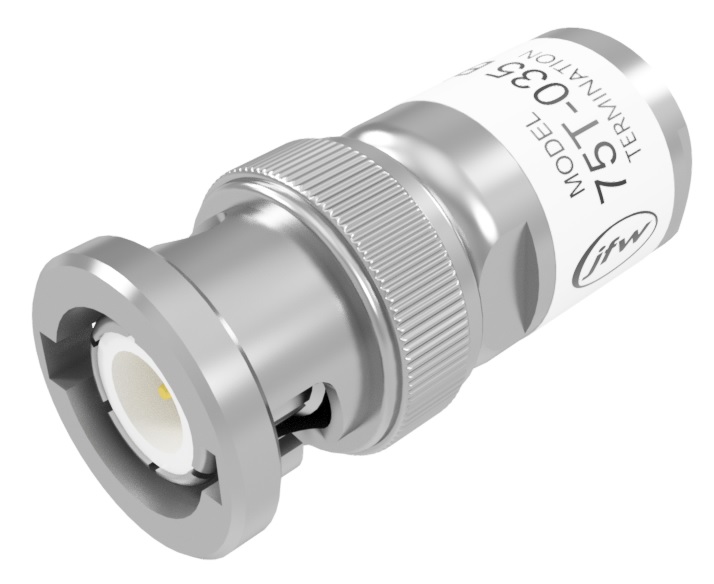

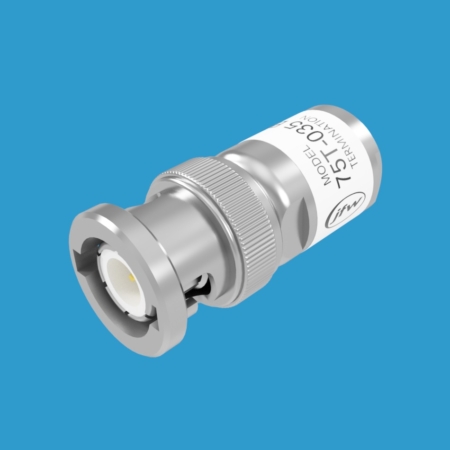

75T-035	75 Ohm	BNC, N	DC	2150 MHz	2 Watt	Termination

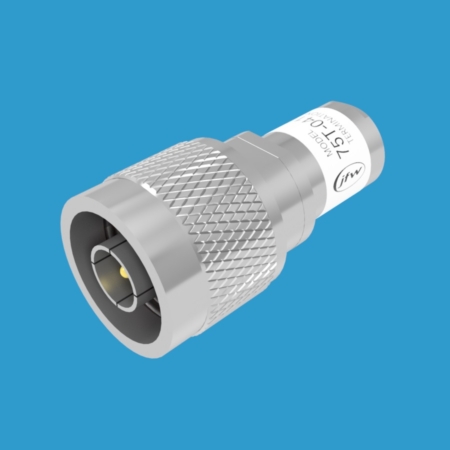

75T-041	75 Ohm	BNC, N	DC	3000 MHz	2 Watt	Termination

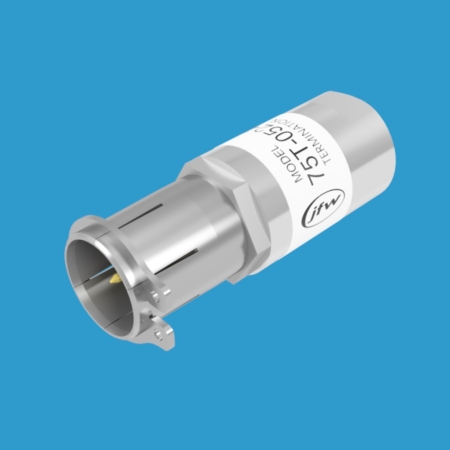

75T-052-P	75 Ohm	F male push-on	DC	3000 MHz	1 Watt	Termination

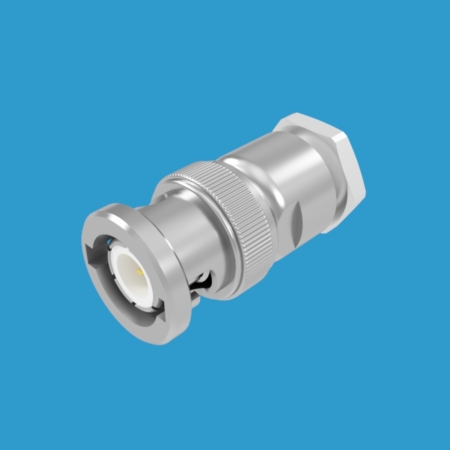

75T-055	75 Ohm	BNC male	DC	3000 MHz	2 Watt	Termination

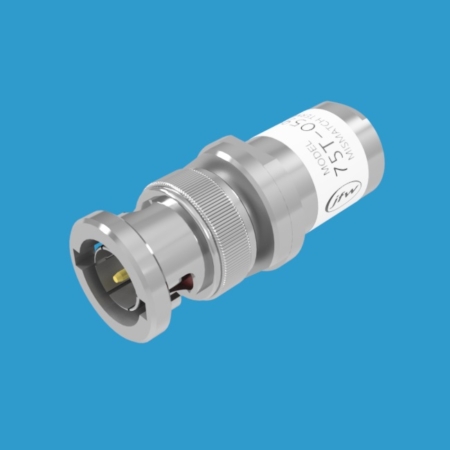

75T-059-XXX	75 Ohm	BNC, N	DC	3000 MHz	2 Watt	Mismatch Load

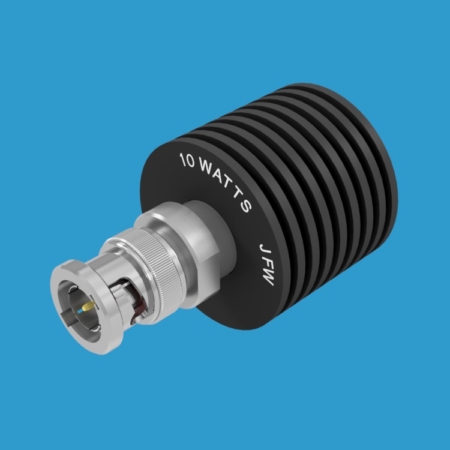

75T-060	75 Ohm	BNC, N	DC	3000 MHz	10 Watt	Termination
