RF Cables

JFW’s online RF cable models are listed in the table below.

If you can’t find an RF cable to meet your requirements, please contact JFW at sales@jfwindustries.com.

Frequently Asked Question

Click the column headers to sort our online models. For your specific application, please contact JFW for assistance or use our Inquiry Form.

JFW Model #RF Connector 1RF Connector 2ImpedanceFrequency StartFrequency StopRG Cable Type

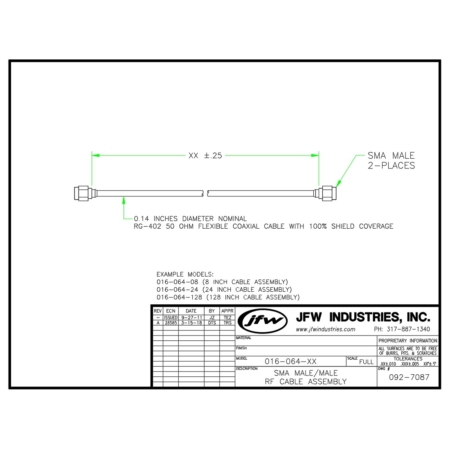

016-064-XXSMA MaleSMA Male50 Ohms0 MHz (DC)6 GHz0.141" Diameter Flexible Semi-Rigid

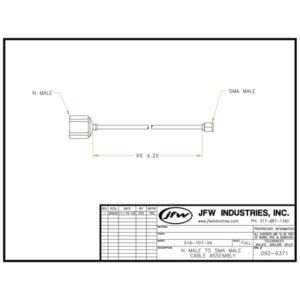

016-107-XXSMA MaleN Male50 Ohms0 MHz (DC)3 GHz0.141" Diameter Flexible Semi-Rigid

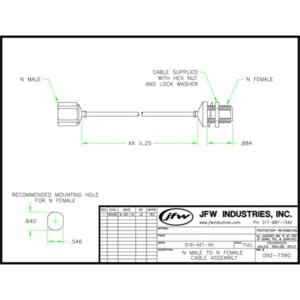

016-421-XXN MaleN Female Bulkhead50 Ohms0 MHz (DC)3 GHz0.141" Diameter Flexible Semi-Rigid

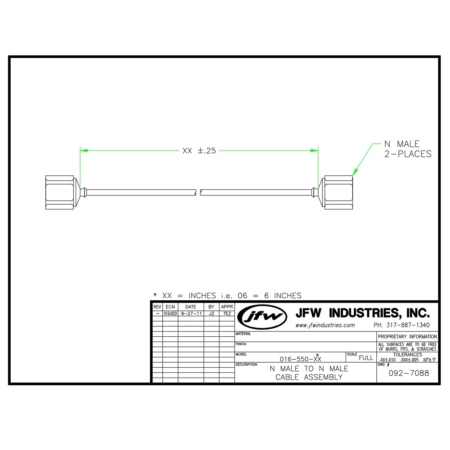

016-550-XXN MaleN Male50 Ohms0 MHz (DC)3 GHz0.141" Diameter Flexible Semi-Rigid
016-841-XXN MaleSMA Female50 Ohms0 MHz (DC)3 GHz0.141" Diameter Flexible Semi-Rigid
016-842-XXSMA FemaleSMA Female50 Ohms0 MHz (DC)3 GHz0.141" Diameter Flexible Semi-Rigid

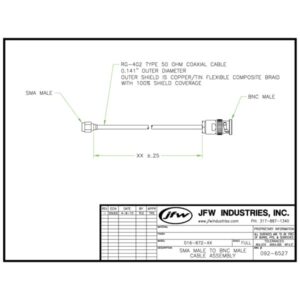

016-872-XXSMA MaleBNC Male50 Ohms0 MHz (DC)3 GHz0.141" Diameter Flexible Semi-Rigid

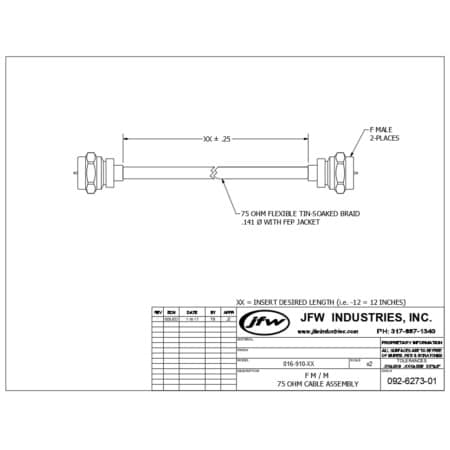

016-910-XXF MaleF Male75 Ohms0 MHz (DC)3 GHz0.141" Diameter Flexible Semi-Rigid

For our customer’s convenience, JFW offers a line of semi-rigid RF cable assemblies as well as a selection of DC cable assemblies with a variety of interface connectors.

Our available cable assemblies include the following features…

  • RG-402 type semi-rigid RF cable
  • RF cable assemblies are fully tested from DC to 6 GHz
  • RF cable assemblies available with any combination of SMA or N connectors
  • DC interface cable assemblies with 3M, Molex, T&M and D-subminiature connectors
  • Choose any cable length
  • AFFORDABLE CUSTOM DESIGNS ARE ALSO AVAILABLE!

Showing 1–3 of 8 results
