RF Products for LTE Testing
The below models are some models that JFW has designed for LTE applications. LTE (Long Term Evolution) is a trademark of the European Telecommunications Standards Institute (ETSI). The LTE defined operating bands cover 698-2690MHz. However, the frequency bands being used in different regions do vary:
United States, Canada: 824 – 2155 MHz
Latin America: 880 – 2170 MHz
Japan: 830 – 2170 MHz
China: 2300- 2400 MHz
European Union: 880 – 2690 MHz
If you can’t find a model for your specific application, please email us at sales@jfwindustries.com your requirements.
Test Systems for LTE Applications
JFW Model # Impedance Config dB Total dB Step Frequency Start Frequency Stop Control RF Connectors
Attenuators for LTE Applications
JFW Model # Impedance dB Total dB Step Frequency Start Frequency Stop RF Input Power RF Connectors 50BR-112 50 Ohms 110 dB 1 dB 0 MHz (DC) 2700 MHz 2 Watts BNC, N, SMA, TNC 50DR-111 50 Ohms 60 dB 1 dB 0 MHz (DC) 2700 MHz 2 Watts N, SMA
Power Dividers/Combiners for LTE Applications
JFW Model # Impedance Config Frequency Start Frequency Stop RF Input Power RF Connectors 50PD-659 50 Ohms 2-Way 698 MHz 3000 MHz 5 Watts SMA Female 50PD-660 50 Ohms 4-Way 698 MHz 3000 MHz 5 Watts SMA Female 50PD-665 50 Ohms 8-Way 698 MHz 3000 MHz 5 Watts SMA Female
- Display 15 Products per page
-
2-Way Power Divider/Combiner 698-3000 MHz | 50PD-659 SMA
JFW Model #: 50PD-659 SMA
Impedance: 50 Ohm
Configuration: 2-Way power divider/combiner
Frequency Range: 698-3000 MHz
RF Input Power: 5 Watts
RF Connectors: SMA female
Documentation: Data Sheet | Drawing -

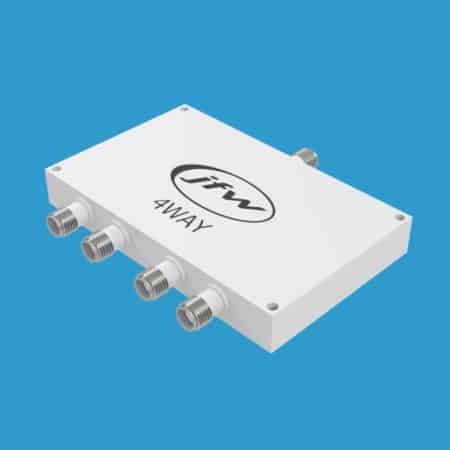

4-Way Power Divider/Combiner 698-3000 MHz | 50PD-660 SMA
JFW Model #: 50PD-660 SMA
Impedance: 50 Ohm
Configuration: 4-Way power divider/combiner
Frequency Range: 698-3000 MHz
RF Input Power: 5 Watts
RF Connectors: SMA female
Documentation: Data Sheet | Drawing -
50 Ohm Benchtop Attenuator DC-2.7 GHz 0-110dB x 1dB | 50BR-112
JFW Model #: 50BR-112
Type: Manually variable attenuator
Enclosure: Benchtop
Impedance: 50 Ohm
dB Total: 110 dB
dB Step: 1 dB
Frequency Range: DC-2700 MHz
RF Input Power: 2 Watts
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing -

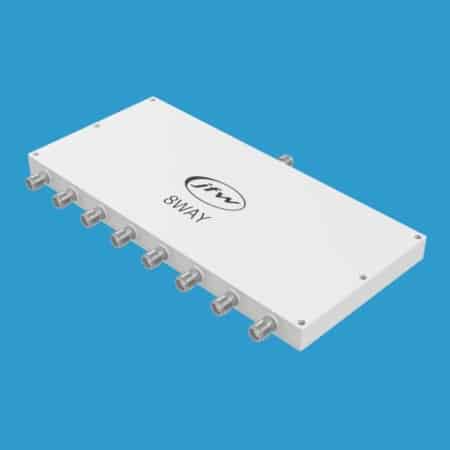

8-Way Power Divider/Combiner 698-3000 MHz | 50PD-665 SMA
JFW Model #: 50PD-665 SMA
Impedance: 50 Ohm
Configuration: 8-Way power divider/combiner
Frequency Range: 698-3000 MHz
RF Input Power: 5 Watts
RF Connectors: SMA female
Documentation: Data Sheet | Drawing -

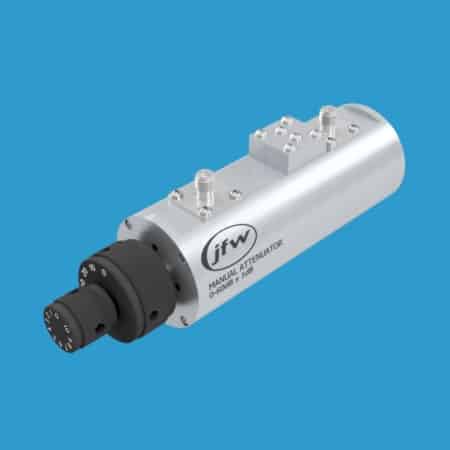

Manual Attenuator DC-2700MHz 0-60dB x 1dB | 50DR-111
JFW Model #: 50DR-111
Type: Manually variable attenuator
Impedance: 50 Ohm
dB Total: 60 dB
dB Step: 1 dB
Frequency Range: DC-2700 MHz
RF Input Power: 2 Watts
RF Connectors: N, SMA
Documentation: Data Sheet | Drawing (SMA) | Drawing (N) | Knob/Mounting
