50 Ohm Panel Mounted Manual Attenuators

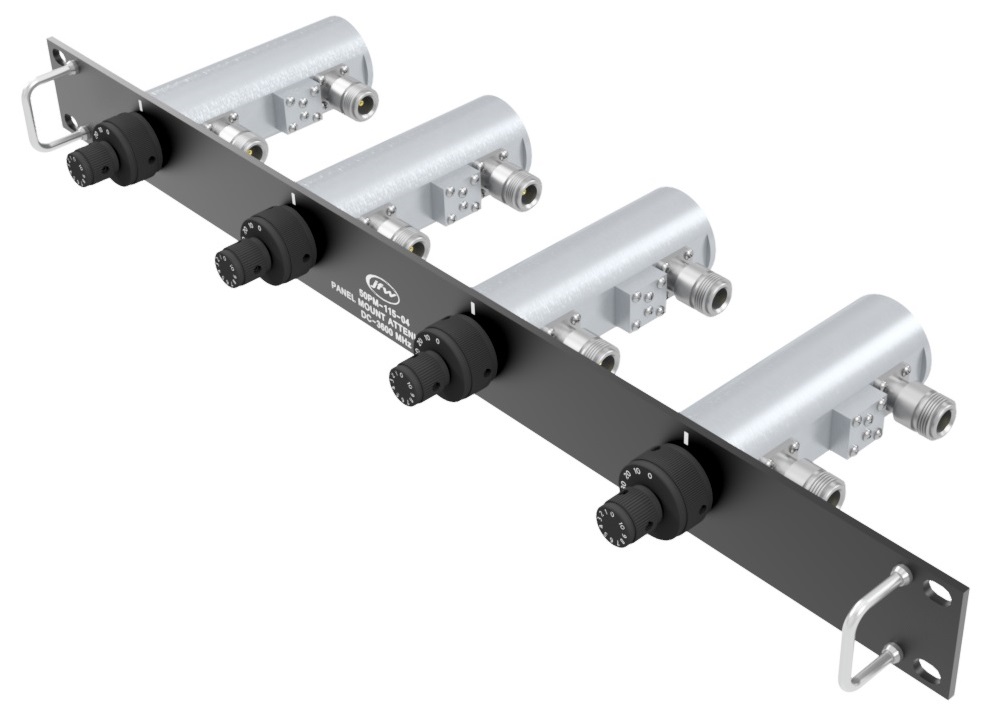

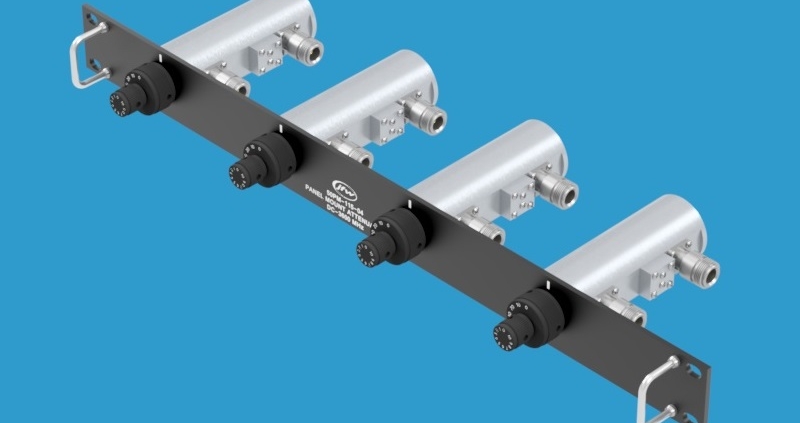

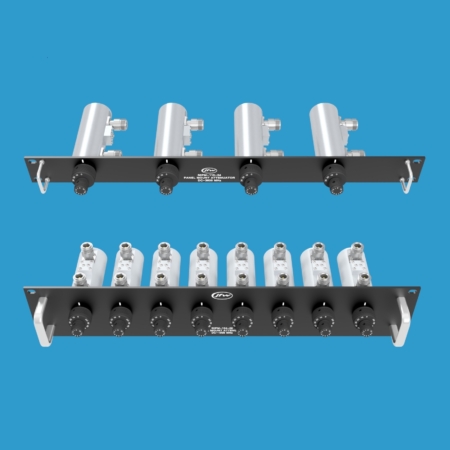

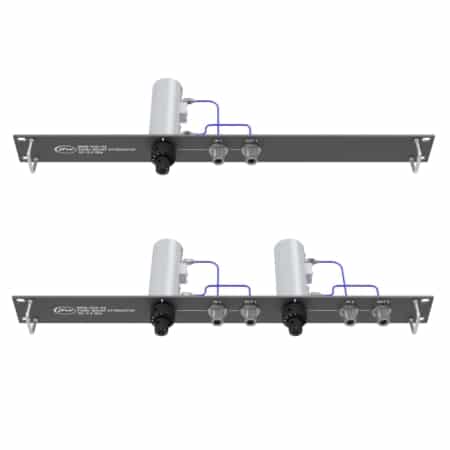

50 Ohm Panel Mounted Manual AttenuatorsJFW’s standard 50 Ohm panel mounted rotary attenuator models are listed in the table below. These standard models have 19 inch rack mountable panels. The panel height varies depending on the number of attenuators. We do offer models with empty positions to allow for future expansion of your test setup. JFW can integrate any of our 50 Ohm manually variable attenuators into a panel mounted model. If you have specific requirements (i.e. panel screening, panel color, RF connector configuration) then please contact our engineering team.
For model recommendations, please contact JFW or use our Inquiry Form.
| JFW Model # | Impedance | Configuration | Panel Width | dB Total | dB Step | Frequency Start | Frequency Stop | RF Input Power | RF Connectors |
|---|---|---|---|---|---|---|---|---|---|
| 50PM-114-XX | 50 Ohm | 1-8 Attenuators | 19 inch | 11 dB | 0.1 dB | DC | 2000 MHz | 2 Watt | BNC, N, RPT, SMA, TNC, |
| 50PM-115-XX | 50 Ohm | 1-8 Attenuators | 19 inch | 40 dB | 1 dB | DC | 3600 MHz | 2 Watt | N, SMA |
| 50PM-116-XX | 50 Ohm | 1-8 Attenuators | 19 inch | 30 dB | 1 dB | DC | 2000 MHz | 2 Watt | BNC, N, RPT, SMA, TNC, 4.1/9.5 |
| 50PM-117-XX | 50 Ohm | 1-8 Attenuators | 19 inch | 30 dB | 1 dB | DC | 3000 MHz | 2 Watt | N, SMA, TNC |
| 50PM-118-XX | 50 Ohm | 1-8 Attenuators | 19 inch | 30 dB | 1 dB | DC | 3500 MHz | 2 Watt | N, SMA |
| 50PM-119-XX | 50 Ohm | 1-8 Attenuators | 19 inch | 50 dB | 1 dB | DC | 2500 MHz | 2 Watt | BNC, N, SMA, TNC |
| 50PM-120-XX | 50 Ohm | 1-8 Attenuators | 19 inch | 60 dB | 1 dB | DC | 2700 MHz | 2 Watt | N, SMA |
| 50PM-121-XX | 50 Ohm | 1-8 Attenuators | 19 inch | 80 dB | 1 dB | DC | 2200 MHz | 2 Watt | BNC, N, SMA |
| 50PM-122-XX | 50 Ohm | 1-8 Attenuators | 19 inch | 80 dB | 1 dB | DC | 2500 MHz | 2 Watt | BNC, N, SMA, TNC |
| 50PM-123-XX | 50 Ohm | 1-8 Attenuators | 19 inch | 80 dB | 1 dB | DC | 3000 MHz | 2 Watt | N, SMA |
| 50PM-124-XX | 50 Ohm | 1-8 Attenuators | 19 inch | 110 dB | 1 dB | DC | 1000 MHz | 2 Watt | BNC, N, RPT, SMA, TNC |
| 50PM-125-XX | 50 Ohm | 1-8 Attenuators | 19 inch | 110 dB | 1 dB | DC | 2000 MHz | 2 Watt | BNC, N, SMA, TNC |
| 50PM-126-XX | 50 Ohm | 1-8 Attenuators | 19 inch | 110 dB | 1 dB | DC | 2200 MHz | 2 Watt | BNC, N, SMA, TNC |
- Display 15 Products per page
-
Panel Mounted Attenuators DC-1 GHz 0-110dB x 1dB | 50PM-124
JFW Model #: 50PM-124-XX
Type: Manually variable attenuators
Panel: 19 inch rack mountable
Impedance: 50 Ohm
Configuration: 1-8 Attenuators
dB Total: 110 dB
dB Step: 1 dB
Frequency Range: DC-1000 MHz
RF Input Power: 2 Watt
RF Connectors: BNC, Mini-UHF, N, RPT, SMA, TNC
Documentation: Data Sheet | Drawing | Drawing -
Panel Mounted Attenuators DC-2 GHz 0-110dB x 1dB | 50PM-125
JFW Model #: 50PM-125-XX
Type: Manually variable attenuators
Panel: 19 inch rack mountable
Impedance: 50 Ohm
Configuration: 1-8 Attenuators
dB Total: 110 dB
dB Step: 1 dB
Frequency Range: DC-2000 MHz
RF Input Power: 2 Watt
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing | Drawing -
Panel Mounted Attenuators DC-2 GHz 0-11dB x 0.1dB | 50PM-114
JFW Model #: 50PM-114-XX
Type: Manually variable attenuators
Panel: 19 inch rack mountable
Impedance: 50 Ohm
Configuration: 1-8 Attenuators
dB Total: 11 dB
dB Step: 0.1 dB
Frequency Range: DC-2000 MHz
RF Input Power: 2 Watt
RF Connectors: BNC, N, RPT, SMA, TNC
Documentation: Data Sheet | Drawing | Drawing -
Panel Mounted Attenuators DC-2 GHz 0-30dB x 1dB | 50PM-116
JFW Model #: 50PM-116-XX
Type: Manually variable attenuators
Panel: 19 inch rack mountable
Impedance: 50 Ohm
Configuration: 1-8 Attenuators
dB Total: 30 dB
dB Step: 1 dB
Frequency Range: DC-2000 MHz
RF Input Power: 2 Watt
RF Connectors: 4.1/9.5, BNC, N, RPT, SMA, TNC
Documentation: Data Sheet | Drawing | Drawing -
Panel Mounted Attenuators DC-2.2 GHz 0-110dB x 1dB | 50PM-126
JFW Model #: 50PM-126-XX
Type: Manually variable attenuators
Panel: 19 inch rack mountable
Impedance: 50 Ohm
Configuration: 1-8 Attenuators
dB Total: 110 dB
dB Step: 1 dB
Frequency Range: DC-2200 MHz
RF Input Power: 2 Watt
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing | Drawing -
Panel Mounted Attenuators DC-2.2 GHz 0-80dB x 1dB | 50PM-121
JFW Model #: 50PM-121-XX
Type: Manually variable attenuators
Panel: 19 inch rack mountable
Impedance: 50 Ohm
Configuration: 1-8 Attenuators
dB Total: 80 dB
dB Step: 1 dB
Frequency Range: DC-2200 MHz
RF Input Power: 2 Watt
RF Connectors: BNC, N, SMA
Documentation: Data Sheet | Drawing | Drawing -
Panel Mounted Attenuators DC-2.5 GHz 0-50dB x 1dB | 50PM-119
JFW Model #: 50PM-119-XX
Type: Manually variable attenuators
Panel: 19 inch rack mountable
Impedance: 50 Ohm
Configuration: 1-8 Attenuators
dB Total: 50 dB
dB Step: 1 dB
Frequency Range: DC-2500 MHz
RF Input Power: 2 Watt
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing | Drawing -
Panel Mounted Attenuators DC-2.5 GHz 0-80dB x 1dB | 50PM-122
JFW Model #: 50PM-122-XX
Type: Manually variable attenuators
Panel: 19 inch rack mountable
Impedance: 50 Ohm
Configuration: 1-8 Attenuators
dB Total: 80 dB
dB Step: 1 dB
Frequency Range: DC-2500 MHz
RF Input Power: 2 Watt
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing | Drawing -
Panel Mounted Attenuators DC-2.7 GHz 0-60dB x 1dB | 50PM-120
JFW Model #: 50PM-120-XX
Type: Manually variable attenuators
Panel: 19 inch rack mountable
Impedance: 50 Ohm
Configuration: 1-8 Attenuators
dB Total: 60 dB
dB Step: 1 dB
Frequency Range: DC-2700 MHz
RF Input Power: 2 Watt
RF Connectors: N, SMA
Documentation: Data Sheet | Drawing | Drawing -
Panel Mounted Attenuators DC-3 GHz 0-30dB x 1dB | 50PM-117
JFW Model #: 50PM-117-XX
Type: Manually variable attenuators
Panel: 19 inch rack mountable
Impedance: 50 Ohm
Configuration: 1-8 Attenuators
dB Total: 30 dB
dB Step: 1 dB
Frequency Range: DC-3000 MHz
RF Input Power: 2 Watt
RF Connectors: N, SMA, TNC
Documentation: Data Sheet | Drawing | Drawing -
Panel Mounted Attenuators DC-3 GHz 0-80dB x 1dB | 50PM-123
JFW Model #: 50PM-123-XX
Type: Manually variable attenuators
Panel: 19 inch rack mountable
Impedance: 50 Ohm
Configuration: 1-8 Attenuators
dB Total: 80 dB
dB Step: 1 dB
Frequency Range: DC-3000 MHz
RF Input Power: 2 Watt
RF Connectors: N, SMA
Documentation: Data Sheet | Drawing | Drawing -
Panel Mounted Attenuators DC-3.5 GHz 0-30dB x 1dB | 50PM-118
JFW Model #: 50PM-118-XX
Type: Manually variable attenuators
Panel: 19 inch rack mountable
Impedance: 50 Ohm
Configuration: 1-8 Attenuators
dB Total: 30 dB
dB Step: 1 dB
Frequency Range: DC-3.5 GHz
RF Input Power: 2 Watt
RF Connectors: N, SMA
Documentation: Data Sheet | Drawing | Drawing -
Panel Mounted Attenuators DC-3.6 GHz 0-40dB x 1dB | 50PM-115
JFW Model #: 50PM-115-XX
Type: Manually variable attenuators
Panel: 19 inch rack mountable
Impedance: 50 Ohm
Configuration: 1-8 Attenuators
dB Total: 40 dB
dB Step: 1 dB
Frequency Range: DC-3.6 GHz
RF Input Power: 2 Watt
RF Connectors: N, SMA
Documentation: Data Sheet | Drawing | Drawing
