Pushbutton Attenuators
Pushbutton AttenuatorsThe JFW pushbutton attenuator has been a staple tool to RF engineers for over 30 years. Whether mounted to a panel or used at a RF test bench, the JFW pushbutton attenuator makes adjusting attenuation quick and easy.
Step Attenuator Design
Each pushbutton controls an individual attenuation step. In order to achieve combinational dB settings you must activate multiple attenuation steps simultaneously.
Panel Mount Options
Most JFW pushbutton attenuators have threaded mounting holes on the same side as pushbuttons. These mounting holes are denoted on the outline drawings.
For your specific application, please contact JFW or use our Inquiry Form.
| JFW Model # | Impedance | dB Total | dB Step | Frequency Start | Frequency Stop | RF Input Power | RF Connectors |
|---|---|---|---|---|---|---|---|
| 50B-001 | 50 Ohm | 65 dB | 1 dB | DC | 750 MHz | 1 Watt | BNC |
| 50B-002 | 50 Ohm | 45.5 dB | 0.5 dB | DC | 750 MHz | 1 Watt | BNC |
| 50B-004 | 50 Ohm | 42 dB | 1 dB | DC | 750 MHz | 1 Watt | BNC, SMA, TNC |
| 50B-035 | 50 Ohm | 85 dB | 1 dB | DC | 750 MHz | 1 Watt | BNC, N, SMA, TNC |
| 50B-042 | 50 Ohm | 65 dB | 1 dB | DC | 1000 MHz | 1 Watt | BNC, N, SMA, TNC |
| 50B-043 | 50 Ohm | 102 dB | 1 dB | DC | 750 MHz | 1 Watt | BNC, N, SMA, TNC |
| 50B-044 | 50 Ohm | 82.5 dB | 0.5 dB | DC | 750 MHz | 1 Watt | BNC, SMA, TNC |
| 50B-050 | 50 Ohm | 102 dB | 1 dB | DC | 1000 MHz | 1 Watt | BNC, SMA, TNC |
| 75B-001 | 75 Ohm | 65 dB | 1 dB | DC | 500 MHz | 1 Watt | BNC, F |
| 75B-002 | 75 Ohm | 45.5 dB | 0.5 dB | DC | 500 MHz | 1 Watt | BNC, F |
- Display 15 Products per page
-
50 Ohm Pushbutton Attenuator DC-1000 MHz 0-102dB x 1dB | 50B-050
JFW Model #: 50B-050
Type: Manually variable attenuator
Impedance: 50 Ohm
dB Total: 102 dB
dB Step: 1 dB
Frequency Range: DC-1000 MHz
RF Input Power: 1 Watt
RF Connectors: BNC, SMA, TNC
Documentation: Data Sheet | Drawing -

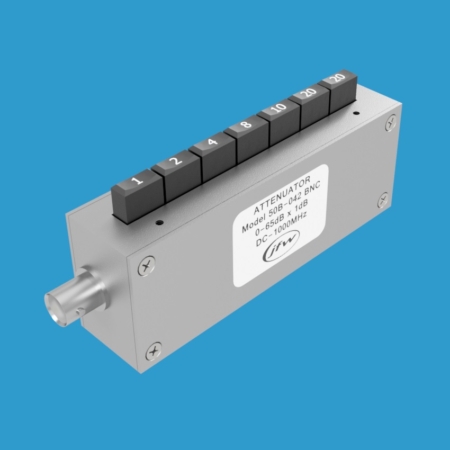

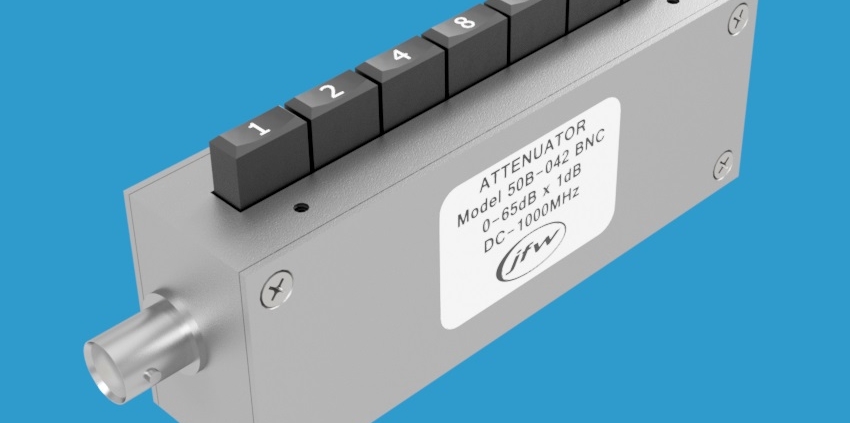

50 Ohm Pushbutton Attenuator DC-1000 MHz 0-65dB x 1dB | 50B-042
JFW Model #: 50B-042
Type: Manually variable attenuator
Impedance: 50 Ohm
dB Total: 65 dB
dB Step: 1 dB
Frequency Range: DC-1000 MHz
RF Input Power: 1 Watt
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing -

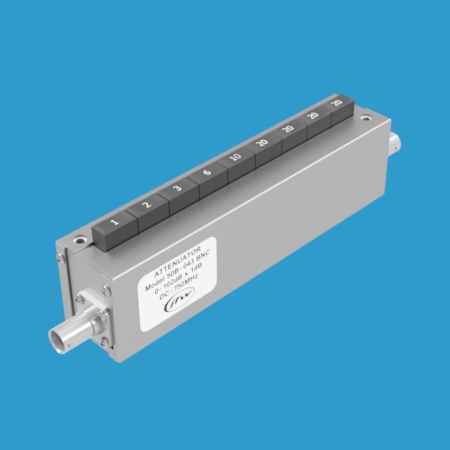

50 Ohm Pushbutton Attenuator DC-750 MHz 0-102dB x 1dB | 50B-043
JFW Model #: 50B-043
Type: Manually variable attenuator
Impedance: 50 Ohm
dB Total: 102 dB
dB Step: 1 dB
Frequency Range: DC-750 MHz
RF Input Power: 1 Watt
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing -
50 Ohm Pushbutton Attenuator DC-750 MHz 0-42dB x 1dB | 50B-004
JFW Model #: 50B-004
Type: Manually variable attenuator
Impedance: 50 Ohm
dB Total: 42 dB
dB Step: 1 dB
Frequency Range: DC-750 MHz
RF Input Power: 1 Watt
RF Connectors: BNC, SMA, TNC
Documentation: Data Sheet | Drawing -
50 Ohm Pushbutton Attenuator DC-750 MHz 0-45.5dB x 0.5dB | 50B-002
JFW Model #: 50B-002
Type: Manually variable attenuator
Impedance: 50 Ohm
dB Total: 45.5 dB
dB Step: 0.5 dB
Frequency Range: DC-750 MHz
RF Input Power: 1 Watt
RF Connectors: BNC
Documentation: Data Sheet | Drawing -

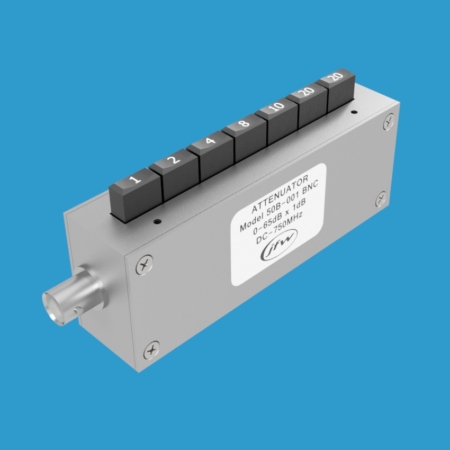

50 Ohm Pushbutton Attenuator DC-750 MHz 0-65dB x 1dB | 50B-001
JFW Model #: 50B-001
Type: Manually variable attenuator
Impedance: 50 Ohm
dB Total: 65 dB
dB Step: 1 dB
Frequency Range: DC-750 MHz
RF Input Power: 1 Watt
RF Connectors: BNC
Documentation: Data Sheet | Drawing -

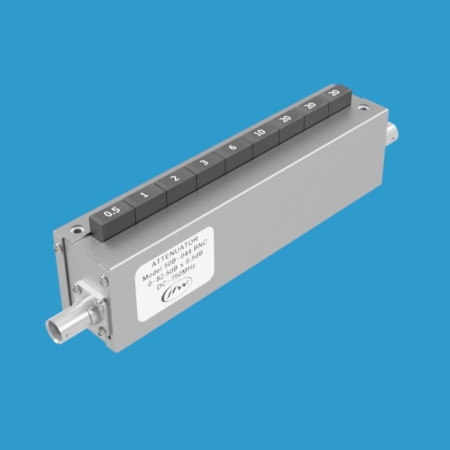

50 Ohm Pushbutton Attenuator DC-750 MHz 0-82.5dB x 0.5dB | 50B-044
JFW Model #: 50B-044
Type: Manually variable attenuator
Impedance: 50 Ohm
dB Total: 82.5 dB
dB Step: 0.5 dB
Frequency Range: DC-750 MHz
RF Input Power: 1 Watt
RF Connectors: BNC, SMA, TNC
Documentation: Data Sheet | Drawing -

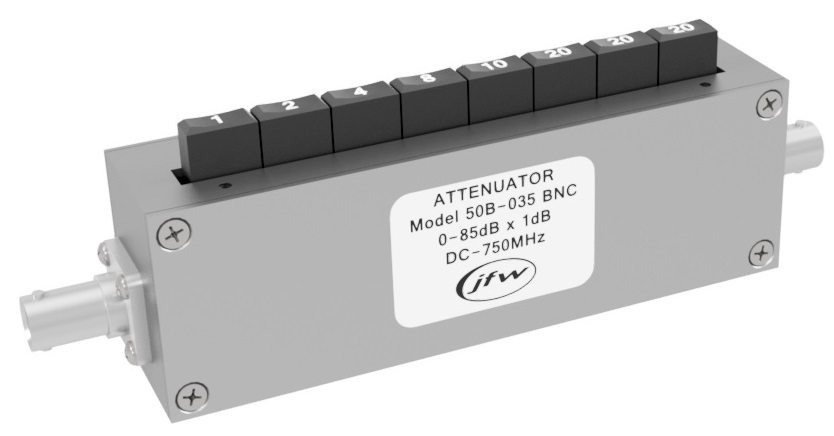

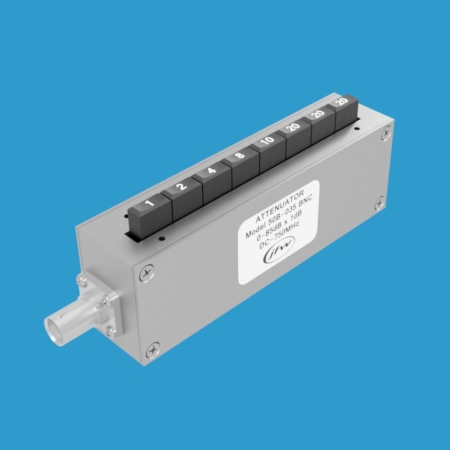

50 Ohm Pushbutton Attenuator DC-750 MHz 0-85dB x 1dB | 50B-035
JFW Model #: 50B-035
Type: Manually variable attenuator
Impedance: 50 Ohm
dB Total: 85 dB
dB Step: 1 dB
Frequency Range: DC-750 MHz
RF Input Power: 1 Watt
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing -
75 Ohm Pushbutton Attenuator DC-500 MHz 0-45.5dB x 0.5dB | 75B-002
JFW Model #: 75B-002
Type: Manually variable attenuator
Impedance: 75 Ohm
dB Total: 45.5 dB
dB Step: 0.5 dB
Frequency Range: DC-500 MHz
RF Input Power: 1 Watt
RF Connectors: BNC, F
Documentation: Data Sheet | Drawing -

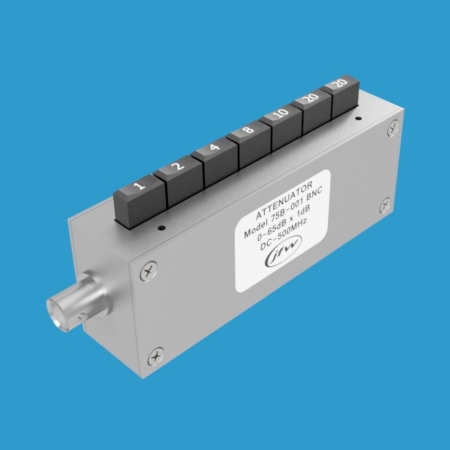

75 Ohm Pushbutton Attenuator DC-500 MHz 0-65dB x 1dB | 75B-001
JFW Model #: 75B-001
Type: Manually variable attenuator
Impedance: 75 Ohm
dB Total: 65 dB
dB Step: 1 dB
Frequency Range: DC-500 MHz
RF Input Power: 1 Watt
RF Connectors: BNC, F
Documentation: Data Sheet | Drawing
