50 Ohm Solid-State RF Switches (Absorptive)
50 Ohm Solid-State RF Switches (Absorptive)JFW’s online absorptive 50 Ohm solid-state RF switch models are listed in the table below. Whether you are performing benchtop testing or computer automated testing, JFW’s solid-state switches have the proven reliability needed for your RF and microwave testing. For your specific application, please contact JFW or use our Inquiry Form.
Absorptive RF Switch
The term absorptive RF switch refers to the state of the unused ports. For 50 Ohm RF switches, absorptive unused ports are internally terminated (i.e. self-terminating) at an impedance of 50 Ohms.
RF Switch Terminology and FAQs
| JFW Model # | Impedance | Switch Config | Switch Type | Frequency Start | Frequency Stop | Switching Speed | RF Input Power | Isolation | Control Logic |
|---|---|---|---|---|---|---|---|---|---|
| 50S-0847 | 50 Ohm | 1P6T | Absorptive | 50 MHz | 2 GHz | 1 uS | +10 dBm | 55 dB | TTL |
| 50S-1075 | 50 Ohm | 1P4T | Absorptive | 20 MHz | 4.3 GHz | 10 uS | +30 dBm | 55 dB | TTL |
| 50S-1213 | 50 Ohm | 1P10T | Absorptive | 20 MHz | 4.3 GHz | 20 uS | +30 dBm | 50 dB | TTL |
| 50S-1220 | 50 Ohm | 1P2T | Absorptive | 20 MHz | 4.3 GHz | 10 uS | +30 dBm | 55 dB | TTL |
| 50S-1221 | 50 Ohm | 1P5T | Absorptive | 20 MHz | 4.3 GHz | 10 uS | +30 dBm | 55 dB | TTL |
| 50S-1310 | 50 Ohm | 1P8T | Absorptive | 20 MHz | 4.3 GHz | 15 uS | +30 dBm | 50 dB | TTL |
| 50S-1337 | 50 Ohm | 1P1T | Absorptive | 800 MHz | 3 GHz | 0.5 uS | +20 dBm | 50 dB | TTL |
| 50S-1567 | 50 Ohm | 1P12T | Absorptive | 20 MHz | 4.3 GHz | 20 uS | +30 dBm | 50 dB | TTL |
| 50S-1584 | 50 Ohm | 1P16T | Absorptive | 20 MHz | 4.3 GHz | 15 uS | +20 dBm | 50 dB | TTL |
| 50S-1780 | 50 Ohm | 1P1T | Absorptive | 500 MHz | 18 GHz | 0.1 uS | +27 dBm | 65 dB | TTL |
| 50S-1781 | 50 Ohm | 1P2T | Absorptive | 500 MHz | 18 GHz | 0.1 uS | +27 dBm | 65 dB | TTL |
| 50S-1782 | 50 Ohm | 1P3T | Absorptive | 500 MHz | 18 GHz | 0.1 uS | +27 dBm | 65 dB | TTL |
| 50S-1783 | 50 Ohm | 1P4T | Absorptive | 500 MHz | 18 GHz | 0.1 uS | +27 dBm | 65 dB | TTL |
| 50S-1784 | 50 Ohm | 1P6T | Absorptive | 500 MHz | 18 GHz | 0.1 uS | +27 dBm | 65 dB | TTL |
| 50S-1785 | 50 Ohm | 1P8T | Absorptive | 500 MHz | 18 GHz | 0.1 uS | +27 dBm | 65 dB | TTL |
| 50S-1786 | 50 Ohm | 1P12T | Absorptive | 500 MHz | 18 GHz | 0.1 uS | +27 dBm | 65 dB | TTL |
| 50S-1812 | 50 Ohm | 1P1T | Absorptive | 10 MHz | 1 GHz | 10 uS | +10 dBm | 55 dB | TTL |
| 50S-1876 | 50 Ohm | 1P2T | Absorptive | 20 MHz | 6 GHz | 10 uS | +26 dBm | 55 dB | TTL |
| 50S-1954 | 50 Ohm | 1P2T | Absorptive | 0.5 MHz | 2 GHz | 25 uS | +26 dBm | 60 dB | TTL |
| 50S-1970 | 50 Ohm | 1P2T | Absorptive | 5 MHz | 3 GHz | 10 uS | +30 dBm | 60 dB | TTL |
| 50S-1971 | 50 Ohm | 1P4T | Absorptive | 5 MHz | 3 GHz | 10 uS | +30 dBm | 60 dB | TTL |
| 50S-1972 | 50 Ohm | 1P8T | Absorptive | 5 MHz | 3 GHz | 10 uS | +30 dBm | 60 dB | TTL |
| 50S-2000 | 50 Ohm | 1P2T | Absorptive | 20 MHz | 6 GHz | 10 uS | +26 dBm | 55 dB | USB |
| 50S-2039 | 50 Ohm | 1P1T | Absorptive | 20 MHz | 6 GHz | 10 uS | +26 dBm | 60 dB | TTL |
| 50S-2064 | 50 Ohm | 1P1T | Absorptive | 5 MHz | 2 GHz | 1.5 uS | +20 dBm | 55 dB | TTL |
| 50S-2099 | 50 Ohm | 1P8T | Absorptive | 400 MHz | 3 GHz | 10 uS | +30 dBm | 60 dB | TTL |
| 50S-2143 | 50 Ohm | 1P2T | Absorptive | 20 MHz | 8.4 GHz | 10 uS | +26 dBm | 50 dB | TTL |
| 50S-2144 | 50 Ohm | 1P4T | Absorptive | 20 MHz | 8.4 GHz | 10 uS | +26 dBm | 50 dB | TTL |

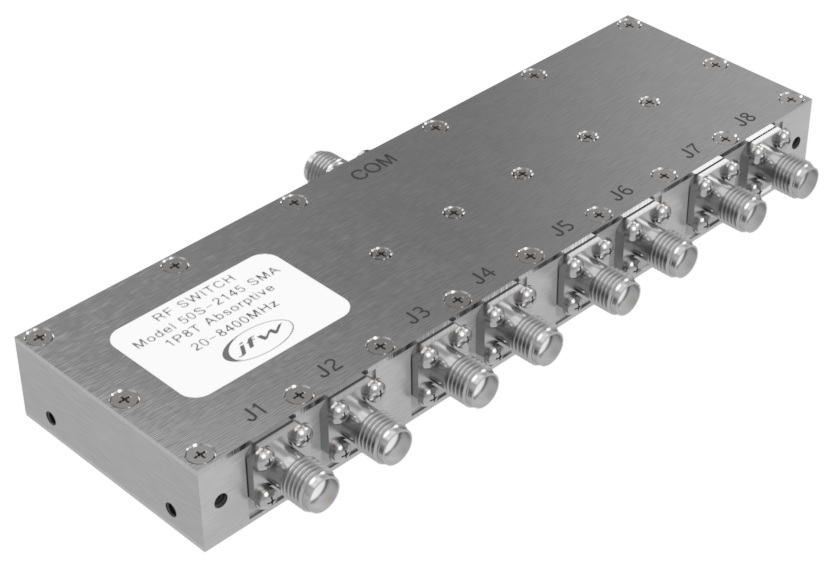

| 50S-2145 | 50 Ohm | 1P8T | Absorptive | 20 MHz | 8.4 GHz | 10 uS | +26 dBm | 50 dB | TTL |
- Display 15 Products per page
-

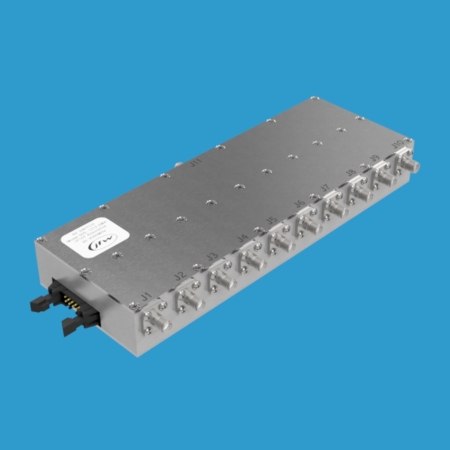

1P10T RF Switch 20-4300 MHz | 50S-1213
JFW Model #: 50S-1213
Impedance: 50 Ohm
Configuration: 1P10T solid-state RF switch
Type: Absorptive (i.e. Self-Terminating)
Frequency Range: 20-4300 MHz
Switching Speed: 20 uS
Control Logic: TTL
Documentation: Data Sheet | Drawing -

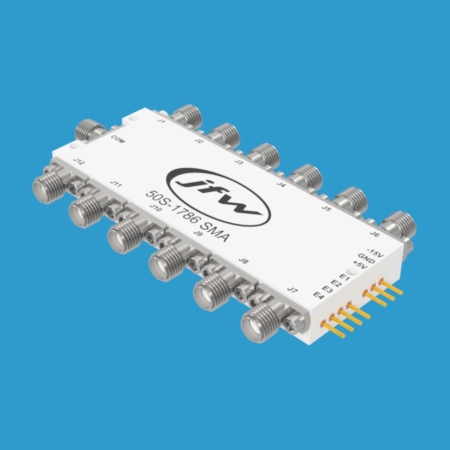

1P12T RF Switch 0.5-18 GHz | 50S-1786
JFW Model #: 50S-1786
Impedance: 50 Ohm
Configuration: 1P12T solid-state RF switch
Type: Absorptive (i.e. self-terminating)
Frequency Start: 500 MHz
Frequency Stop: 18 GHz
Switching Speed: 100 nS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing -
1P12T RF Switch 20-4300 MHz | 50S-1567
JFW Model #: 50S-1567
Impedance: 50 Ohm
Configuration: 1P12T solid-state RF switch
Type: Absorptive (i.e. Self-Terminating)
Frequency Range: 20-4300 MHz
Switching Speed: 20 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing -

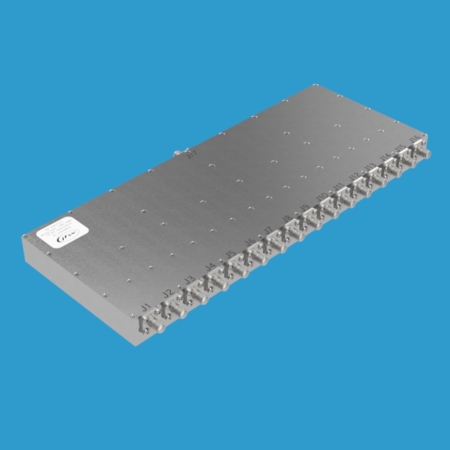

1P16T RF Switch 20-4300 MHz | 50S-1584
JFW Model #: 50S-1584
Impedance: 50 Ohm
Configuration: 1P16T solid-state RF switch
Type: Absorptive (i.e. Self-Terminating)
Frequency Range: 20-4300 MHz
Switching Speed: 15 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing -

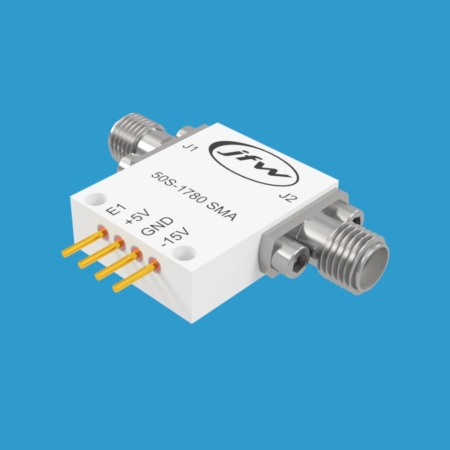

1P1T RF Switch 0.5-18 GHz | 50S-1780
JFW Model #: 50S-1780
Impedance: 50 Ohm
Configuration: 1P1T solid-state RF switch
Type: Absorptive (i.e. Self-Terminating)
Frequency Start: 500 MHz
Frequency Stop: 18 GHz
Switching Speed: 100 nS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing -

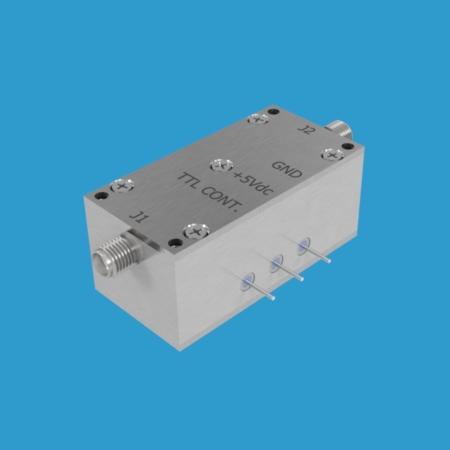

1P1T RF Switch 10-1000 MHz | 50S-1812
JFW Model #: 50S-1812
Impedance: 50 Ohm
Configuration: 1P1T solid-state RF switch
Type: Absorptive (i.e. self-terminating)
Frequency Range: 10-1000 MHz
Switching Speed: 10 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing -
1P1T RF Switch 20-6000 MHz | 50S-2039
JFW Model #: 50S-2039
Impedance: 50 Ohm
Configuration: 1P1T solid-state RF switch
Type: Absorptive (i.e. Self-terminating)
Frequency Range: 20-6000 MHz
Switching Speed: 10 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing -

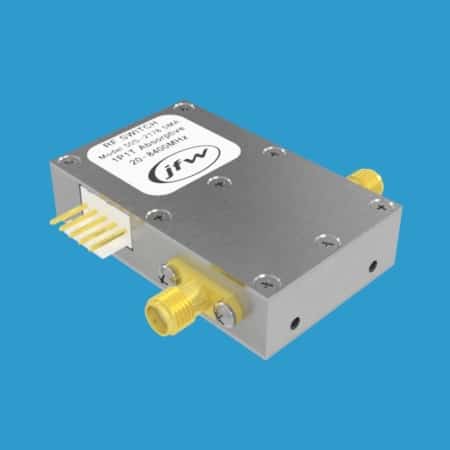

1P1T RF Switch 5-2000 MHz | 50S-2064
JFW Model #: 50S-2064
Impedance: 50 Ohm
Configuration: 1P1T solid-state RF switch
Type: Absorptive (i.e. Self-Terminating)
Frequency Range: 5-2000 MHz
Switching Speed: 1.5 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing -
1P1T RF Switch 800-3000 MHz | 50S-1337
JFW Model #: 50S-1337
Impedance: 50 Ohm
Configuration: 1P1T solid-state RF switch
Type: Absorptive (i.e. Self-Terminating)
Frequency Range: 800-3000 MHz
Switching Speed: 0.5 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing -

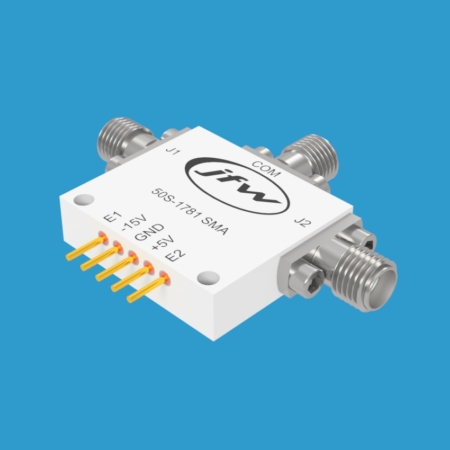

1P2T RF Switch 0.5-18 GHz | 50S-1781
JFW Model #: 50S-1781
Impedance: 50 Ohm
Configuration: 1P2T solid-state RF switch
Type: Absorptive (i.e. Self-Terminating)
Frequency Start: 500 MHz
Frequency Stop: 18 GHz
Switching Speed: 100 nS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing -

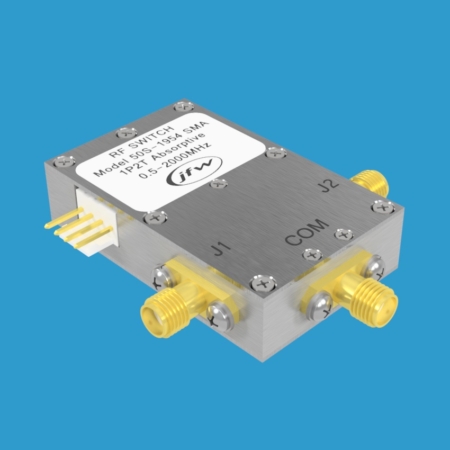

1P2T RF Switch 0.5-2000 MHz | 50S-1954
JFW Model #: 50S-1954
Impedance: 50 Ohm
Configuration: 1P2T solid-state RF switch
Type: Absorptive (i.e. self-terminating)
Frequency Range: 0.5-2000 MHz
Switching Speed: 25 uS
RF Connectors: SMA female
Control Logic: TTL
DC Supply: +5 Vdc
Documentation: Data Sheet | Drawing -

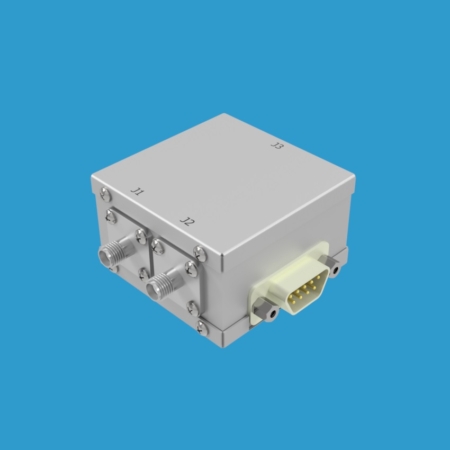

1P2T RF Switch 20-4300 MHz | 50S-1220
JFW Model #: 50S-1220
Impedance: 50 Ohm
Configuration: 1P2T solid-state RF switch
Type: Absorptive (i.e. Self-Terminating)
Frequency Range: 20-4300 MHz
Switching Speed: 10 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing -

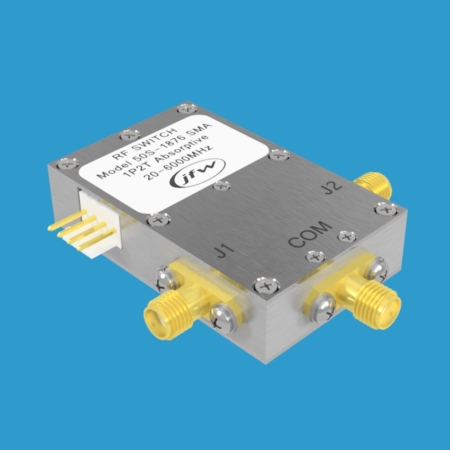

1P2T RF Switch 20-6000 MHz | 50S-1876
JFW Model #: 50S-1876
Impedance: 50 Ohm
Configuration: 1P2T solid-state RF switch
Type: Absorptive (i.e. self-terminating)
Frequency Range: 20-6000 MHz
Switching Speed: 10 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing -

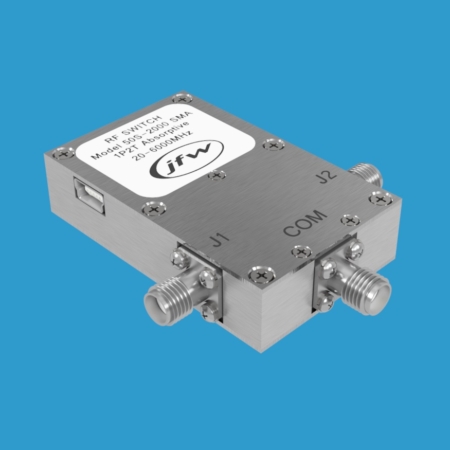

1P2T RF Switch 20-6000 MHz USB Control | 50S-2000
JFW Model #: 50S-2000
Control: USB controlled
Impedance: 50 Ohm
Configuration: 1P2T solid-state RF switch
Type: Absorptive (i.e. self-terminating)
Frequency Range: 20-6000 MHz
Switching Speed: 10 uS
RF Connectors: SMA female
Documentation: Data Sheet | Drawing -
1P2T RF Switch 20-8400 MHz | 50S-2143
JFW Model #: 50S-2143
Impedance: 50 Ohm
Configuration: 1P2T Solid-state RF switch
Type: Absorptive (i.e. Self-Terminating)
Frequency Range: 20-8400 MHz
Switching Speed: 10 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing
