50 Ohm Solid-State RF Switches (Reflective)
50 Ohm Solid-State RF Switches (Reflective)With our extensive line of solid-state RF switches, JFW has solutions to fit your specific RF switch applications. Whether you are performing benchtop testing or automated testing, JFW’s solid-state coaxial switches have the proven reliability needed for your RF and microwave testing. For your specific application, please contact JFW or use our Inquiry Form.
Reflective RF Switch
The term reflective RF switch refers to the state of the unused ports. Reflective unused ports are set to a high impedance state (i.e. open).
RF Switch Terminology and FAQs
| JFW Model # | Impedance | Switch Config | Switch Type | Frequency Start | Frequency Stop | Switching Speed | RF Input Power | Isolation | Control Logic |
|---|---|---|---|---|---|---|---|---|---|
| 50S-0348 | 50 Ohm | 1P2T | Reflective | 5 MHz | 2 GHz | 5 uS | +5 dBm | 50 dB | TTL |
| 50S-0349 | 50 Ohm | 1P3T | Reflective | 5 MHz | 2 GHz | 5 uS | +5 dBm | 50 dB | TTL |
| 50S-0534 | 50 Ohm | 1P2T | Reflective | 20 MHz | 1 GHz | 5 uS | +13 dBm | 70 dB | TTL |
| 50S-0535 | 50 Ohm | 1P3T | Reflective | 20 MHz | 1 GHz | 5 uS | +13 dBm | 70 dB | TTL |
| 50S-0536 | 50 Ohm | 1P4T | Reflective | 20 MHz | 1 GHz | 5 uS | +13 dBm | 70 dB | TTL |
| 50S-0642 | 50 Ohm | 1P1T | Reflective | 5 MHz | 3 GHz | 20 uS | +20 dBm | 60 dB | TTL |
| 50S-0785 | 50 Ohm | 1P1T | Reflective | 20 MHz | 2 GHz | 0.5 uS | +10 dBm | 60 dB | TTL |
| 50S-0884 | 50 Ohm | 1P4T | Reflective | 50 MHz | 2 GHz | 5 uS | +13 dBm | 55 dB | TTL |
| 50S-0976 | 50 Ohm | 1P2T | Reflective | 750 MHz | 4.3 GHz | 5 uS | +10 dBm | 30 dB | TTL |
| 50S-1035 | 50 Ohm | 1P4T | Reflective | 20 MHz | 4.3 GHz | 20 uS | +30 dBm | 55 dB | TTL |
| 50S-1163 | 50 Ohm | 1P2T | Reflective | 20 MHz | 4.3 GHz | 20 uS | +30 dBM | 55 dB | TTL |
| 50S-1199 | 50 Ohm | 1P8T | Reflective | 20 MHz | 4.3 GHz | 20 uS | +30 dBm | 50 dB | TTL |
| 50S-1382 | 50 Ohm | 1P3T | Reflective | 5 MHz | 2.5 GHz | 20 uS | +5 dBm | 45 dB | TTL |
- Display 15 Products per page
-

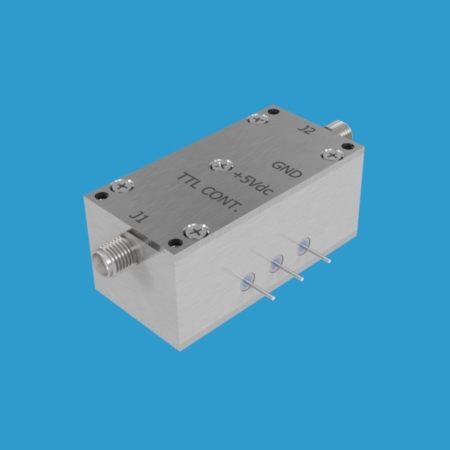

1P1T RF Switch 20-2000 MHz | 50S-785
JFW Model #: 50S-0785
Impedance: 50 Ohm
Configuration: 1P1T solid-state RF switch
Type: Reflective
Frequency Range: 20-2000 MHz
Switching Speed: 0.5 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing -
1P1T RF Switch 5-3000 MHz | 50S-642
JFW Model #: 50S-0642
Impedance: 50 Ohm
Configuration: 1P1T solid-state RF switch
Type: Reflective
Frequency Range: 5-3000 MHz
Switching Speed: 20 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing -

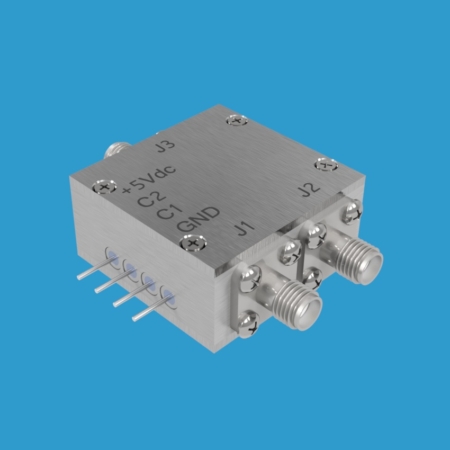

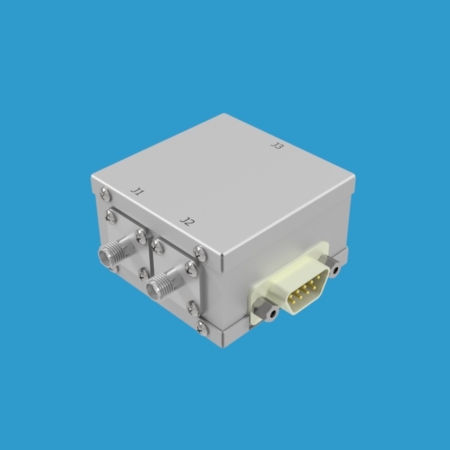

1P2T RF Switch 20-1000 MHz | 50S-534
JFW Model #: 50S-0534
Impedance: 50 Ohm
Configuration: 1P2T solid-state RF switch
Type: Reflective
Frequency Range: 20-1000 MHz
Switching Speed: 5 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing -
1P2T RF Switch 20-4300 MHz | 50S-1163
JFW Model #: 50S-1163
Impedance: 50 Ohm
Configuration: 1P2T solid-state RF switch
Type: Reflective
Frequency Start: 20-4300 MHz
Switching Speed: 20 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing -

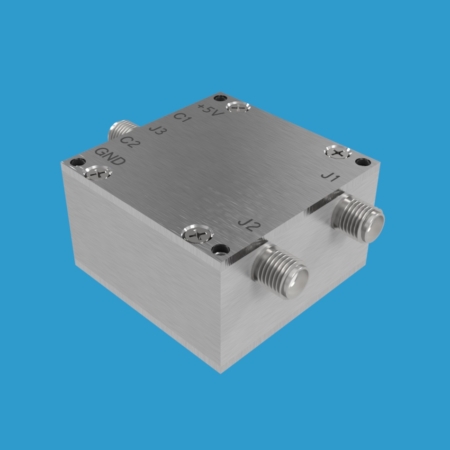

1P2T RF Switch 5-2000 MHz | 50S-348
JFW Model #: 50S-0348
Impedance: 50 Ohm
Configuration: 1P2T solid-state RF switch
Type: Reflective
Frequency Range: 5-2000 MHz
Switching Speed: 5 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing -
1P2T RF Switch 750-4300 MHz | 50S-976
JFW Model #: 50S-0976
Impedance: 50 Ohm
Configuration: 1P2T solid-state RF switch
Type: Reflective
Frequency Range: 750-4300 MHz
Switching Speed: 5 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing -

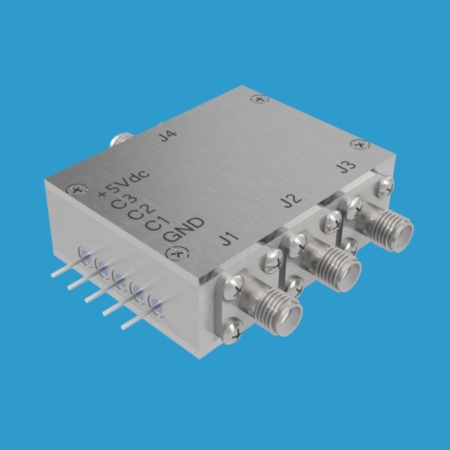

1P3T RF Switch 20-1000 MHz | 50S-535
JFW Model #: 50S-0535
Impedance: 50 Ohm
Configuration: 1P3T solid-state RF switch
Type: Reflective
Frequency Range: 20-1000 MHz
Switching Speed: 5 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing -

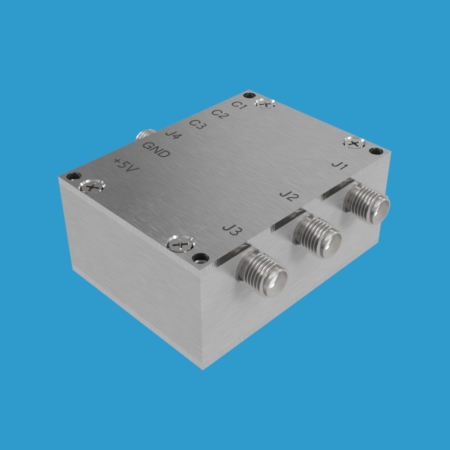

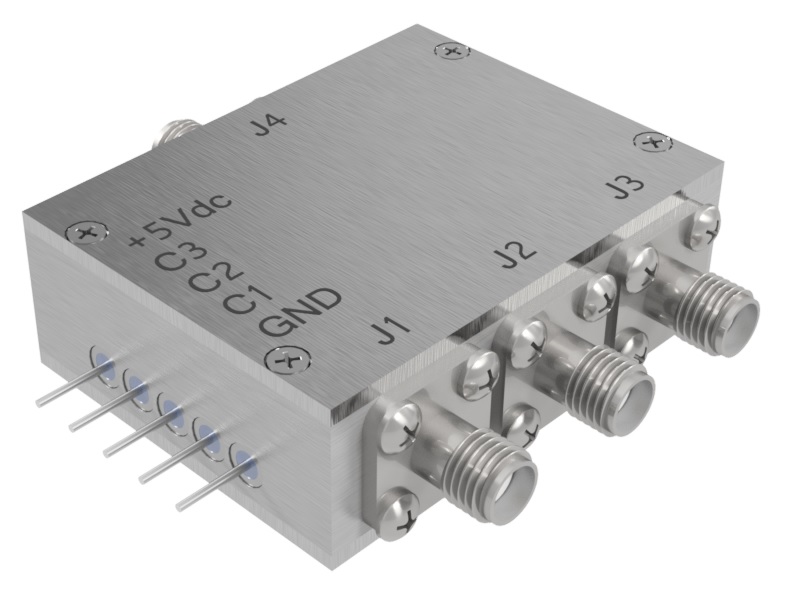

1P3T RF Switch 5-2000 MHz | 50S-349
JFW Model #: 50S-0349
Impedance: 50 Ohm
Configuration: 1P3T solid-state RF switch
Type: Reflective
Frequency Range: 5-2000 MHz
Switching Speed: 5 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing -
1P3T RF Switch 5-2500 MHz | 50S-1382
JFW Model #: 50S-1382
Impedance: 50 Ohm
Configuration: 1P3T solid-state RF switch
Type: Reflective
Frequency Range: 5-2500 MHz
Switching Speed: 20 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing -

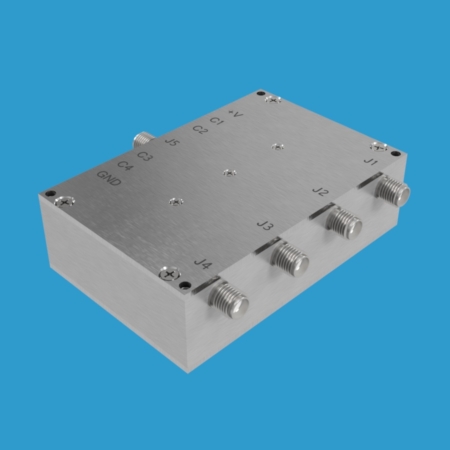

1P4T RF Switch 20-1000 MHz | 50S-536
JFW Model #: 50S-0536
Impedance: 50 Ohm
Configuration: 1P4T solid-state RF switch
Type: Reflective
Frequency Range: 20-1000 MHz
Switching Speed: 5 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing -

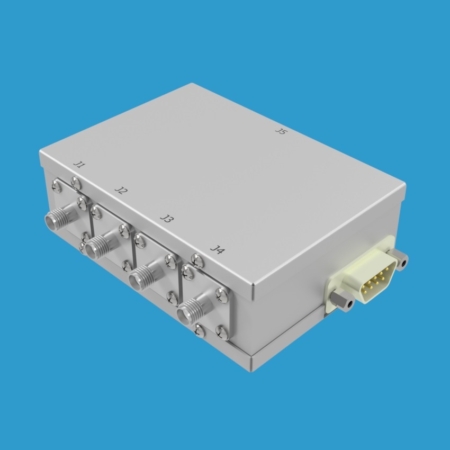

1P4T RF Switch 20-4300 MHz | 50S-1035
JFW Model #: 50S-1035
Impedance: 50 Ohm
Configuration: 1P4T solid-state RF switch
Type: Reflective
Frequency Start: 20-4300 MHz
Switching Speed: 20 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing -
1P4T RF Switch 50-2000 MHz | 50S-884
JFW Model #: 50S-0884
Impedance: 50 Ohm
Configuration: 1P4T solid-state RF switch
Type: Reflective
Frequency Range: 50-2000 MHz
Switching Speed: 5 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing -

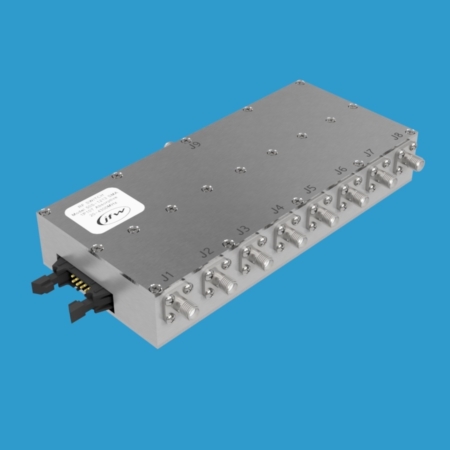

1P8T RF Switch 20-4300 MHz | 50S-1199
JFW Model #: 50S-1199
Impedance: 50 Ohm
Configuration: 1P8T solid-state RF switch
Type: Reflective
Frequency Range: 20-4300 MHz
Switching Speed: 20 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing
