50 Ohm Low Power Termination & Mismatch Load (0.5 to 2 Watts)

JFW’s online 50 Ohm Low power termination and mismatch load models are listed in the table below.  JFW has been designing, manufacturing, and delivering quality terminations and mismatch loads for over 30 years.  Our mismatch loads allow you to select the impedance mismatch your RF testing requires.

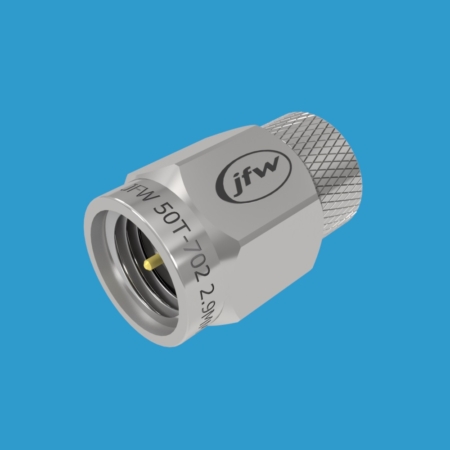

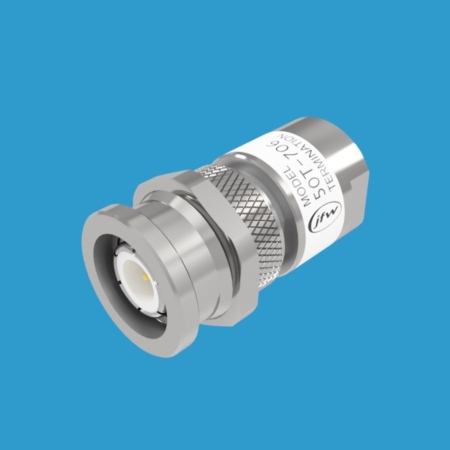

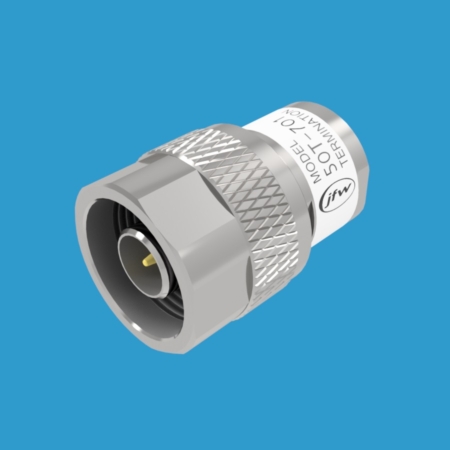

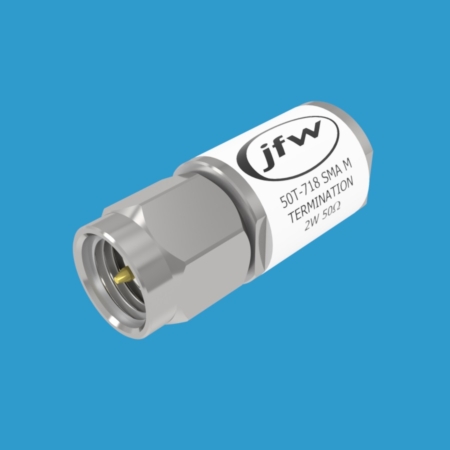

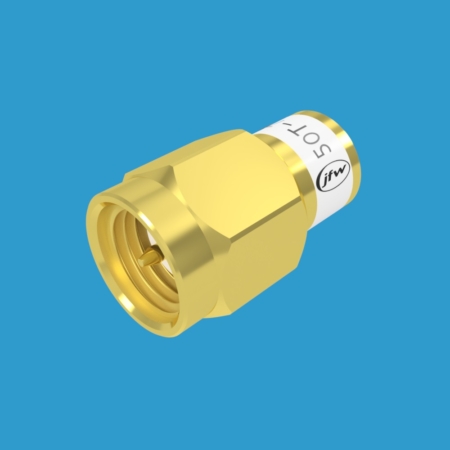

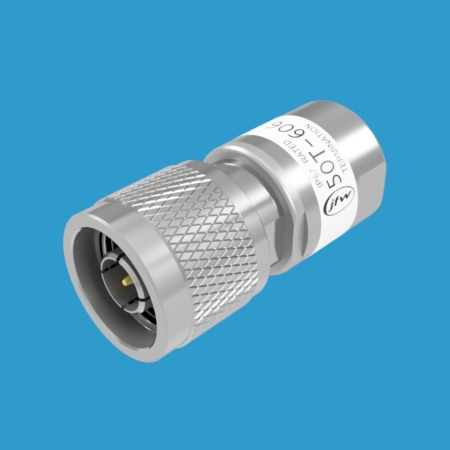

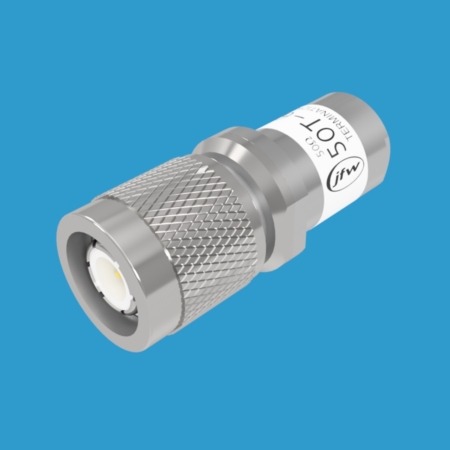

Termination
The terminations listed in the model table are all 50 Ohm impedance.  Terminations are used to properly terminate a port in the matching impedance to prevent RF signal reflections.

Mismatch Load
The mismatch loads in the model table have model numbers that end with -XXX.  The -XXX is used to specify the mismatch value.  For example, JFW model #50T-464-2.0 SMA M is a  2.0:1 mismatch load (i.e. 100 Ohms) with a 50 Ohm SMA male connector.

Frequently Asked Questions

Click the column headers to sort by specification. For your specific application, please contact JFW or use our Inquiry Form.

JFW Model #ImpedanceRF ConnectorFrequency StartFrequency StopRF Input PowerVSWR

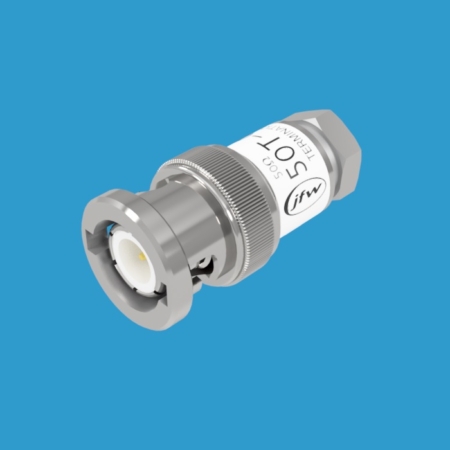

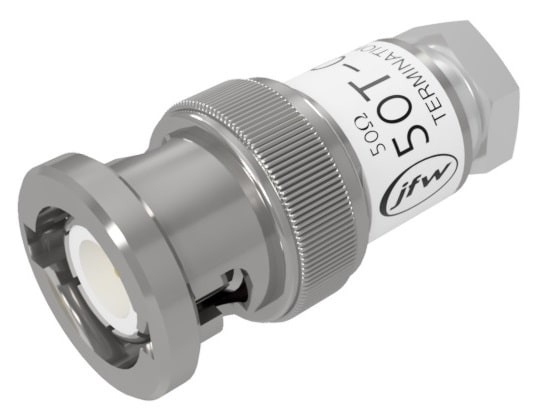

50T-00150 OhmsBNC Male0 MHz (DC)2200 MHz1 Watt1.10:1 DC-2 GHz, 1.15:1 2-2.2 GHz

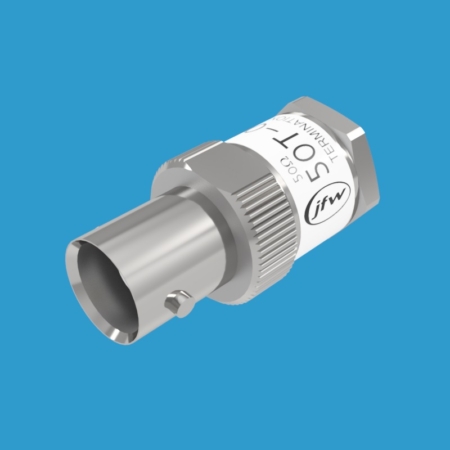

50T-00250 OhmsBNC Female0 MHz (DC)2200 MHz1 Watt1.10:1 DC-2 GHz, 1.15:1 2-2.2 GHz
50T-00750 OhmsN Male0 MHz (DC)8000 MHz2 Watts1.10:1 DC-1 GHz, 1.15:1 1-4 GHz, 1.25:1 4-8 GHz
50T-00850 OhmsN Female0 MHz (DC)8000 MHz1 Watt1.10:1 DC-3 GHz, 1.25:1 3-6 GHz, 1.35:1 6-8 GHz
50T-03950 OhmsSMA Male or Female (Optional Bead Chain)0 MHz (DC)26500 MHz1 Watt1.10:1 DC-8 GHz, 1.20:1 8-18 GHz, 1.35:1 18-26.5 GHz
50T-12950 OhmsSMA Female0 MHz (DC)18000 MHz1 Watt1.05:1 DC-4 GHz, 1.15:1 4-12.4 GHz, 1.20:1 12.4-18 GHz
50T-14250 OhmsN Male (Optional Bead Chain)0 MHz (DC)8000 MHz2 Watts1.10:1 DC-1 GHz, 1.20:1 1-4 GHz, 1.35:1 4-8 GHz
50T-14350 OhmsTNC Male w/Bead Chain0 MHz (DC)8000 MHz2 Watts1.10:1 DC-1 GHz, 1.20:1 1-4 GHz, 1.35:1 4-8 GHz
50T-19950 OhmsN Male0 MHz (DC)18000 MHz2 Watts1.15:1 DC-8 GHz, 1.20:1 8-12.4 GHz, 1.30:1 12.4-18 GHz
50T-26150 Ohms7/16 Female or Male0 MHz (DC)2000 MHz2 Watts1.10:1
50T-27450 Ohms2.99 mm Male0 MHz (DC)40000 MHz1 Watt1.2:1

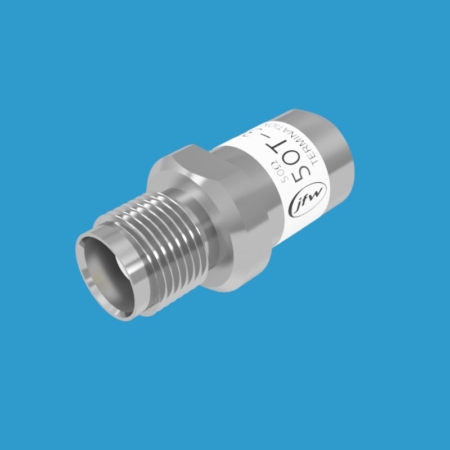

50T-30050 OhmsRP-TNC Female or Male0 MHz (DC)3000 MHz2 Watts1.10:1 DC-1.5 GHz, 1.20:1 1.5-3 GHz
50T-31550 OhmsSMA Male w/Bead Chain0 MHz (DC)18000 MHz1 Watt1.10:1 DC-4 GHz, 1.20:1 4-12.4 GHz, 1.25:1 12.4-18 GHz
50T-32550 OhmsSMA Female0 MHz (DC)2500 MHz1 Watt1.10:1 DC-2 GHz, 1.20:1 2-2.5 GHz

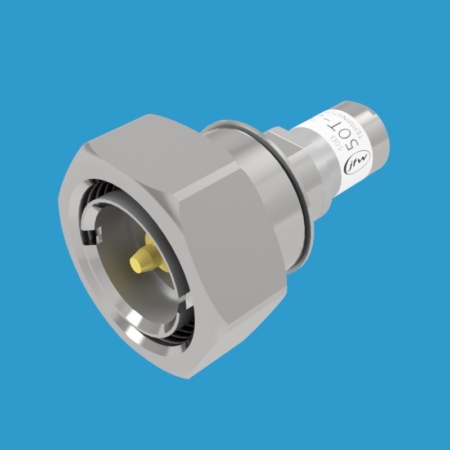

50T-36350 Ohms7/16 Female or Male0 MHz (DC)4000 MHz2 Watts1.10:1 DC-2 GHz, 1.20:1 2-4 GHz
50T-36450 OhmsN Male0 MHz (DC)2200 MHz1 Watt1.05:1 DC-0.5 GHz, 1.10:1 0.5-1 GHz, 1.20:1 1-2.2 GHz

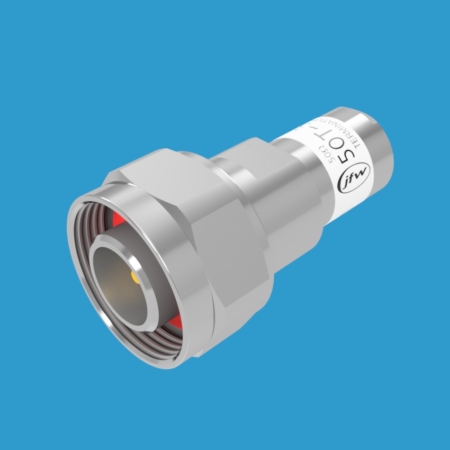

50T-37650 Ohms4.1/9.5, BNC, N, SMA, TNC0 MHz (DC)4000 MHz2 Watts1.10:1
50T-37850 OhmsN Female0 MHz (DC)2200 MHz1 Watt1.05:1 DC-0.5 GHz, 1.10:1 0.5-1 GHz, 1.20:1 1-2.2 GHz
50T-45550 OhmsSMA Male0 MHz (DC)18000 MHz1 Watt1.10:1 DC-8 GHz, 1.15:1 8-12.4 GHz, 1.20:1 12.4-18 GHz
50T-464-XXX50 OhmsBNC, N, SMA, TNC0 MHz (DC)3000 MHz2 Watts1.15:1 Termination +/- 10% Mismatch
50T-588-XXX50 OhmsBNC, N, SMA, TNC0 MHz (DC)1000 MHz2 Watts1.15:1 Termination +/- 5% Mismatch
50T-59650 Ohms2.4 mm Male0 MHz (DC)50 GHz0.5 Watts1.4:1 DC-40 GHz, 1.6:1 40-50 GHz
50T-60550 Ohms4.3/10 Maile or Female0 MHz (DC)6000 MHz2 Watts1.1:1

If you have specific mechanical restrictions, RF specifications, or required unit screening, please contact us. JFW does not charge NRE’s for new termination models. We pride ourselves in the ability to offer custom models with pricing in-line with our catalog models.
