DC Cable assemblies by JFW Industries, Inc. DC Cables

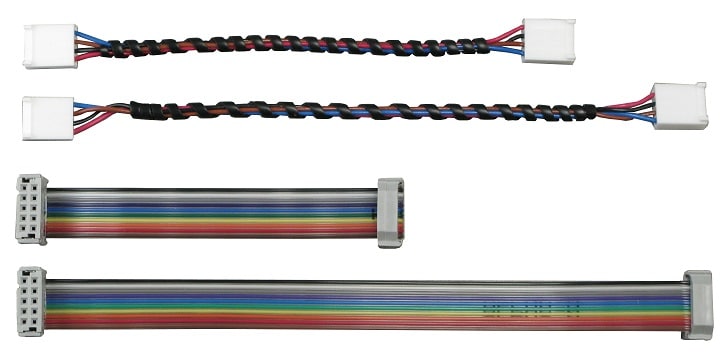

JFW offers a line of DC cable assemblies.  These 4 pin, 9 pin, and 10 pin cable assemblies can be used to interface with many of JFW’s programmable attenuators and RF switches.  If you have any questions about interfacing to a JFW RF component, please email our engineering department directly.

For your specific application, please email JFW for assistance or use our Inquiry Form.

JFW Model #DescriptionMating Connector
016-168-XX10 pin ribbon cable (female/female)3M #D2510-6002-AR (10 pin male straight) or 3M #3793-5303 (10 pin male right angle)
016-306-XX10 pin ribbon cable (female/open wires)3M #D2510-6002-AR (10 pin male straight) or 3M #3793-5303 (10 pin male right angle)
016-330-XX4 pin friction lock cable (female/open wires)Molex #22-11-2042 (2.54mm straight male) or Molex #22-12-2044 (2.54mm right angle male)
016-551-XX9 pin D-sub DE-9S (female/female)DE-9P (9 pin male D-subminiature)
016-552-XX9 pin D-sub DE-9S (female/open wires)DE-9P (9 pin male D-subminiature)
016-554-XX4 pin friction lock cable (female/female)Molex #22-11-2042 (2.54mm straight male) or Molex #22-12-2044 (2.54mm right angle male)
  • 016-168-XX DC Cable Assembly

    JFW Model #: 016-168-XX
    Description: 10 pin ribbon cable (female/female)
    Mating Connector: 3M #D2510-6002-AR (10 pin male straight) or 3M #3793-5303 (10 pin male right angle)
    Documentation: Drawing

    Please insert desired cable length in REMARKS field of quote form.

  • 016-306-XX DC Cable Assembly

    JFW Model #: 016-306-XX
    Description: 10 pin ribbon cable (female/female)
    Mating Connector: 3M #D2510-6002-AR (10 pin male straight) or 3M #3793-5303 (10 pin male right angle)
    Documentation: Drawing

    Please insert desired cable length in REMARKS field of quote form.

  • 016-330-XX DC Cable Assembly

    JFW Model #: 016-330-XX
    Description: 4 pin friction lock cable (female/open wires)
    Mating Connector: Molex #22-11-2042 (2.54mm straight male) or Molex #22-12-2044 (2.54mm right angle male)
    Documentation: Drawing

    Please insert desired cable length in REMARKS field of quote form.

  • 016-551-XX DC Cable Assembly

    JFW Model #: 016-551-XX
    Description: 9 pin D-sub DE-9S (female/female)
    Mating Connector: DE-9P (9 pin male D-subminiature)
    Documentation: Drawing

    Please insert desired cable length in REMARKS field of quote form.

  • 016-552-XX DC Cable Assembly

    JFW Model #: 016-552-XX
    Description: 9 pin D-sub DE-9S (female/open wires)
    Mating Connector: DE-9P (9 pin male D-subminiature)
    Documentation: Drawing

    Please insert desired cable length in REMARKS field of quote form.

  • 016-554-XX DC Cable Assembly

    JFW Model #: 016-552-XX
    Description: 4 pin friction lock cable (female/female)
    Mating Connector: Molex #22-11-2042 (2.54mm straight male) or Molex #22-12-2044 (2.54mm right angle male)
    Documentation: Drawing

    Please insert desired cable length in REMARKS field of quote form.
