50 Ohm feedthru termination with BNC male/female RF connectors

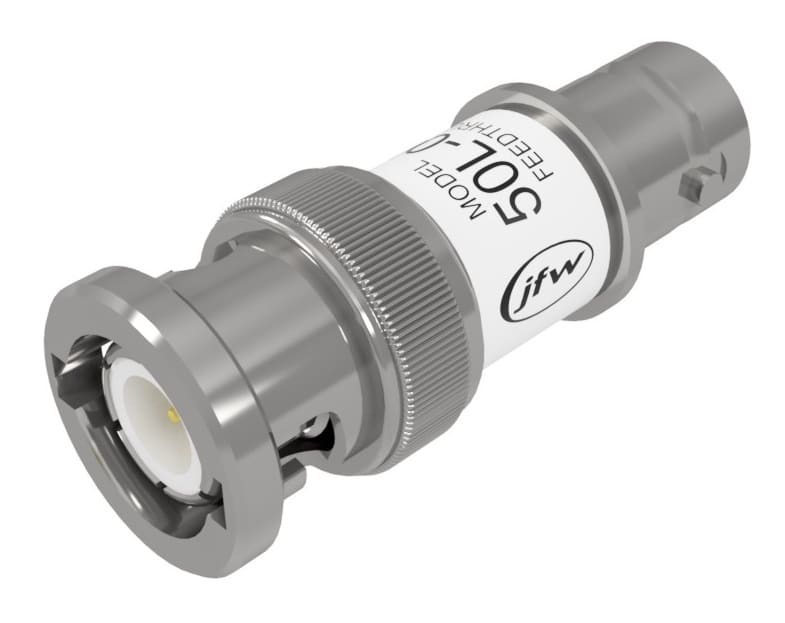

50 Ohm feedthru termination with BNC male/female connectorsFeedthru Terminations

The JFW feedthru termination has been a trusted component in RF laboratories for decades.  A feedthru termination is used to connect a low impedance coaxial RF cable to the high impedance inputs of test instruments (i.e. oscilloscope) and maintain proper impedance loading of the RF cable.  Use a 50 Ohm feedthru termination with 50 Ohm RF cables.  Use a 75 Ohm feedthru terminations with 75 Ohm RF cables.

Please contact JFW for assistance or use our Inquiry Form.

JFW Model #ImpedanceFrequency StartFrequency StopRF Input PowerRF Connectors

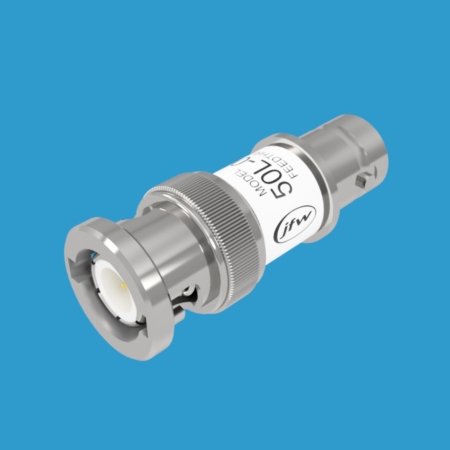

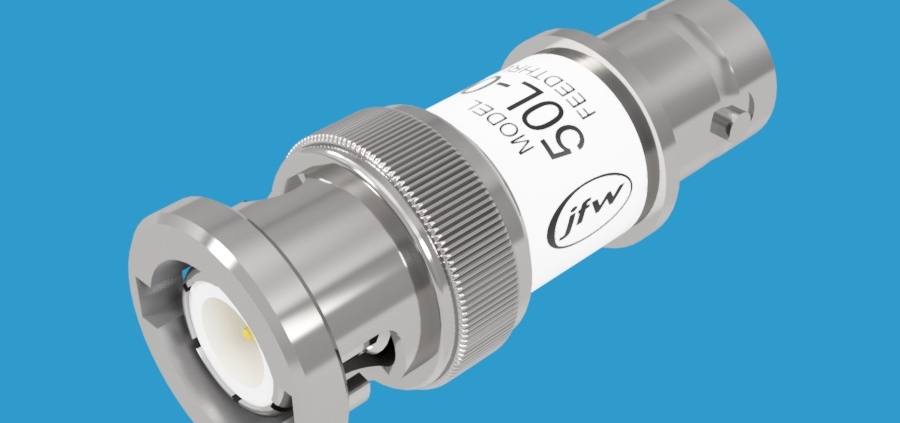

50L-00150 OhmDC1000 MHz1 WattBNC

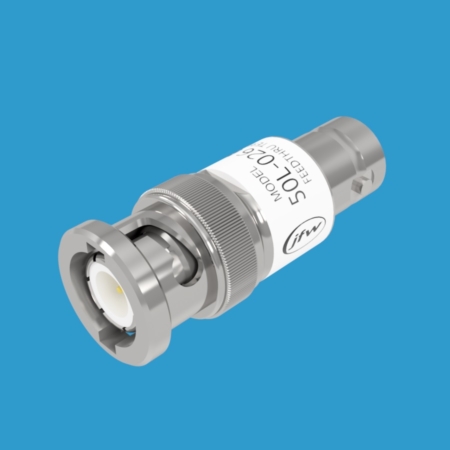

50L-02650 OhmDC1000 MHz2 WattBNC

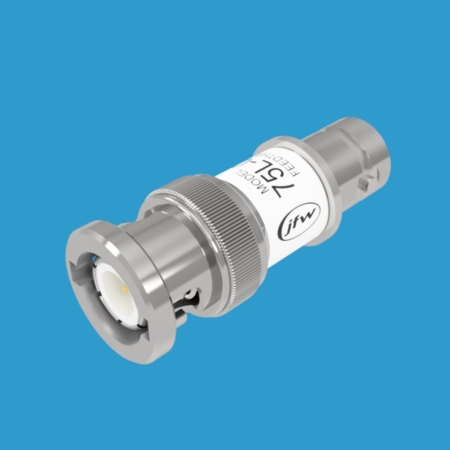

75L-00175 OhmDC500 MHz1 WattBNC
75L-00475 OhmDC1000 MHz1 WattBNC
