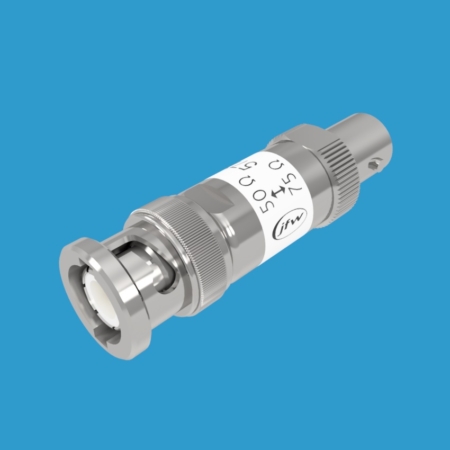

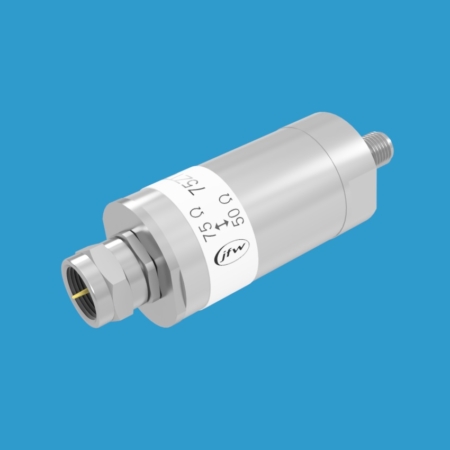

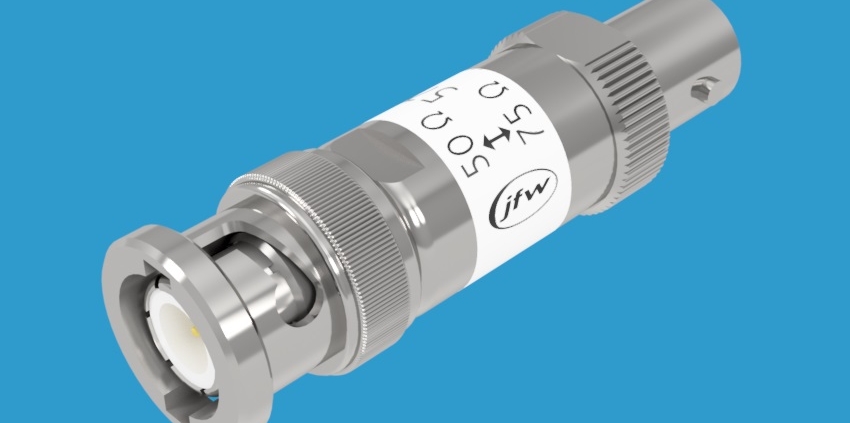

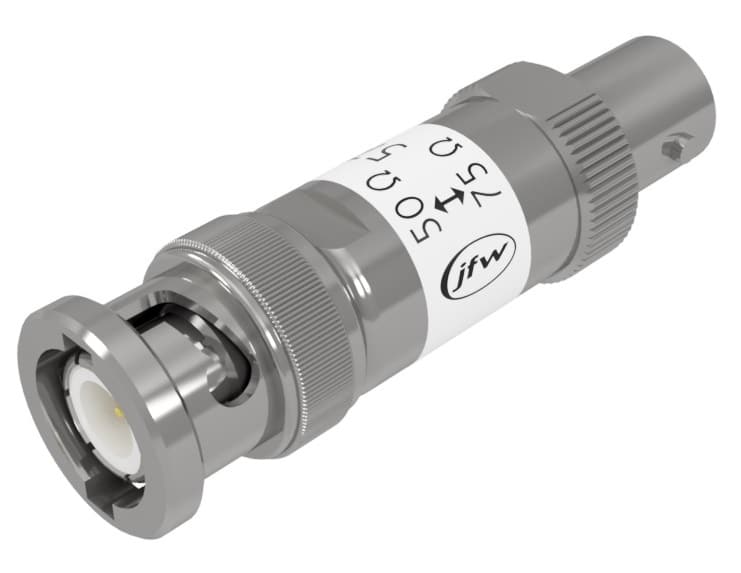

Impedance Matching Transformers

JFW’s online impedance matching transformer models are listed in the table below.  An impedance matching transformer is a low loss device used to match two systems that have different impedance.  The models below are used to match a 50 Ohm system to a 75 Ohm system.  These models are bandwidth limited due to the internal reactive transformer designs.

Impedance Matching Transformer Options

• Any RF connector combination (BNC, SMA, N, TNC, 7/16, F, reverse polarity, with bead-chains and more)
• Any impedance matched (50 Ohm, 75 Ohm, 93 Ohm, 100 Ohm, 125 Ohm and many more)
• Affordable custom models available upon request

Frequently Asked Questions

For your specific application, please contact JFW for assistance or use our Inquiry Form.

JFW Model #	Impedance	Frequency Start	Frequency Stop	Attenuation Loss	50 Ohm End Connector	75 Ohm End Connector

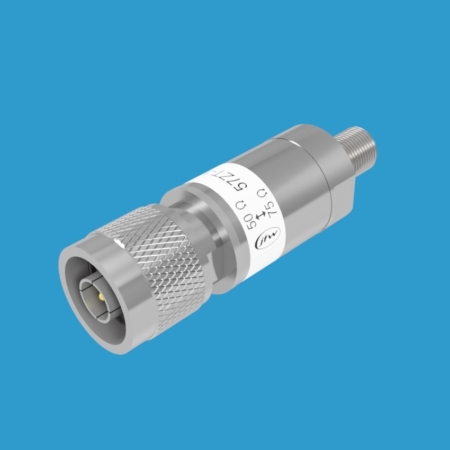

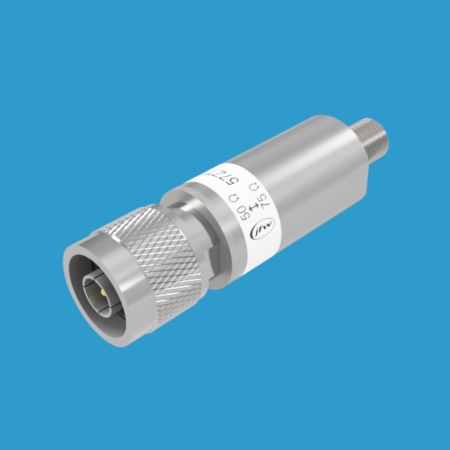

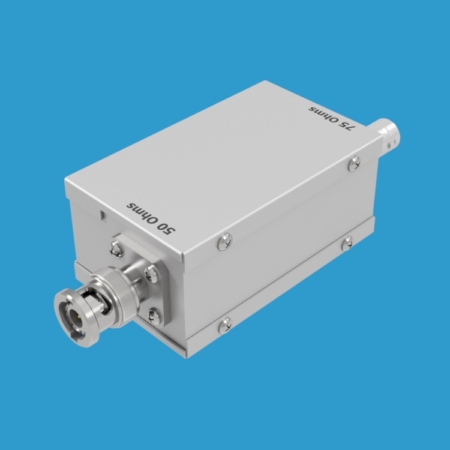

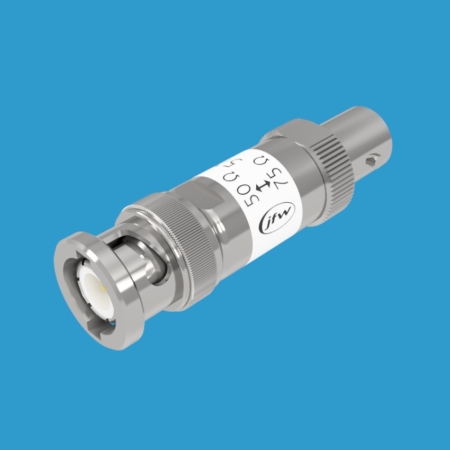

57ZT	50 Ohm to 75 Ohm	0.5 MHz	600 MHz	0.75 dB	BNC, N, SMA, TNC	BNC, F, N, TNC
57ZT-1.2G	50 Ohm to 75 Ohm	5 MHz	1218 MHz	1.25 dB	BNC, N, SMA	BNC, F, N
57ZT-1G	50 Ohm to 75 Ohm	0.5 MHz	1000 MHz	0.75 dB	BNC, N, SMA, TNC	BNC, F, N, TNC
57ZTT-AA	50 Ohm to 75 Ohm	800 MHz	2200 MHz	0.5 dB	BNC, N, SMA, TNC	BNC, F, N, TNC
57ZTT-AJ	50 Ohm to 75 Ohm	500 MHz	3000 MHz	0.5 dB	BNC, N, SMA	BNC, F, N
57ZTT-AN	50 Ohm to 75 Ohm	800 MHz	2200 MHz	0.5 dB	BNC, N, SMA, TNC	BNC, F, N, TNC
57ZTT-AP	50 Ohm to 75 Ohm	800 MHz	2200 MHz	0.5 dB w/ DC Block	BNC, N, SMA, TNC	BNC, F, N, TNC

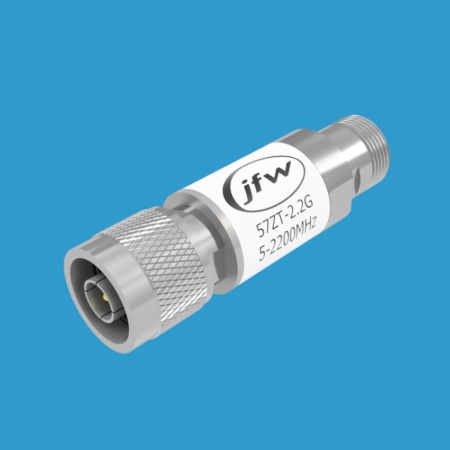

57ZT-2.2G	50 Ohm to 75 Ohm	5 MHz	2200 MHz	1.8 dB	BNC, N, SMA	BNC, F, N
