RF Detectors

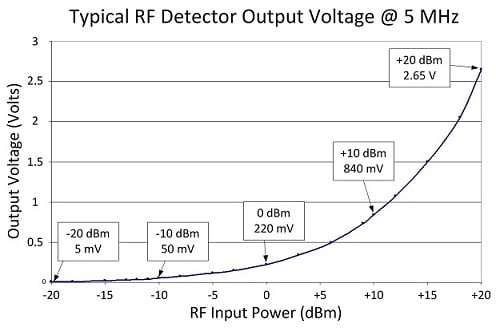

JFW’s online RF detector models are listed in the table below.  Our RF detectors use a circuit with a zero-biased Schottky detector diode to convert the RF input signal into a DC output signal.  As the amount of RF input power varies so does the DC output signal level.

RF detectors are typically used for RF detection on a RF path.  Insert a directional coupler into the RF path with the RF detector on the coupled port.  The coupled RF signal will be converted to a DC signal by the RF detector.  The DC signal can then be used by a microprocessor to determine whether RF is present on the RF path based on the amplitude of the DC signal level.

• RF Detectors available with positive or negative DC outputs
• 50 Ohm and 75 Ohm impedance models available
• Various connector combinations available (i.e. N/SMA, SMA/BNC)

For your specific application, please contact JFW for assistance or use our Inquiry Form.

JFW Model #	Impedance	Frequency Start	Frequency Stop	RF Input Power	RF Connectors

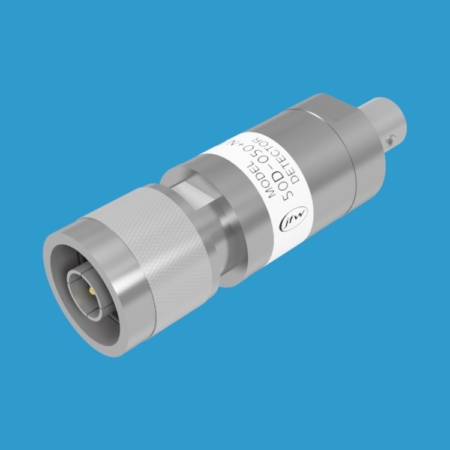

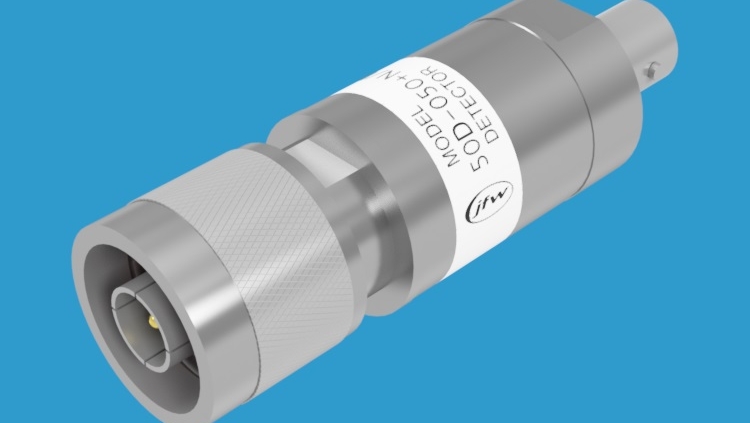

50D-050	50 Ohm	1 MHz	1000 MHz	100 mW	BNC, N, SMA, TNC

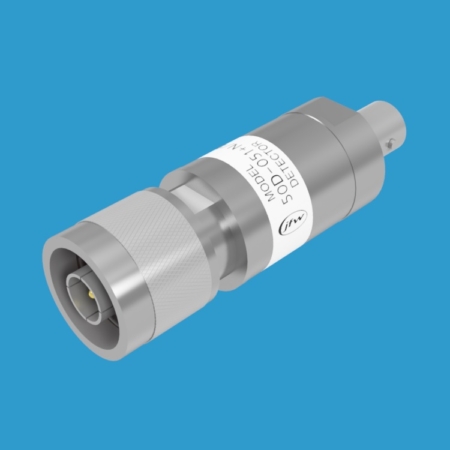

50D-051	50 Ohm	1 MHz	2000 MHz	100 mW	BNC, N, SMA, TNC, 7/16

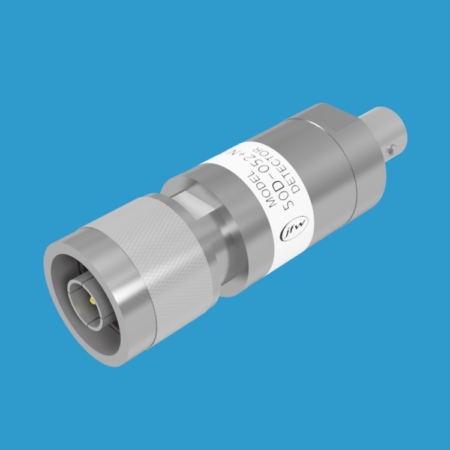

50D-052	50 Ohm	1 MHz	3000 MHz	100 mW	BNC, N, SMA, TNC

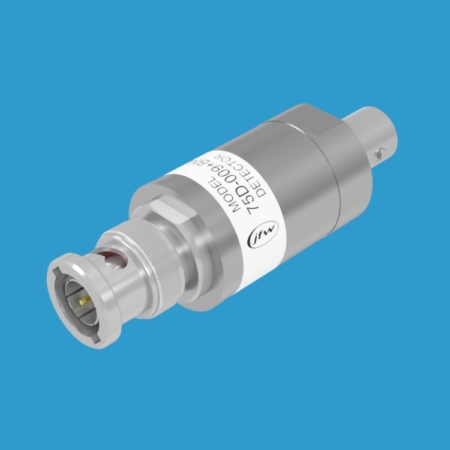

75D-009	75 Ohm	1 MHz	1000 MHz	100 mW	BNC, F, N
75D-010	75 Ohm	1 MHz	2200 MHz	100 mW	BNC, F, N
