You are here: Home1 / Shop2 / Manually Variable Attenuators3 / Benchtop Manual Attenuators (Enclosure)4 / 50 Ohm Benchtop Attenuator DC-2 GHz 0-110dB x 1dB | 50BR-001
Benchtop Manual Attenuator | Model 50BR-001

50 Ohm Benchtop Attenuator DC-2 GHz 0-110dB x 1dB | 50BR-001

JFW Model #: 50BR-001
Type: Manually variable attenuator
Enclosure: Benchtop enclosure
Impedance: 50 Ohm
dB Total: 110 dB
dB Step: 1 dB
Frequency Range: DC-2000 MHz
RF Input Power: 2 Watts
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing

Clear
Categories: Benchtop Manual Attenuators (Enclosure), Manually Variable Attenuators
  • Description
  • Additional information

Description

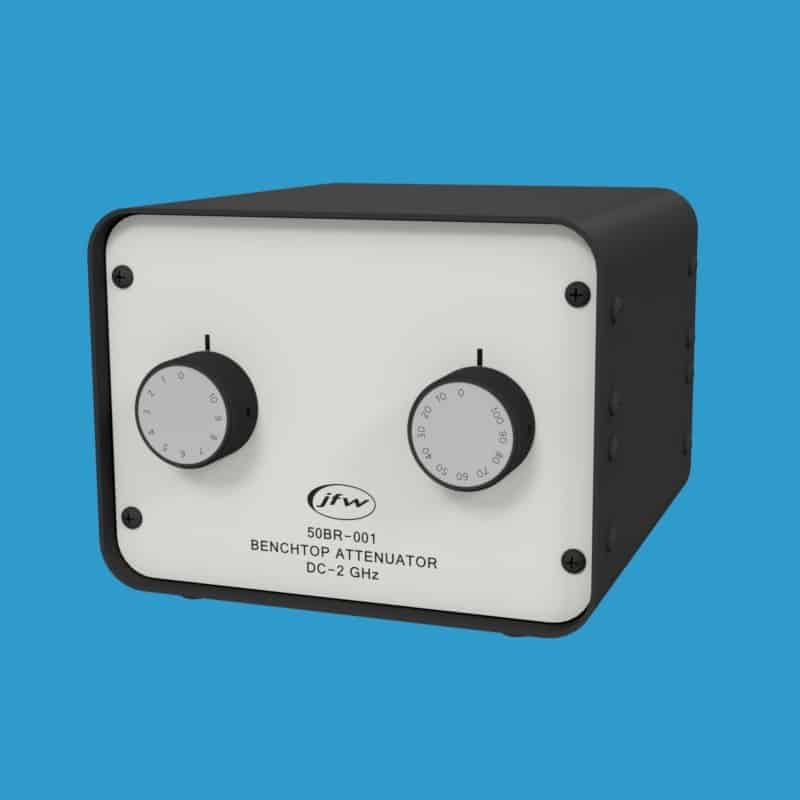

Model 50BR-001 is a 50 Ohm manual step attenuator in a benchtop enclosure.  The attenuation range is 0 to 110dB by 1dB steps.  It operates DC-2000 MHz and is rated for 2 Watts average of RF input power.  There are two knobs on the front panel used to set the attenuation value.  One knob is 1dB step.  The other knob is 10dB step.  It is available with 50 Ohm coaxial RF connectors:  BNC, N, SMA or TNC female.  The two RF connectors are located on the rear panel.

Additional information

Weight 2.3 lbs
Connector Type

BNC Female, N Female, SMA Female, TNC Female
