You are here: Home1 / Shop2 / Manually Variable Attenuators3 / Benchtop Manual Attenuators (L-Bracket)4 / 50 Ohm Benchtop Attenuator DC-1 GHz 0-111dB x 0.1dB | 50BR-022
Benchtop Manual Attenuator | Model 50BR-022

50 Ohm Benchtop Attenuator DC-1 GHz 0-111dB x 0.1dB | 50BR-022

JFW Model #: 50BR-022
Type: Manually variable attenuator
Enclosure: Benchtop L-bracket
Impedance: 50 Ohm
dB Total: 111 dB
dB Step: 0.1 dB
Frequency Range: DC-1000 MHz
RF Input Power: 2 Watts
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing

Clear
Categories: Benchtop Manual Attenuators (L-Bracket), Manually Variable Attenuators
  • Description
  • Additional information

Description

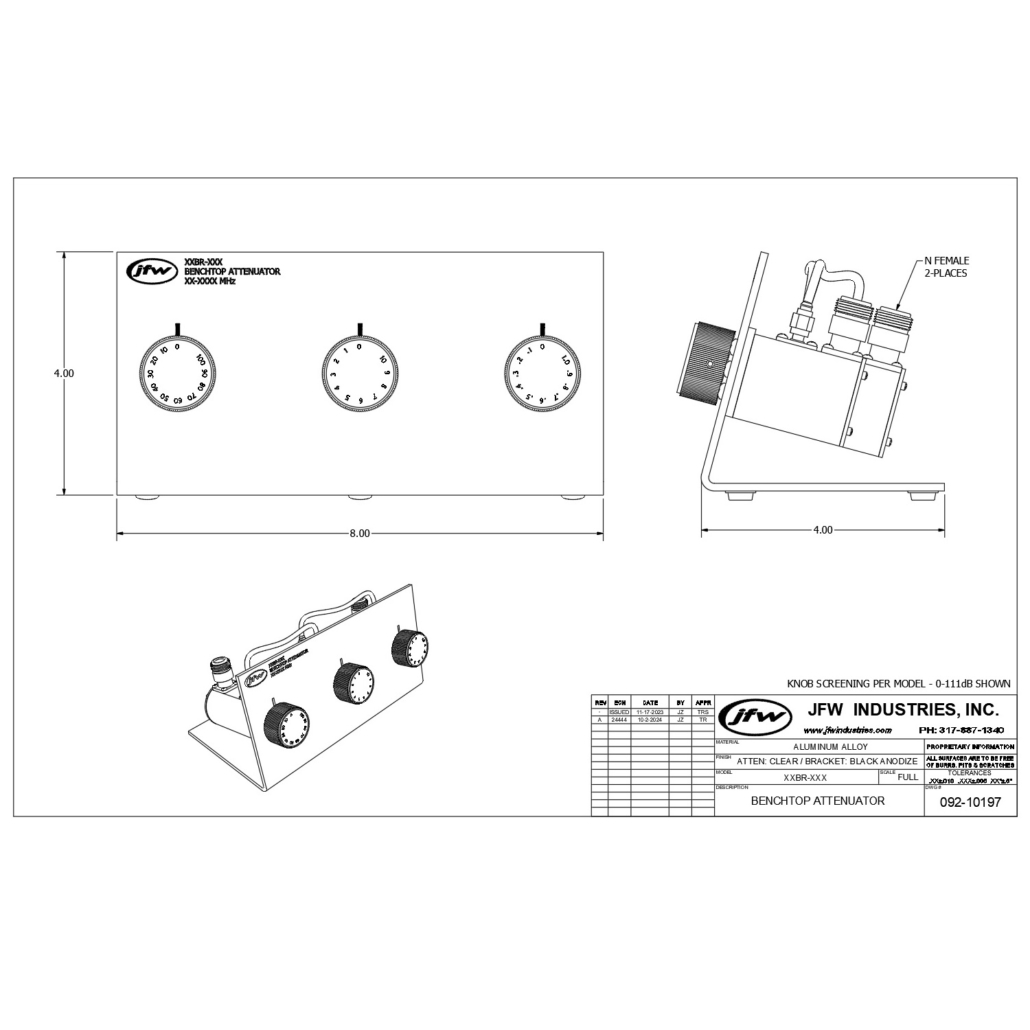

Model 50BR-022 is a 50 Ohm manual step attenuator mounted on a benchtop L-bracket.  The attenuation range is 0 to 111dB by 0.1dB steps.  It operates DC-1000 MHz and is rated for 2 Watts average of RF input power.  There are three knobs on the front panel used to set the attenuation value (0.1dB step knob, 1dB step knob, 10dB step knob).  It is available with 50 Ohm coaxial RF connectors:  BNC, N, SMA or TNC female.  The two RF connectors are located on the rear of the attenuator cases.

Additional information

Weight N/A
Connector Type

BNC Female, N Female, SMA Female, TNC Female
