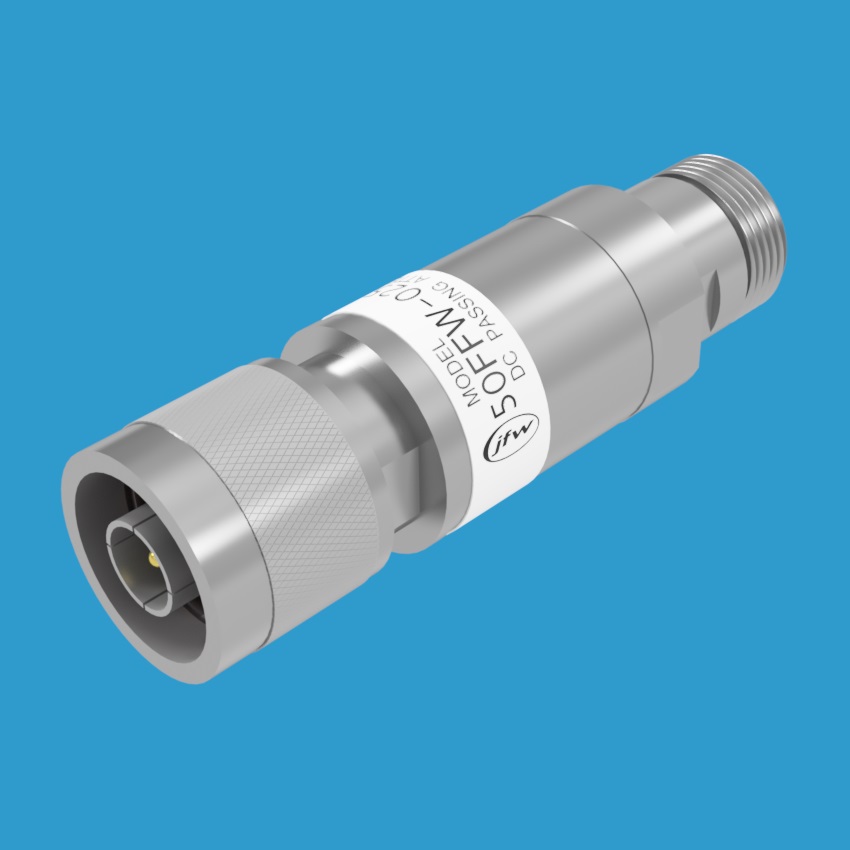

50FFW-XXX-N dc passing fixed attenuator 50 Ohm 4 Amps

DC Passing Attenuator 950-2150MHz | 50FFW-XXX

JFW Model #: 50FFW-XXX
Impedance: 50 Ohm
Frequency Range: 950-2150 MHz
RF Input Power: +21 dBm DC Passing
DC Current Handling: 4 Amps
Attenuation Values: 1-25 dB
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing (N) | Drawing (SMA)

Clear
Categories: 50 Ohm Fixed Attenuators (0.5 to 2 Watts), Fixed Attenuators
  • Description
  • Additional information

Description

Model 50FFW-xxx is a DC passing coaxial fixed attenuator with 50 Ohm impedance.  This attenuator will only attenuate the RF signal (i.e. 950-2150 MHz).  The DC signal will not be attenuated.  It is rated for 4 Amps DC current and +21 dBm RF input power.  Available dB values from 1dB to 25dB.

For model 50FFW-XXX, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.

Example Model Numbers:

50FFW-001 N   (1dB with N male/female)
50FFW-002 N   (2dB with N male/female)
50FFW-003 N   (3dB with N male/female)
50FFW-004 SMA   (4dB with SMA male/female)
50FFW-005 SMA   (5dB with SMA male/female)
50FFW-006 SMA   (6dB with SMA male/female)
50FFW-007 SMA   (7dB with SMA male/female)
50FFW-008 SMA   (8dB with SMA male/female)
50FFW-009 TNC   (9dB with TNC male/female)
50FFW-010 TNC   (10dB with TNC male/female)
50FFW-011 TNC   (11dB with TNC male/female)
50FFW-012 TNC   (12dB with TNC male/female)
50FFW-013 TNC   (13dB with TNC male/female)
50FFW-014 TNC   (14dB with TNC male/female)
50FFW-015 TNC   (15dB with TNC male/female)
50FFW-016 TNC   (16dB with TNC male/female)
50FFW-017 TNC   (17dB with TNC male/female)
50FFW-018 TNC   (18dB with TNC male/female)
50FFW-019 TNC   (19dB with TNC male/female)
50FFW-020 BNC   (20dB with BNC male/female)
50FFW-021 BNC   (21dB with BNC male/female)
50FFW-022 BNC   (22dB with BNC male/female)
50FFW-023 BNC   (23dB with BNC male/female)
50FFW-024 BNC   (24dB with BNC male/female)
50FFW-025 BNC   (25dB with BNC male/female)

Additional information

Attenuation Value

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25

Connector Type

BNC, N, SMA, TNC
