You are here: Home1 / Shop2 / Fixed Attenuators3 / 50 Ohm Fixed Attenuators (5 to 50 Watts)4 / 10 Watt Fixed Attenuator DC-2GHz | 50FH-xxx-10

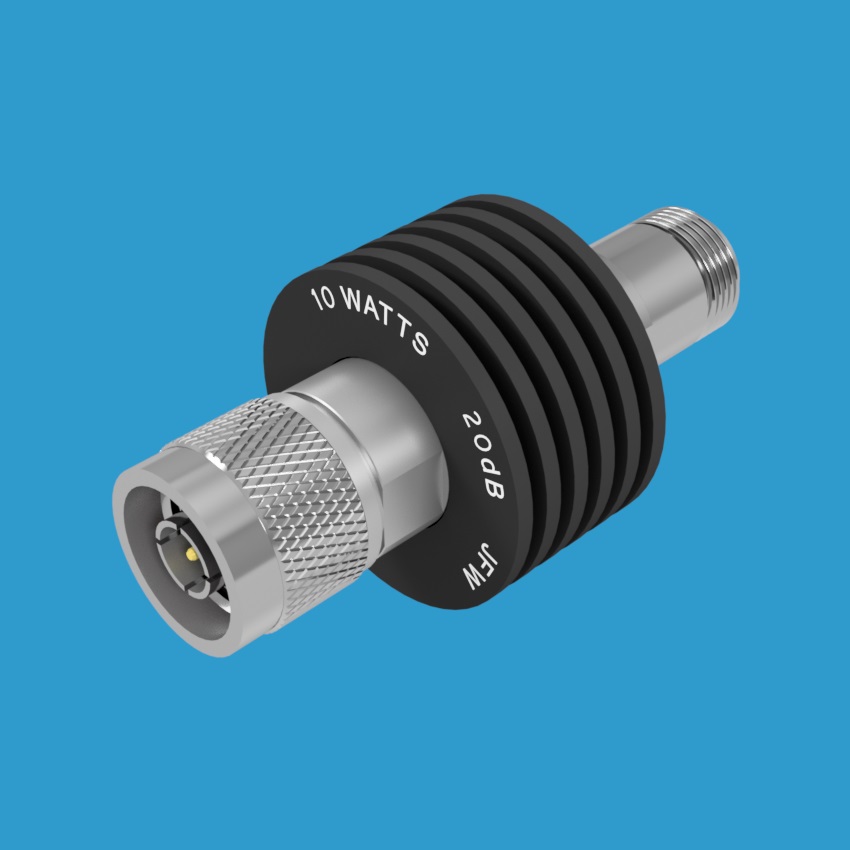

JFW model 50FH-XXX-10 fixed attenuator 10 Watt with 50 Ohm N male/female

10 Watt Fixed Attenuator DC-2GHz | 50FH-xxx-10

JFW Model #: 50FH-XXX-10
Impedance: 50 Ohms
Frequency Start: 0 MHz (DC)
Frequency Stop: 2000 MHz
RF Input Power: 10 Watts
Attenuation Values: 1-20 dB (DC-2 GHz) 21-30 dB (DC-1 GHz)
Heatsink Style: Round
RF Connectors: BNC, N, SMA, TNC, 4.1/9.5, 4.3/10, 7/16
Documentation: Data Sheet | Drawing

If Connector Type is Other, please specify in REMARKS field of the Request a Quote form.

Clear
Categories: 50 Ohm Fixed Attenuators (5 to 50 Watts), Fixed Attenuators
  • Description
  • Additional information

Description

50 Ohm coaxial fixed attenuator rated at 10 Watts maximum RF input power.  For dB values 1-20dB the unit operates DC-2000MHz.  For dB values 21-30dB the unit operates at DC-1000MHz.

For model 50FH-XXX-10, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.

Example Model Numbers:

50FH-001-10 N   (1dB with N male/female)
50FH-002-10 N   (2dB with N male/female)
50FH-003-10 N   (3dB with N male/female)
50FH-004-10 N   (4dB with N male/female)
50FH-005-10 N   (5dB with N male/female)

50FH-006-10 BNC   (6dB with BNC male/female)
50FH-007-10 BNC   (7dB with BNC male/female)
50FH-008-10 BNC   (8dB with BNC male/female)
50FH-009-10 BNC   (9dB with BNC male/female)
50FH-010-10 BNC   (10dB with BNC male/female)

50FH-011-10 TNC   (11dB with TNC male/female)
50FH-012-10 TNC   (12dB with TNC male/female)
50FH-013-10 TNC   (13dB with TNC male/female)
50FH-014-10 TNC   (14dB with TNC male/female)
50FH-015-10 TNC   (15dB with TNC male/female)

50FH-016-10 SMA   (16dB with SMA male/female)
50FH-017-10 SMA   (17dB with SMA male/female)
50FH-018-10 SMA   (18dB with SMA male/female)
50FH-019-10 SMA   (19dB with SMA male/female)

50FH-020-10 7/16   (20dB with 7/16 male/female)
50FH-021-10 7/16   (21dB with 7/16 male/female)
50FH-022-10 7/16   (22dB with 7/16 male/female)
50FH-023-10 7/16   (23dB with 7/16 male/female)

50FH-024-10 4.3-10.0   (24dB with 4.3-10.0 male/female)
50FH-025-10 4.3-10.0   (25dB with 4.3-10.0 male/female)
50FH-026-10 4.3-10.0   (26dB with 4.3-10.0 male/female)
50FH-027-10 4.3-10.0   (27dB with 4.3-10.0 male/female)

50FH-028-10 4.1-9.5   (28dB with 4.1-9.5 male/female)
50FH-029-10 4.1-9.5   (29dB with 4.1-9.5 male/female)
50FH-030-10 4.1-9.5   (30dB with 4.1-9.5 male/female)

Non-standard and mixed RF connector configurations are available upon request:

50FH-003-10 SMA F/F   (SMA female/female)
50FH-006-10 TNC M/M   (TNC male/male)
50FH-010-10 BNC M/SMA F   (BNC male/SMA female)
50FH-010-10 BNC F/SMA F   (BNC female/SMA female)
50FH-020-10 7/16 M/N F   (7/16 male/N female)

Additional information

Attenuation Value

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30

Connector Type

4.1/9.5, 4.3/10, 7/16, BNC, N, Other, SMA, TNC
