You are here: Home1 / Shop2 / Fixed Attenuators3 / 50 Ohm Fixed Attenuators (75 to 1000 Watts)4 / 100 Watt Fixed Attenuator DC-1GHz | 50FH-XXX-100

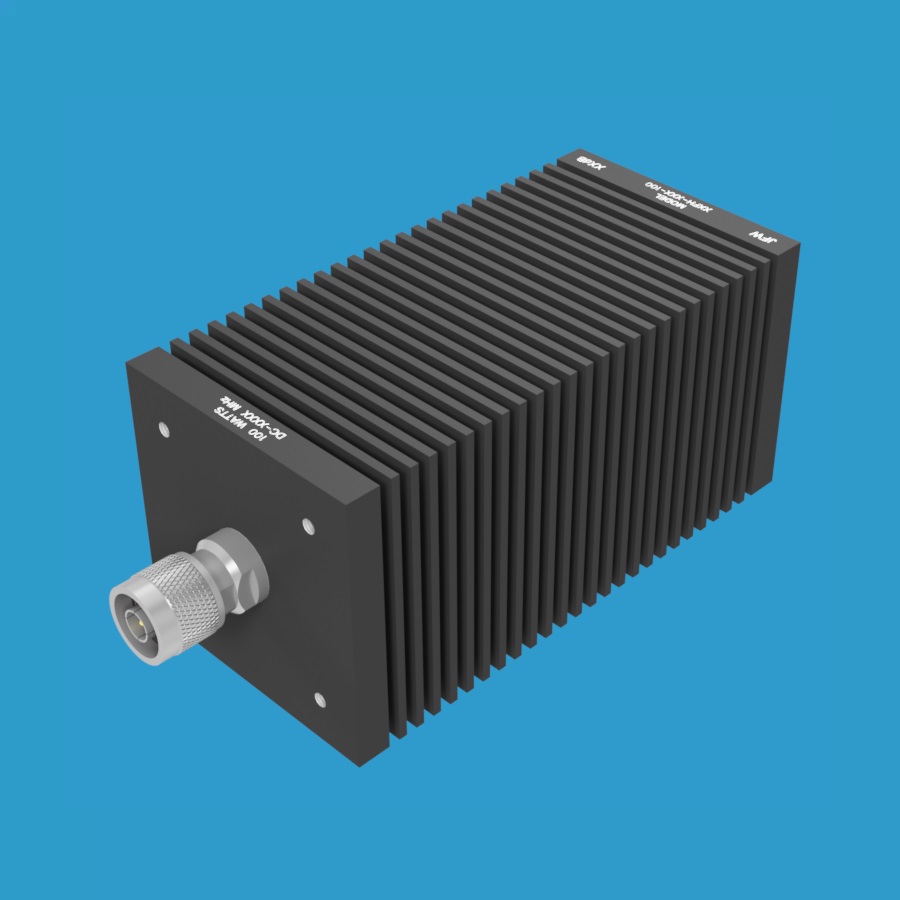

100 Watt fixed attenuator with 50 Ohm N male/female connectors

100 Watt Fixed Attenuator DC-1GHz | 50FH-XXX-100

JFW Model #: 50FH-XXX-100
Impedance: 50 Ohm
Frequency Range: DC-1000 MHz
RF Input Power: 100 Watts
Attenuation Values: 1-50 dB
Heatsink Style: Square
RF Connectors: BNC, N, SMA, TNC, 4.1/9.5, 4.3/10, 7/16
Documentation: Data Sheet | Drawing

If Connector Type is Other, please specify in REMARKS field of the Request a Quote form.

Clear
Categories: 50 Ohm Fixed Attenuators (75 to 1000 Watts), Fixed Attenuators
  • Description
  • Additional information

Description

50 Ohm coaxial fixed attenuator rated at 100 Watts maximum RF input power that operates DC-1000 MHz.  Available dB values from 1dB to 50dB.  The heatsink is square with mounting holes on the bottom side and both ends.

For model 50FH-XXX-100, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.

Example Model Numbers:

50FH-001-100 N   (1dB with N male/female)
50FH-002-100 N   (2dB with N male/female)
50FH-003-100 N   (3dB with N male/female)
50FH-004-100 N   (4dB with N male/female)
50FH-005-100 N   (5dB with N male/female)

50FH-006-100 BNC   (6dB with BNC male/female)
50FH-007-100 BNC   (7dB with BNC male/female)
50FH-008-100 BNC   (8dB with BNC male/female)
50FH-009-100 BNC   (9dB with BNC male/female)
50FH-010-100 BNC   (10dB with BNC male/female)

50FH-011-100 TNC   (11dB with TNC male/female)
50FH-012-100 TNC   (12dB with TNC male/female)
50FH-013-100 TNC   (13dB with TNC male/female)
50FH-014-100 TNC   (14dB with TNC male/female)
50FH-015-100 TNC   (15dB with TNC male/female)

50FH-016-100 SMA   (16dB with SMA male/female)
50FH-017-100 SMA   (17dB with SMA male/female)
50FH-018-100 SMA   (18dB with SMA male/female)
50FH-019-100 SMA   (19dB with SMA male/female)
50FH-020-100 SMA   (20dB with SMA male/female)

50FH-021-100 7/16   (21dB with 7/16 male/female)
50FH-022-100 7/16   (22dB with 7/16 male/female)
50FH-023-100 7/16   (23dB with 7/16 male/female)
50FH-024-100 7/16   (24dB with 7/16 male/female)
50FH-025-100 7/16   (25dB with 7/16 male/female)
50FH-026-100 7/16   (26dB with 7/16 male/female)
50FH-027-100 7/16   (27dB with 7/16 male/female)
50FH-028-100 7/16   (28dB with 7/16 male/female)
50FH-029-100 7/16   (29dB with 7/16 male/female)
50FH-030-100 7/16   (30dB with 7/16 male/female)

50FH-031-100 4.3-10.0   (31dB with 4.3-10.0 male/female)
50FH-032-100 4.3-10.0   (32dB with 4.3-10.0 male/female)
50FH-033-100 4.3-10.0   (33dB with 4.3-10.0 male/female)
50FH-034-100 4.3-10.0   (34dB with 4.3-10.0 male/female)
50FH-035-100 4.3-10.0   (35dB with 4.3-10.0 male/female)
50FH-036-100 4.3-10.0   (36dB with 4.3-10.0 male/female)
50FH-037-100 4.3-10.0   (37dB with 4.3-10.0 male/female)
50FH-038-100 4.3-10.0   (38dB with 4.3-10.0 male/female)
50FH-039-100 4.3-10.0   (39dB with 4.3-10.0 male/female)
50FH-040-100 4.3-10.0   (40dB with 4.3-10.0 male/female)

50FH-041-100 4.1-9.5   (41dB with 4.1-9.5 male/female)
50FH-042-100 4.1-9.5   (42dB with 4.1-9.5 male/female)
50FH-043-100 4.1-9.5   (43dB with 4.1-9.5 male/female)
50FH-044-100 4.1-9.5   (44dB with 4.1-9.5 male/female)
50FH-045-100 4.1-9.5   (45dB with 4.1-9.5 male/female)
50FH-046-100 4.1-9.5   (46dB with 4.1-9.5 male/female)
50FH-047-100 4.1-9.5   (47dB with 4.1-9.5 male/female)
50FH-048-100 4.1-9.5   (48dB with 4.1-9.5 male/female)
50FH-049-100 4.1-9.5   (49dB with 4.1-9.5 male/female)
50FH-050-100 4.1-9.5   (50dB with 4.1-9.5 male/female)

Non-standard and mixed RF connector configurations are available upon request:

50FH-003-100 N F/F   (N female/female)
50FH-006-100 N M/M   (N male/male)
50FH-010-100 N M/SMA F   (N male/SMA female)
50FH-020-100 7/16 M/N F   (7/16 male/N female)
50FH-020-100 4.1-9.5 M/N F   (4.1-9.5 male/N female)

Additional information

Attenuation Value

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50

Connector Type

4.1/9.5, 4.3/10, 7/16, BNC, N, Other, SMA, TNC
