You are here: Home1 / Shop2 / Fixed Attenuators3 / 50 Ohm Fixed Attenuators (5 to 50 Watts)4 / 5 Watt Fixed Attenuator | 50FH-XXX-5

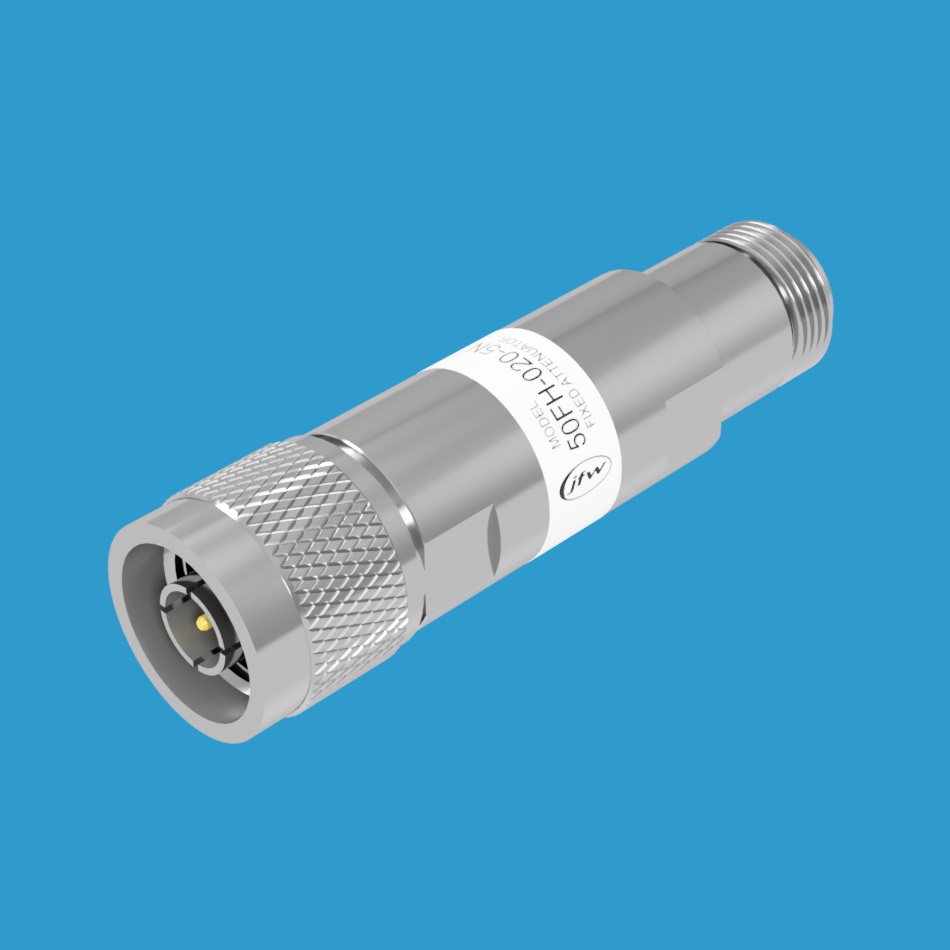

JFW model 50FH-XXX-5 fixed attenuator 5 Watt with 50 Ohm N male/female

5 Watt Fixed Attenuator | 50FH-XXX-5

JFW Model #: 50FH-XXX-5
Impedance: 50 Ohms
Frequency Start: 0 MHz (DC)
Frequency Stop: 2000 MHz
RF Input Power: 5 Watts
Attenuation Values: 1-30 dB (DC-2 GHz), 31-60 dB (DC-1 GHz)
Heatsink Style: Round
RF Connectors: BNC, N, SMA, TNC, 4.1/9.5, 4.3/10, 7/16
Documentation: Data Sheet | Drawing (1-30 dB) | Drawing (31-60 dB)

If Connector Type is Other, please specify in REMARKS field of the Request a Quote form.

Clear
Categories: 50 Ohm Fixed Attenuators (5 to 50 Watts), Fixed Attenuators
  • Description
  • Additional information

Description

50 Ohm coaxial fixed attenuator rated at 5 Watts maximum RF input power.  For dB values 1-30dB the unit operates DC-2000MHz.  For dB values 31-60dB the unit operates at DC-1000MHz.

For model 50FH-XXX-5, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.

Example Model Numbers:

50FH-001-5 N   (1dB with N male/female)
50FH-002-5 N   (2dB with N male/female)
50FH-003-5 N   (3dB with N male/female)
50FH-004-5 N   (4dB with N male/female)
50FH-005-5 N   (5dB with N male/female)

50FH-006-5 BNC   (6dB with BNC male/female)
50FH-007-5 BNC   (7dB with BNC male/female)
50FH-008-5 BNC   (8dB with BNC male/female)
50FH-009-5 BNC   (9dB with BNC male/female)
50FH-010-5 BNC   (10dB with BNC male/female)

50FH-011-5 TNC   (11dB with TNC male/female)
50FH-012-5 TNC   (12dB with TNC male/female)
50FH-013-5 TNC   (13dB with TNC male/female)
50FH-014-5 TNC   (14dB with TNC male/female)
50FH-015-5 TNC   (15dB with TNC male/female)
50FH-016-5 TNC   (16dB with TNC male/female)
50FH-017-5 TNC   (17dB with TNC male/female)
50FH-018-5 TNC   (18dB with TNC male/female)
50FH-019-5 TNC   (19dB with TNC male/female)
50FH-020-5 TNC   (20dB with TNC male/female)

50FH-021-5 SMA   (21dB with SMA male/female)
50FH-022-5 SMA   (22dB with SMA male/female)
50FH-023-5 SMA   (23dB with SMA male/female)
50FH-024-5 SMA   (24dB with SMA male/female)
50FH-025-5 SMA   (25dB with SMA male/female)
50FH-026-5 SMA   (26dB with SMA male/female)
50FH-027-5 SMA   (27dB with SMA male/female)
50FH-028-5 SMA   (28dB with SMA male/female)
50FH-029-5 SMA   (29dB with SMA male/female)
50FH-030-5 SMA   (30dB with SMA male/female)

50FH-031-5 4.3-10.0   (31dB with 4.3-10.0 male/female)
50FH-032-5 4.3-10.0   (32dB with 4.3-10.0 male/female)
50FH-033-5 4.3-10.0   (33dB with 4.3-10.0 male/female)
50FH-034-5 4.3-10.0   (34dB with 4.3-10.0 male/female)
50FH-035-5 4.3-10.0   (35dB with 4.3-10.0 male/female)
50FH-036-5 4.3-10.0   (36dB with 4.3-10.0 male/female)
50FH-037-5 4.3-10.0   (37dB with 4.3-10.0 male/female)
50FH-038-5 4.3-10.0   (38dB with 4.3-10.0 male/female)
50FH-039-5 4.3-10.0   (39dB with 4.3-10.0 male/female)
50FH-040-5 4.3-10.0   (40dB with 4.3-10.0 male/female)

50FH-041-5 7/16   (41dB with 7/16 male/female)
50FH-042-5 7/16   (42dB with 7/16 male/female)
50FH-043-5 7/16   (43dB with 7/16 male/female)
50FH-044-5 7/16   (44dB with 7/16 male/female)
50FH-045-5 7/16   (45dB with 7/16 male/female)
50FH-046-5 7/16   (46dB with 7/16 male/female)
50FH-047-5 7/16   (47dB with 7/16 male/female)
50FH-048-5 7/16   (48dB with 7/16 male/female)
50FH-049-5 7/16   (49dB with 7/16 male/female)
50FH-050-5 7/16   (50dB with 7/16 male/female)

50FH-051-5 4.1-9.5   (51dB with 4.1-9.5 male/female)
50FH-052-5 4.1-9.5   (52dB with 4.1-9.5 male/female)
50FH-053-5 4.1-9.5   (53dB with 4.1-9.5 male/female)
50FH-054-5 4.1-9.5   (54dB with 4.1-9.5 male/female)
50FH-055-5 4.1-9.5   (55dB with 4.1-9.5 male/female)
50FH-056-5 4.1-9.5   (56dB with 4.1-9.5 male/female)
50FH-057-5 4.1-9.5   (57dB with 4.1-9.5 male/female)
50FH-058-5 4.1-9.5   (58dB with 4.1-9.5 male/female)
50FH-059-5 4.1-9.5   (59dB with 4.1-9.5 male/female)
50FH-060-5 4.1-9.5   (60dB with 4.1-9.5 male/female)

Non-standard and mixed RF connector configurations are available upon request:

50FH-003-5 SMA F/F   (SMA female/female)
50FH-006-5 TNC M/M   (TNC male/male)
50FH-010-5 BNC M/SMA F   (BNC male/SMA female)
50FH-010-5 BNC F/SMA F   (BNC female/SMA female)
50FH-020-5 7/16 M/N F   (7/16 male/N female)
