You are here: Home1 / Shop2 / Fixed Attenuators3 / 50 Ohm Fixed Attenuators (75 to 1000 Watts)4 / 500 Watt Fixed Attenuator DC-3GHz | 50FHDQ-XXX-500-3

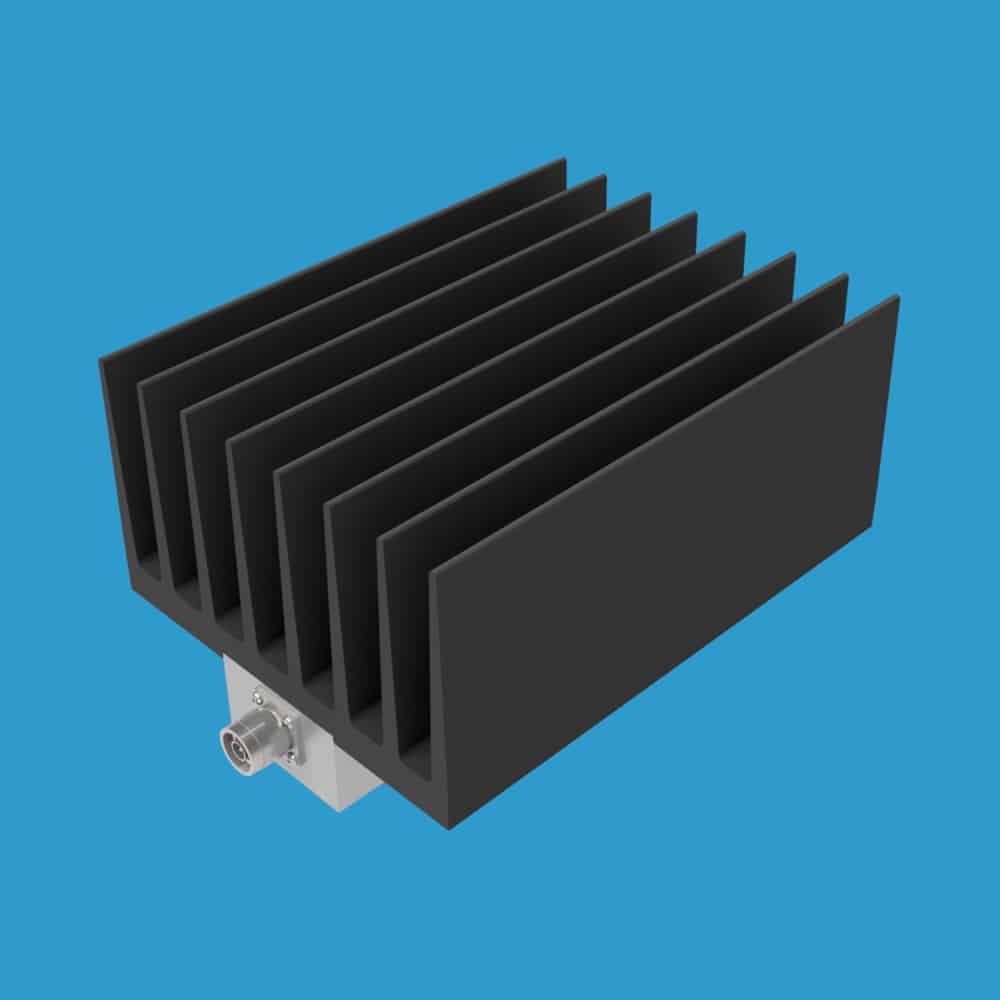

500 Watt fixed attenuator with 50 Ohm N male/female connectors

500 Watt Fixed Attenuator DC-3GHz | 50FHDQ-XXX-500-3

JFW Model #: 50FHDQ-XXX-500-3
Impedance: 50 Ohm
Frequency Range: DC-3000 MHz
RF Input Power: 500 Watts uni-directional
Attenuation Values: 6, 10, 20, 25, 30, 40 dB
Heatsink Style: Square
RF Connectors: N or TNC
Documentation: Data Sheet | Drawing

If Connector Type is Other, please specify in REMARKS field of the Request a Quote form.

Clear
Categories: 50 Ohm Fixed Attenuators (75 to 1000 Watts), Fixed Attenuators
  • Description
  • Additional information

Description

50 Ohm coaxial fixed attenuator rated at 500 Watts maximum RF input power that operates DC-3000 MHz.  Available with dB values up to 45dB.  The heatsink has mounting holes on the bottom plate.  This attenuator can be mounted in any position except with mounting plate up.

For model 50FHDQ-XXX-500-3, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.

Example Model Numbers:

50FHDQ-006-500-3 N   (6dB with N male/female)
50FHDQ-010-500-3 N   (10dB with N male/female)
50FHDQ-020-500-3 N   (20dB with N male/female)
50FHDQ-025-500-3 N   (25dB with N male/female)
50FHDQ-030-500-3 N   (30dB with N male/female)
50FHDQ-040-500-3 N   (40dB with N male/female)
50FHDQ-045-500-3 N   (45dB with N male/female)

50FHDQ-006-500-3 TNC   (6dB with TNC male/female)
50FHDQ-010-500-3 TNC   (10dB with TNC male/female)
50FHDQ-020-500-3 TNC   (20dB with TNC male/female)
50FHDQ-025-500-3 TNC   (25dB with TNC male/female)
50FHDQ-030-500-3 TNC   (30dB with TNC male/female)
50FHDQ-040-500-3 TNC   (40dB with TNC male/female)
50FHDQ-045-500-3 TNC   (45dB with TNC male/female)

Non-standard and mixed RF connector configurations are available upon request:

50FHDQ-003-500-3 N F/F   (N female/female)
50FHDQ-010-500-3 N M/TNC F   (N male/TNC female)

Additional information

Attenuation Value

6, 10, 20, 25, 30, 40

Input Connector

N male, N female, TNC male, TNC female, Other

Output Connector

N male, N female, TNC male, TNC female, Other
