You are here: Home1 / Shop2 / Fixed Attenuators3 / 50 Ohm Fixed Attenuators (75 to 1000 Watts)4 / 1000 Watt Fixed Attenuator DC-3GHz | 50FHIE-XXX-1000

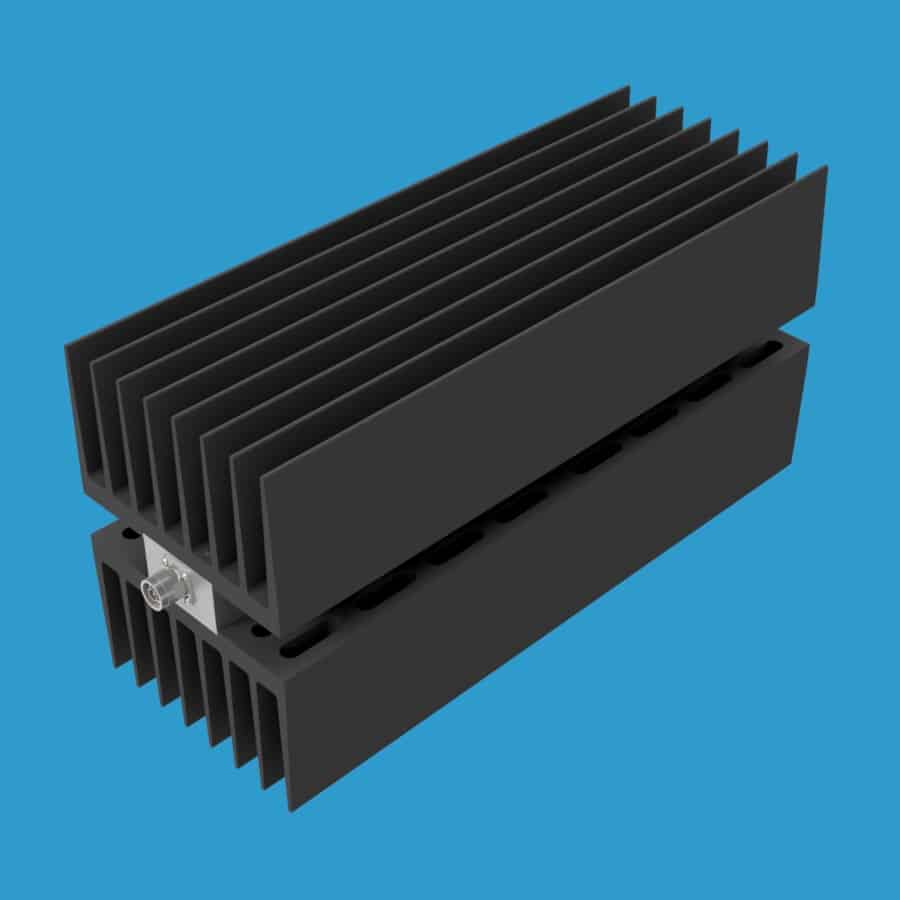

1000 Watt fixed attenuator with 50 Ohm N male/female connectors

1000 Watt Fixed Attenuator DC-3GHz | 50FHIE-XXX-1000

JFW Model #: 50FHIE-XXX-1000
Impedance: 50 Ohm
Frequency Range: DC-3000 MHz
RF Input Power: 1000 Watts uni-directional
Attenuation Values: 20, 30, 40 dB
Heatsink Style: Square
RF Connectors: N, 7/16
Documentation: Data Sheet | Drawing (N)

If Connector Type is Other, please specify in REMARKS field of the Request a Quote form.

Clear
Categories: 50 Ohm Fixed Attenuators (75 to 1000 Watts), Fixed Attenuators
  • Description
  • Additional information

Description

50 Ohm uni-directional coaxial fixed attenuator rated at 1000 Watts maximum RF input power that operates DC-3000 MHz.  Available with dB values up to 40dB.

For model 50FHIE-XXX-1000, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.

Example Model Numbers:

50FHIE-020-1000 N   (20dB with N female/male)
50FHIE-030-1000 N   (30dB with N female/male)
50FHIE-040-1000 N   (40dB with N female/male)

50FHIE-020-1000 N-RC   (20dB with N male/female)
50FHIE-030-1000 N-RC   (30dB with N male/female)
50FHIE-040-1000 N-RC   (40dB with N male/female)

Non-standard and mixed RF connector configurations are available upon request:

50FHIE-003-1000 N F/F   (N female/female)
50FHIE-020-1000 7/16 F/F   (7/16 female/female)
50FHIE-020-1000 7/16 M/N F   (7/16 male/N female)
50FHIE-020-1000 7/16 F/N F   (7/16 female/N female)

Additional information

Attenuation Value

20, 30, 40

Input Connector

N male, N female, 7/16 male, 7/16 female, Other

Output Connector

N male, N female, 7/16 male, 7/16 female, Other
