You are here: Home1 / Shop2 / Fixed Attenuators3 / 50 Ohm Fixed Attenuators (5 to 50 Watts)4 / 5 Watt Fixed Attenuator | 50FPE-XXX

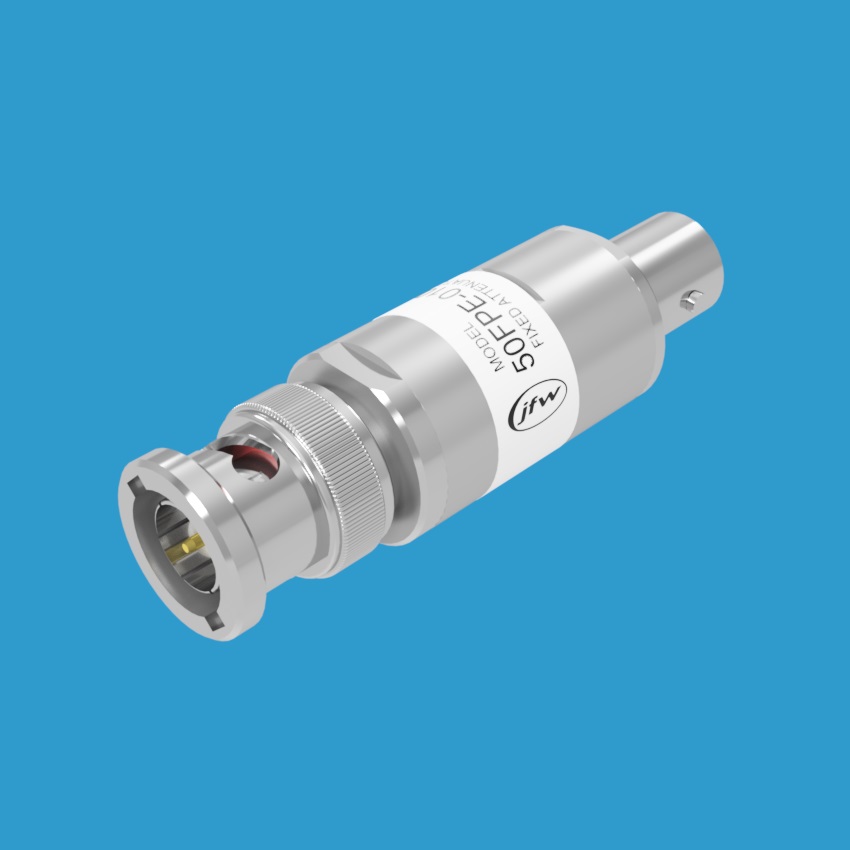

JFW model 50FPE-XXX fixed attenuator 5 Watt with 50 Ohm BNC male/female

5 Watt Fixed Attenuator | 50FPE-XXX

JFW Model #: 50FPE-XXX
Impedance: 50 Ohm
Attenuation Values:
1-40 dB (DC-6 GHz)
41-60 dB (DC-4 GHz)
RF Input Power: 5 Watts
Heatsink Style: Round
RF Connectors: N, SMA, TNC, 7/16, 4.1-9.5, 4.3-10.0
Documentation: Data Sheet | Drawing

If Connector Type is Other, please specify in REMARKS field of the Request a Quote form.

Clear
Categories: 50 Ohm Fixed Attenuators (5 to 50 Watts), Fixed Attenuators
  • Description
  • Additional information

Description

Model 50FPE-xxx is a 50 Ohm coaxial fixed attenuator rated for 5 Watts maximum RF input power and operates DC-6000 MHz.  Available dB values from 1dB to 60dB.  For dB values 1-40dB the unit operates DC-4000 MHz.  For dB values 41-60dB the unit operates at DC-3000 MHz.

For model 50FPE-XXX, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.

Example Model Numbers:

50FPE-001 N   (1dB with N male/female)
50FPE-002 N   (2dB with N male/female)
50FPE-003 N   (3dB with N male/female)
50FPE-004 N   (4dB with N male/female)
50FPE-005 N   (5dB with N male/female)
50FPE-006 N   (6dB with N male/female)
50FPE-007 N   (7dB with N male/female)
50FPE-008 N   (8dB with N male/female)
50FPE-009 N   (9dB with N male/female)
50FPE-010 N   (10dB with N male/female)

50FPE-011 TNC   (11dB with TNC male/female)
50FPE-012 TNC   (12dB with TNC male/female)
50FPE-013 TNC   (13dB with TNC male/female)
50FPE-014 TNC   (14dB with TNC male/female)
50FPE-015 TNC   (15dB with TNC male/female)
50FPE-016 TNC   (16dB with TNC male/female)
50FPE-017 TNC   (17dB with TNC male/female)
50FPE-018 TNC   (18dB with TNC male/female)
50FPE-019 TNC   (19dB with TNC male/female)
50FPE-020 TNC   (20dB with TNC male/female)

50FPE-021 SMA   (21dB with SMA male/female)
50FPE-022 SMA   (22dB with SMA male/female)
50FPE-023 SMA   (23dB with SMA male/female)
50FPE-024 SMA   (24dB with SMA male/female)
50FPE-025 SMA   (25dB with SMA male/female)
50FPE-026 SMA   (26dB with SMA male/female)
50FPE-027 SMA   (27dB with SMA male/female)
50FPE-028 SMA   (28dB with SMA male/female)
50FPE-029 SMA   (29dB with SMA male/female)
50FPE-030 SMA   (30dB with SMA male/female)

50FPE-031 4.3-10.0   (31dB with 4.3-10.0 male/female)
50FPE-032 4.3-10.0   (32dB with 4.3-10.0 male/female)
50FPE-033 4.3-10.0   (33dB with 4.3-10.0 male/female)
50FPE-034 4.3-10.0   (34dB with 4.3-10.0 male/female)
50FPE-035 4.3-10.0   (35dB with 4.3-10.0 male/female)
50FPE-036 4.3-10.0   (36dB with 4.3-10.0 male/female)
50FPE-037 4.3-10.0   (37dB with 4.3-10.0 male/female)
50FPE-038 4.3-10.0   (38dB with 4.3-10.0 male/female)
50FPE-039 4.3-10.0   (39dB with 4.3-10.0 male/female)
50FPE-040 4.3-10.0   (40dB with 4.3-10.0 male/female)

50FPE-041 7/16   (41dB with 7/16 male/female)
50FPE-042 7/16   (42dB with 7/16 male/female)
50FPE-043 7/16   (43dB with 7/16 male/female)
50FPE-044 7/16   (44dB with 7/16 male/female)
50FPE-045 7/16   (45dB with 7/16 male/female)
50FPE-046 7/16   (46dB with 7/16 male/female)
50FPE-047 7/16   (47dB with 7/16 male/female)
50FPE-048 7/16   (48dB with 7/16 male/female)
50FPE-049 7/16   (49dB with 7/16 male/female)
50FPE-050 7/16   (50dB with 7/16 male/female)

50FPE-051 4.1-9.5   (51dB with 4.1-9.5 male/female)
50FPE-052 4.1-9.5   (52dB with 4.1-9.5 male/female)
50FPE-053 4.1-9.5   (53dB with 4.1-9.5 male/female)
50FPE-054 4.1-9.5   (54dB with 4.1-9.5 male/female)
50FPE-055 4.1-9.5   (55dB with 4.1-9.5 male/female)
50FPE-056 4.1-9.5   (56dB with 4.1-9.5 male/female)
50FPE-057 4.1-9.5   (57dB with 4.1-9.5 male/female)
50FPE-058 4.1-9.5   (58dB with 4.1-9.5 male/female)
50FPE-059 4.1-9.5   (59dB with 4.1-9.5 male/female)
50FPE-060 4.1-9.5   (60dB with 4.1-9.5 male/female)

Non-standard and mixed RF connector configurations are available upon request:

50FPE-003 SMA F/F   (SMA female/female)
50FPE-006 SMA M/M   (SMA male/male)
50FPE-010 N M/SMA F   (N male/SMA female)
50FPE-010 N F/SMA F   (N female/SMA female)
50FPE-020 7/16 M/N F   (7/16 male/N female)

Additional information

Attenuation Value

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60

Connector Type

4.1/9.5, 4.3/10, 7/16, N, SMA, TNC
