You are here: Home1 / Shop2 / Test Systems3 / Matrix Switches4 / Blocking Matrix Switches5 / 50MS-305 | 18×4 Blocking Matrix Switch

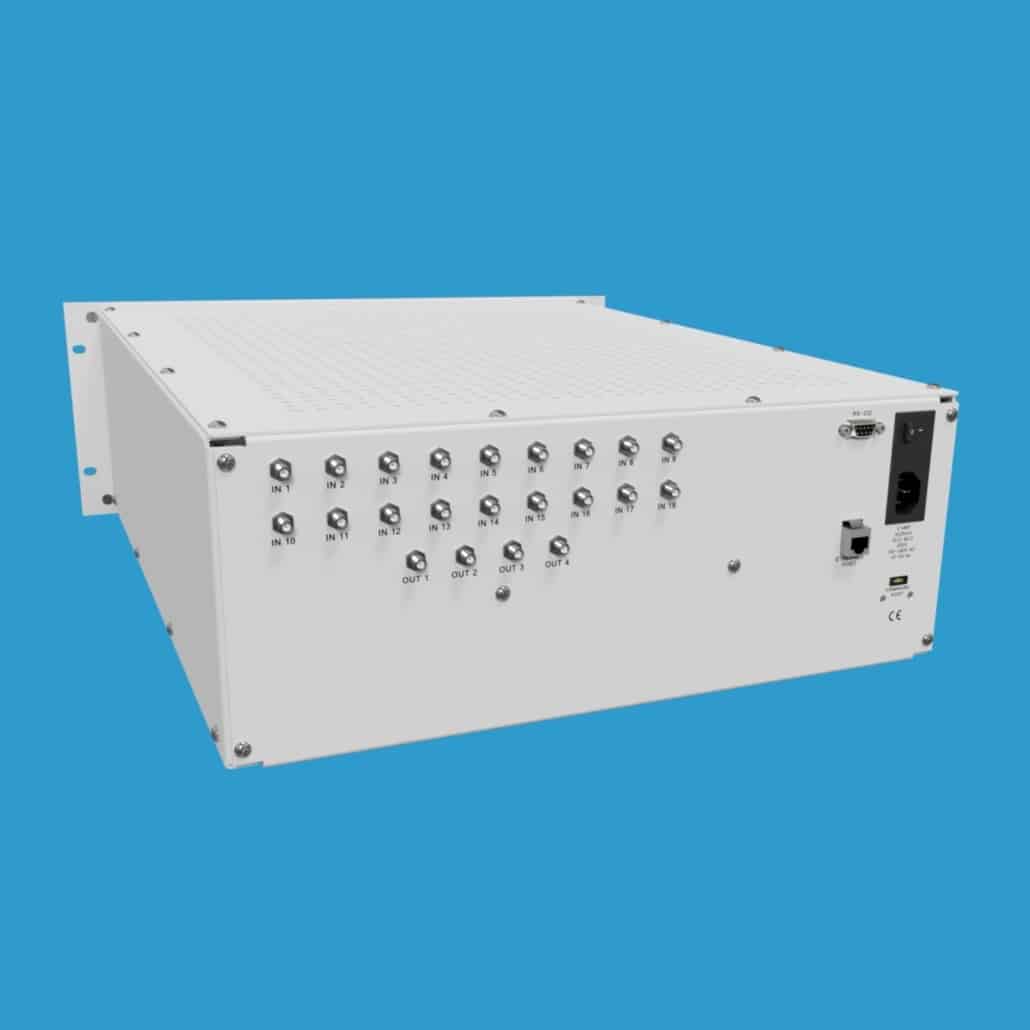

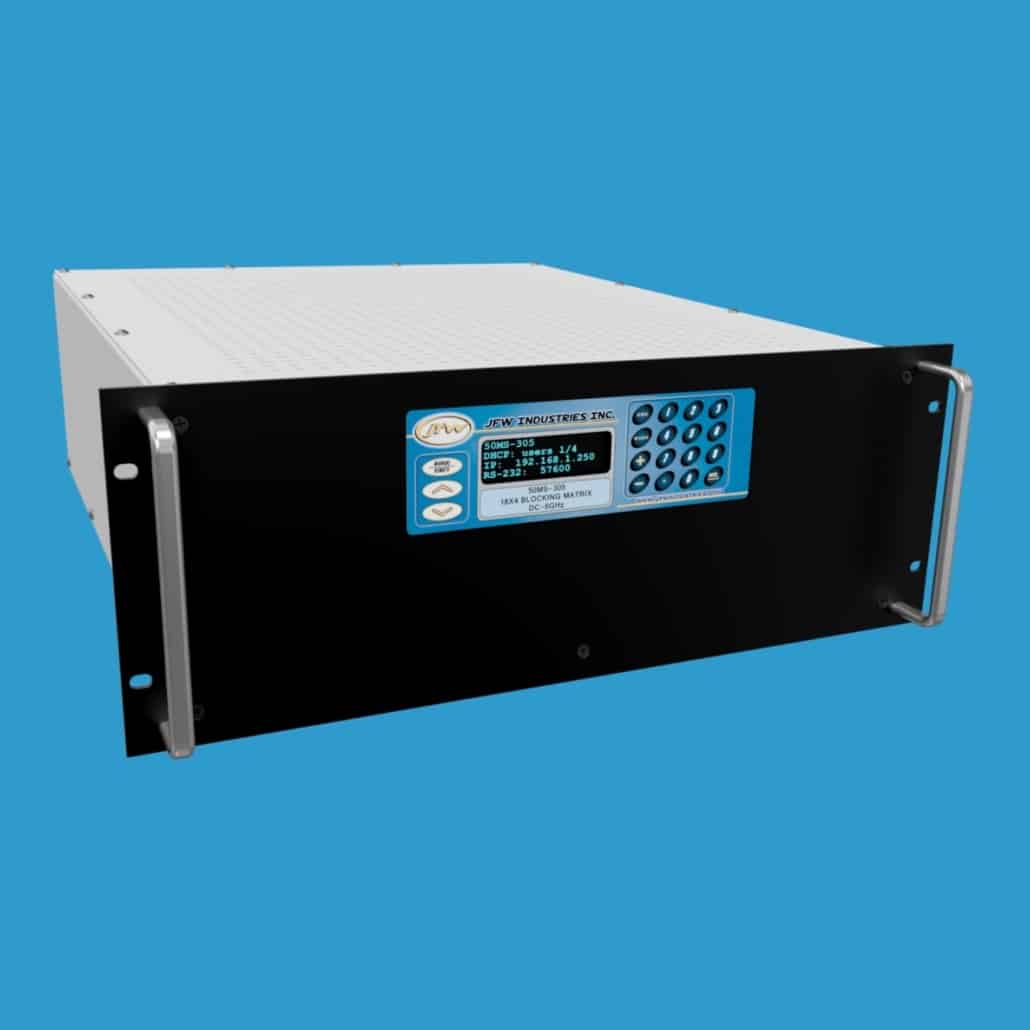

JFW model 50MS-305 50 Ohm 18x4 blocking matrix switch

50MS-305 | 18×4 Blocking Matrix Switch

JFW Model #: 50MS-305
Impedance: 50 Ohm
Configuration: 18 x 4 Blocking Matrix Switch
Frequency Range: DC-6 GHz
Switch Type:
Electro-mechanical
Unused Ports: Absorptive
RF Input Power: 1 Watt
RF Connectors: SMA
Documentation: Data Sheet | Diagram | Drawing

Categories: Blocking Matrix Switches, Matrix Switches, Test Systems
  • Additional information

Additional information

Connector Type

SMA Female

Related products

  • JFW model 50PA-865 SMA consists of 20 programmable attenuators with Ethernet control

    Assembly with 20 Attenuators 200-6000 MHz | 0-63dB x 1dB | 50PA-865

    Read more Show Details

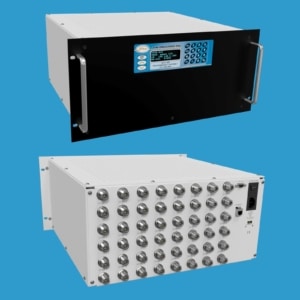

  • JFW model 50PA-201-16 SMA attenuator assembly 50 Ohm 19 inch rack Ethernet

    Assembly with 9-16 Attenuators 30-3000 MHz | 0-95dB x 1dB | 50PA-201-XX

    Read more

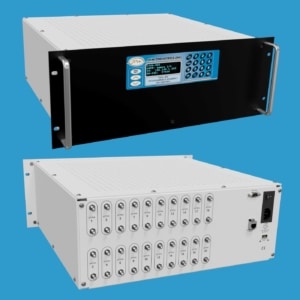

  • JFW model 50PA-128-08 SMA attenuator assembly 50 Ohm 19 inch rack Ethernet
