You are here: Home1 / Shop2 / Programmable Attenuators3 / 50 Ohm Relay Programmable Attenuators4 / Programmable Attenuator DC-2500MHz 0-63dB x 1dB TTL | 50P-1207

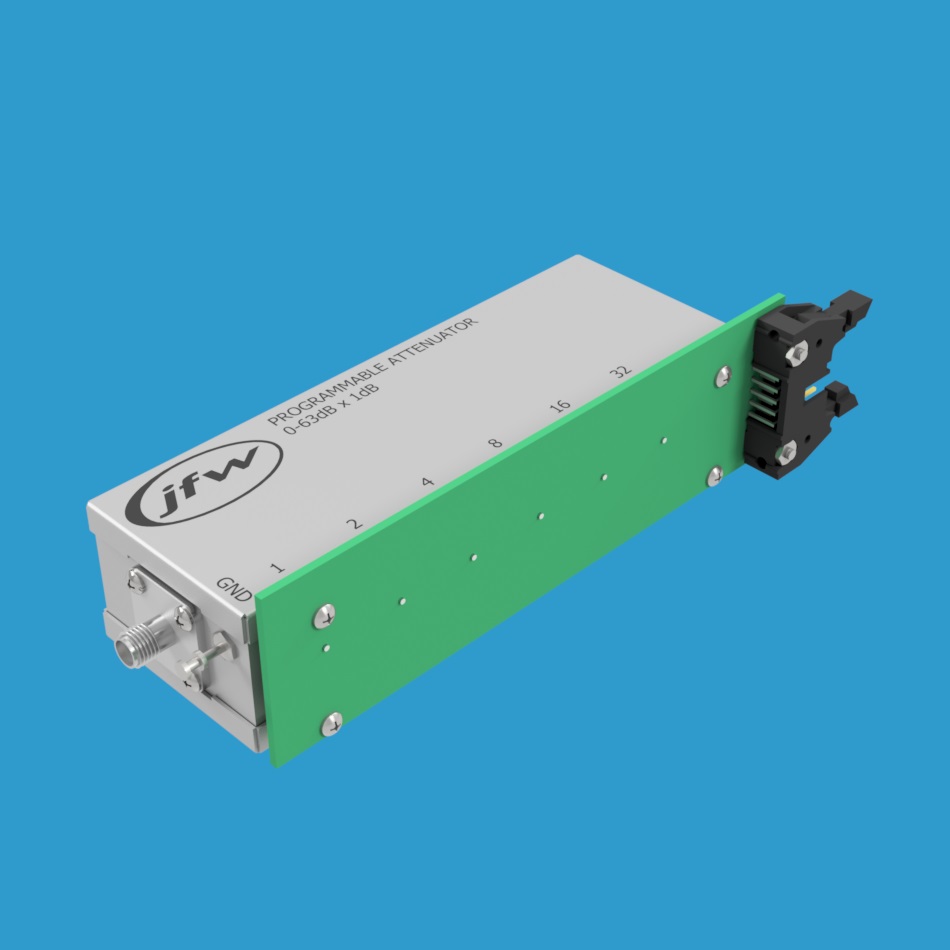

50 Ohm relay programmable attenuator SMA female DC-2500MHz attenuation range 0 to 63dB by 1dB steps External TTL PCB

Programmable Attenuator DC-2500MHz 0-63dB x 1dB TTL | 50P-1207

JFW Model #: 50P-1207
Type:  Relay programmable attenuator
Impedance: 50 Ohm
dB Total: 63 dB
dB Step: 1 dB
Frequency Range: DC-2500 MHz
Switching Speed: 6 mS
RF Input Power: 0.5 Watts
Control: TTL
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing

Clear
Categories: 50 Ohm Relay Programmable Attenuators, Programmable Attenuators
  • Description
  • Additional information

Description

Model 50P-1207 is a 50 Ohm relay programmable attenuator with attenuation range 0 to 63dB by 1dB steps.  It operates DC-2500 MHz and is rated for 0.5 Watts of RF input power.  This step attenuator is available with BNC, N, SMA or TNC coaxial RF connectors.  The attenuator has six individually controlled steps:  1dB, 2dB, 4dB, 8dB, 16dB and 32dB.

TTL Controlled
Each of the attenuation steps has a corresponding TTL control line.  There are six TTL control lines for this model.  See the outline drawing for the control pinout.  TTL high will turn on an attenuation step.  TTL low will turn off an attenuation step.  Use multiple control lines simultaneously to set combinational attenuation values.  To activate the 7dB setting, the 1dB/2dB/4dB control lines must all be TTL high.  To activate the 17dB setting, the 1dB/16dB control lines must be TTL high.  To set the attenuator to the insertion loss state (i.e. 0dB setting), all control lines must be set to TTL low.

Additional information

Connector Type

BNC Female, N Female, SMA Female, TNC Female
