You are here: Home1 / Shop2 / Programmable Attenuators3 / 50 Ohm Solid-State Programmable Attenuators (TTL)4 / Programmable Attenuator 200-6000 MHz 0-31.5dB x 0.5dB | 50P-1855
Programmable Attenuator | TTL control | SMA

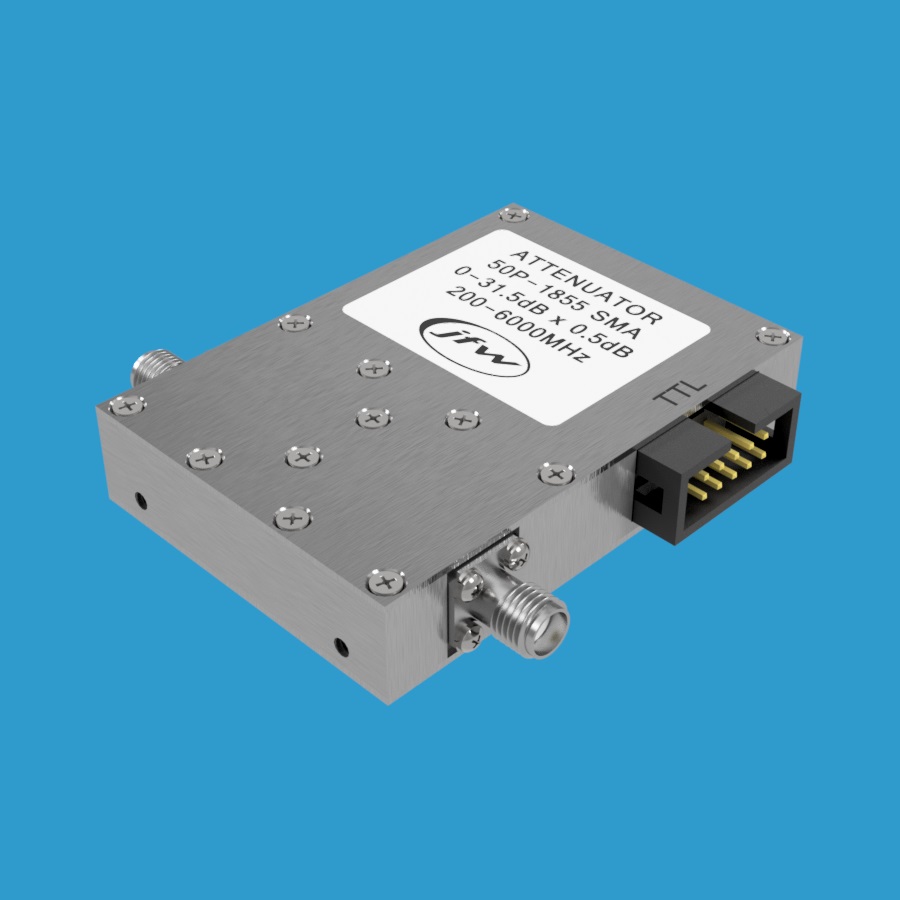

Programmable Attenuator 200-6000 MHz 0-31.5dB x 0.5dB | 50P-1855

JFW Model #: 50P-1855
Type:  Solid-State Programmable Attenuator
Impedance: 50 Ohm
dB Total: 31.5 dB
dB Step: 0.5 dB
Frequency Range: 200-6000 MHz
Switching Speed: 3 uS
RF Input Power: +27 dBm*
Control: TTL
RF Connectors: SMA
Documentation: Data Sheet | Drawing

* Units shipped before 10/20/2017 (date code 1742) are only rated at +20dBm.  The JFW date code is a four digit code (YYWW) that follows the six digit serial number.  Example:  1908 = 2019, 8th week

Categories: 50 Ohm Solid-State Programmable Attenuators (TTL), Programmable Attenuators
  • Description
  • Additional information

Description

Model 50P-1855 is a 50 Ohm solid-state programmable attenuator with attenuation range 0 to 31.5dB by 0.5dB steps.  It operates 200 MHz to 6 GHz and is rated for +27 dBm of RF input power.  This step attenuator is available with SMA female coaxial RF connectors.  The attenuator has six individually controlled steps:  0.5dB, 1dB, 2dB, 4dB, 8dB, and 16dB.

TTL Controlled
Each of the attenuation steps has a corresponding TTL control line.  There are six TTL control lines for this model.  See the outline drawing for the control pinout.  TTL high will turn on an attenuation step.  TTL low will turn off an attenuation step.  Use multiple control lines simultaneously to set combinational attenuation values.  To activate the 7.5dB setting, the 0.5dB/1dB/2dB/4dB control lines must all be TTL high.  To activate the 18dB setting, the 2dB/16dB control lines must be TTL high.  To set the attenuator to the insertion loss state (i.e. 0dB setting), all control lines must be set to TTL low.

Recommended Accessories:

016-306-XX (DC cable, 10 pin female to open wires)

016-168-XX (DC cable, 10 pin female to 10 pin female)

Additional information

Connector Type

SMA Female
