You are here: Home1 / Shop2 / Programmable Attenuators3 / 50 Ohm Relay Programmable Attenuators4 / Programmable Attenuator DC-1000MHz 0-127dB x 1dB | 50P-1976

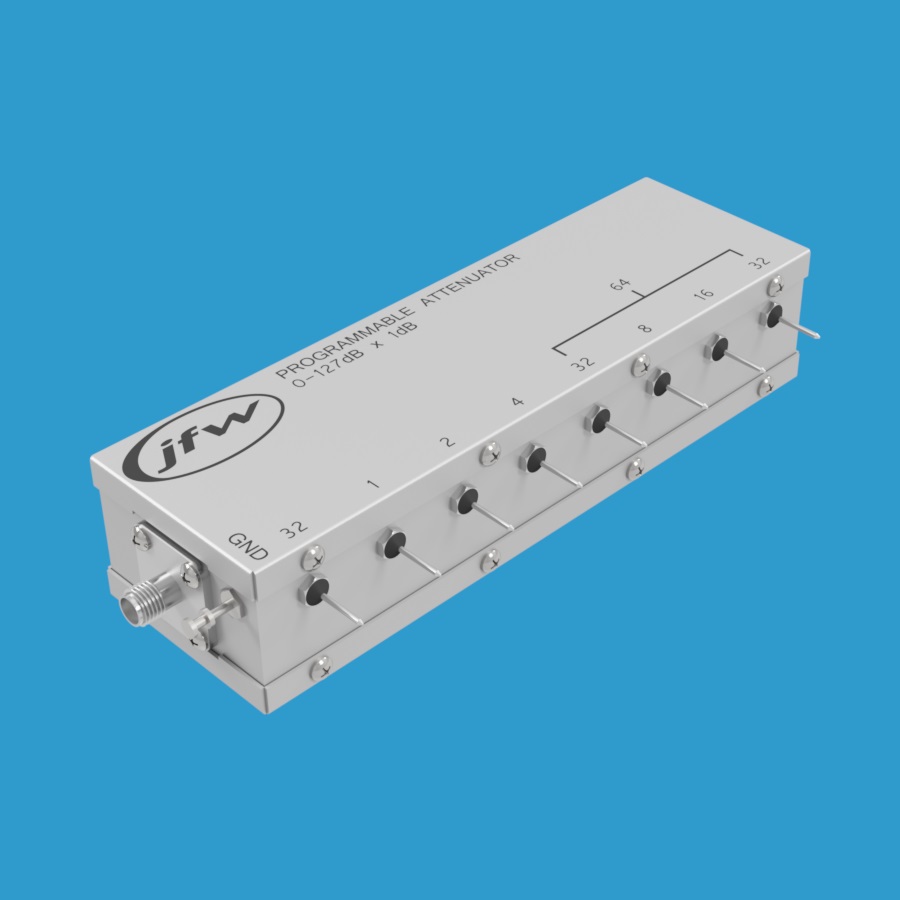

50 Ohm relay programmable attenuator SMA female DC-1000MHz attenuation range 0 to 127dB by 1dB steps

Programmable Attenuator DC-1000MHz 0-127dB x 1dB | 50P-1976

JFW Model #: 50P-1976
Type:  Relay programmable attenuator
Impedance: 50 Ohm
dB Total: 127 dB
dB Step: 1 dB
Frequency Range: DC-1000 MHz
Switching Speed: 6 mS
RF Input Power: 2 Watts
Control Voltage: +12 Vdc
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing

Clear
Categories: 50 Ohm Relay Programmable Attenuators, Programmable Attenuators
  • Description
  • Additional information

Description

Model 50P-1976 is a 50 Ohm relay programmable attenuator with attenuation range 0 to 127dB by 1dB steps.  It operates DC-1000 MHz and is rated for 2 Watts of RF input power.  This step attenuator is available with BNC, N, SMA or TNC coaxial RF connectors.  The attenuator has seven individually controlled steps:  1dB, 2dB, 4dB, 8dB, 16dB, 32dB and 64dB.

+12Vdc Controlled
Each of the attenuation steps has a corresponding solder feedthru where the control Voltage is applied.  Applying +12Vdc to a solder feedthru will turn on the attenuation for that step.  The internal relays are failsafe to their thru path setting (i.e. failsafe to 0dB setting).  An open circuit (or Ground) on a solder feedthru will turn off the attenuation for that step.  Activate multiple steps simultaneously to set combinational attenuation values.  For a 5dB setting, the 1dB/4dB control lines must active.  For the 15dB setting, the 1dB/2dB/4dB/8dB control lines must be active.  To set the attenuator to the insertion loss state (i.e. 0dB setting), all control lines must off (i.e. Ground or Open Circuit).
