You are here: Home1 / Shop2 / Reactive & Resistive Power Divider/Combiner3 / 50 Ohm Resistive Divider/Combiner (Low Power)4 / 2-Way Power Divider/Combiner DC-1 GHz | 50PD-001 N

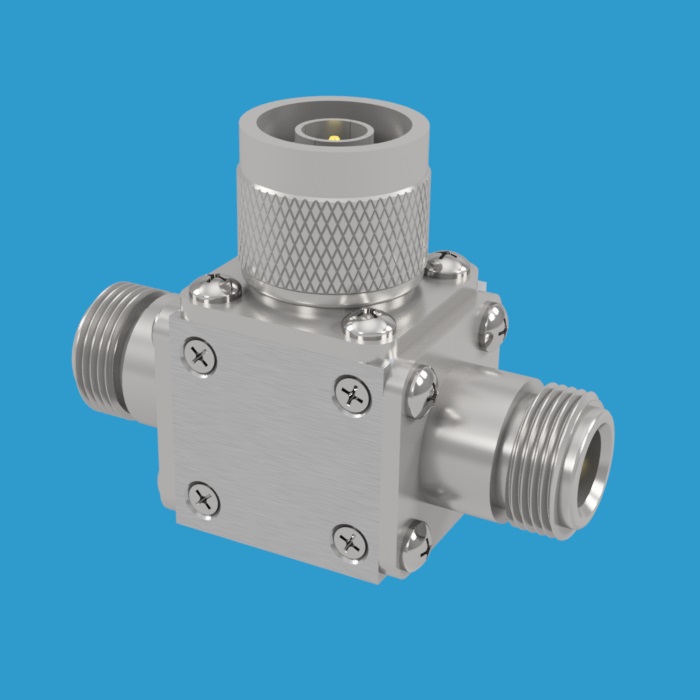

JFW model 50PD-001 resistive 2way power divider/combiner with 50 Ohm N male/female/female connectors

2-Way Power Divider/Combiner DC-1 GHz | 50PD-001 N

JFW Model #: 50PD-001
Impedance:  50 Ohm
Configuration: 2-Way resistive divider/combiner
Frequency Range: DC-1000 MHz
RF Input Power: 1 Watt
RF Connectors: N male/female/female
Documentation: Data Sheet | Drawing

Categories: 50 Ohm Resistive Divider/Combiner (Low Power), Reactive & Resistive Power Divider/Combiner
  • Description
  • Additional information

Description

Model 50PD-001 is a 50 Ohm 2-Way resistive power divider/combiner with N male/N female/N female coaxial RF connectors.  It operates DC-1000 MHz and is rated for 1 Watt RF input power.  It is constructed in a star configuration.  It has the functionality of a RF hub because every path through the divider/combiner has equal loss.

See our Power Divider Application Note for functionality differences between resistive type and reactive type power dividers.  Also examined are the differences in construction, insertion loss, and isolation between a resistive divider, a toroidal divider, and a Wilkinson divider.

Additional information

Connector Type

N Male/N Female/N Female
