You are here: Home1 / Shop2 / Reactive & Resistive Power Divider/Combiner3 / 50 Ohm Resistive Divider/Combiner (Low Power)4 / 2-Way Power Divider/Combiner DC-3 GHz | 50PD-335

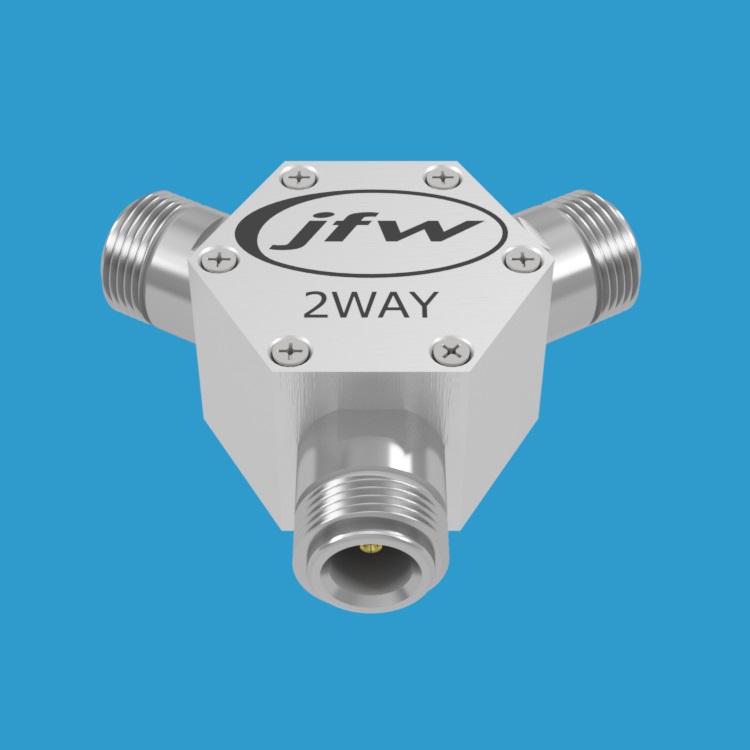

JFW model 50PD-335 resistive 2way power divider/combiner with 50 Ohm N female connectors

2-Way Power Divider/Combiner DC-3 GHz | 50PD-335

JFW Model #: 50PD-335
Impedance:  50 Ohm
Configuration: 2-Way resistive divider/combiner
Frequency Range: DC-3000 MHz
RF Input Power: 2 Watts
RF Connectors: BNC, N, or TNC
Documentation: Data Sheet | Drawing

Clear
Categories: 50 Ohm Resistive Divider/Combiner (Low Power), Reactive & Resistive Power Divider/Combiner
  • Description
  • Additional information

Description

Model 50PD-335 is a 50 Ohm resistive 2-Way power divider/combiner.  It is available with 50 Ohm BNC, N or TNC coaxial RF connectors.  It operates DC-3000 MHz and is rated for 2 Watts of RF input power.  It is constructed in a star configuration.  It has the functionality of a RF hub because every path through the divider/combiner has equal loss.

See our Power Divider Application Note for functionality differences between resistive type and reactive type power dividers.  Also examined are the differences in construction, insertion loss, and isolation between a resistive divider, a toroidal divider, and a Wilkinson divider.

Additional information

Connector Type

BNC Female, BNC Female/BNC Male/BNC Male, BNC Male/BNC Female/BNC Female, N Female, N Female/N Male/N Male, N Male/N Female/N Female, TNC Female, TNC Female/TNC Male/TNC Male, TNC Male/TNC Female/TNC Female
