You are here: Home1 / Shop2 / Reactive & Resistive Power Divider/Combiner3 / 50 Ohm Resistive Divider/Combiner (Low Power)4 / 3-Way Power Divider/Combiner DC-4 GHz | 50PD-669 N

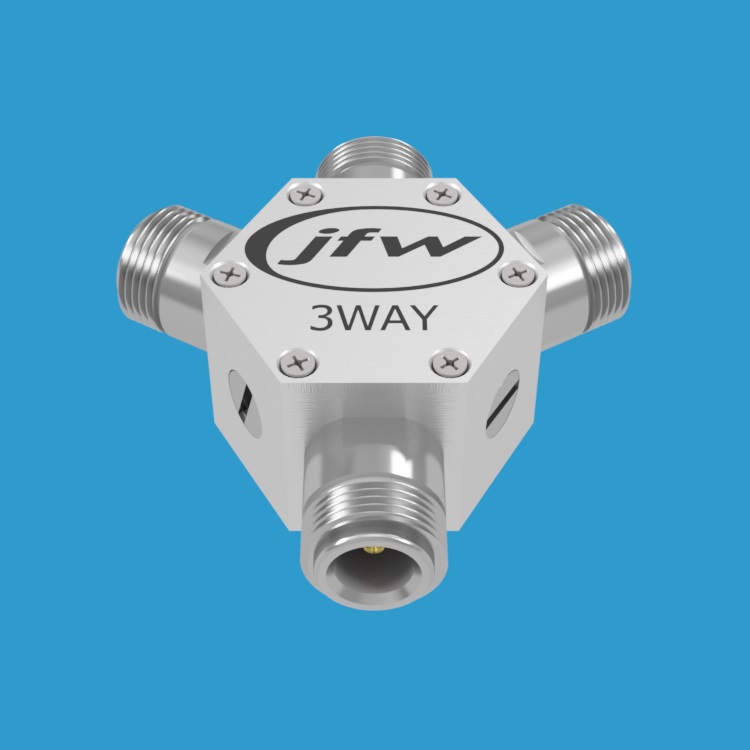

JFW model 50PD-669 resistive 3way power divider/combiner with 50 Ohm N female connectors

3-Way Power Divider/Combiner DC-4 GHz | 50PD-669 N

JFW Model #: 50PD-669
Impedance:  50 Ohm
Configuration: 3-Way resistive divider/combiner
Frequency Range: DC-4 GHz
RF Input Power: 2 Watt
RF Connectors: BNC or N
Documentation: Data Sheet | Drawing

Clear
Categories: 50 Ohm Resistive Divider/Combiner (Low Power), Reactive & Resistive Power Divider/Combiner
  • Description
  • Additional information

Description

Model 50PD-669 is a 50 Ohm resistive 3-Way power divider/combiner.  It is available with 50 Ohm N type coaxial RF connectors.  It operates DC-4000 MHz and is rated for 2 Watts of RF input power.  It is constructed in a star configuration.  It has the functionality of a RF hub because every path through the divider/combiner has equal loss.

See our Power Divider Application Note for functionality differences between resistive type and reactive type power dividers.  Also examined are the differences in construction, insertion loss, and isolation between a resistive divider, a toroidal divider, and a Wilkinson divider.

Additional information

Connector Type

N Female, N Male
