You are here: Home1 / Shop2 / Reactive & Resistive Power Divider/Combiner3 / 50 Ohm Resistive Divider/Combiner (High Power)4 / 2-Way Power Divider/Combiner DC-3 GHz 30 Watts | 50PD-670

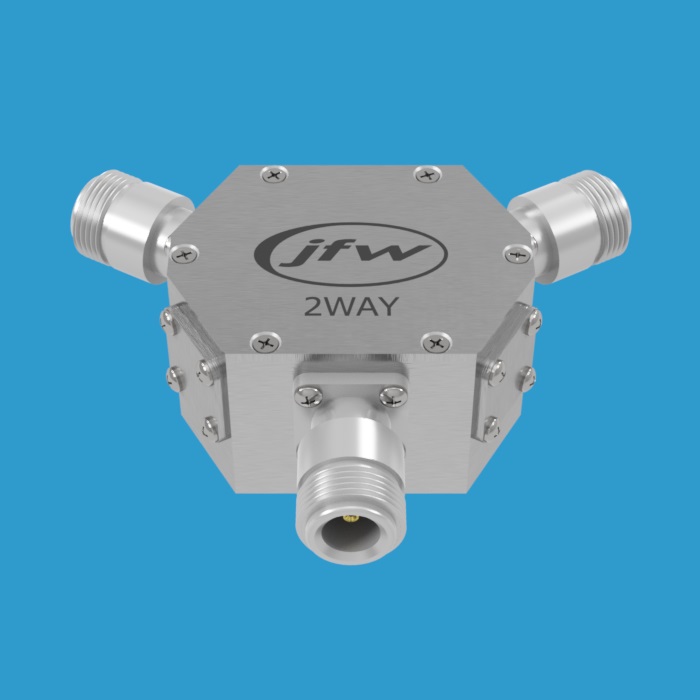

JFW model 50PD-670 resistive 2way power divider/combiner with 50 Ohm N female

2-Way Power Divider/Combiner DC-3 GHz 30 Watts | 50PD-670

JFW Model #: 50PD-670
Impedance:  50 Ohm
Configuration: 2-Way resistive divider/combiner
Frequency Range: DC-3000 MHz
RF Input Power: 30 Watts (divider) 15 Watts (combiner)
RF Connectors: BNC, N, SMA, TNC female
Documentation: Data Sheets | Drawing

Clear
Categories: 50 Ohm Resistive Divider/Combiner (High Power), Reactive & Resistive Power Divider/Combiner
  • Description
  • Additional information

Description

Model 50PD-670 is a high power 50 Ohm resistive 2-Way power divider/combiner operating DC-3000 MHz.  It can be used as a divider to divide a 30 Watt RF signal.  It can be used as a combiner to combine two 15 Watt RF signals.  It is available with 50 Ohm BNC, N SMA or TNC coaxial RF connectors.  It is constructed in a star configuration.  It has the functionality of a RF hub because every path through the divider/combiner has equal loss.

See our Power Divider Application Note for functionality differences between resistive type and reactive type power dividers.  Also examined are the differences in construction, insertion loss, and isolation between a resistive divider, a toroidal divider, and a Wilkinson divider.

Additional information

Connector Type

BNC Female, N Female, SMA Female, TNC Female
