You are here: Home1 / Shop2 / Reactive & Resistive Power Divider/Combiner3 / 50 Ohm Resistive Divider/Combiner (Low Power)4 / 9-Way Power Divider/Combiner DC-6 GHz | 50PD-760 SMA

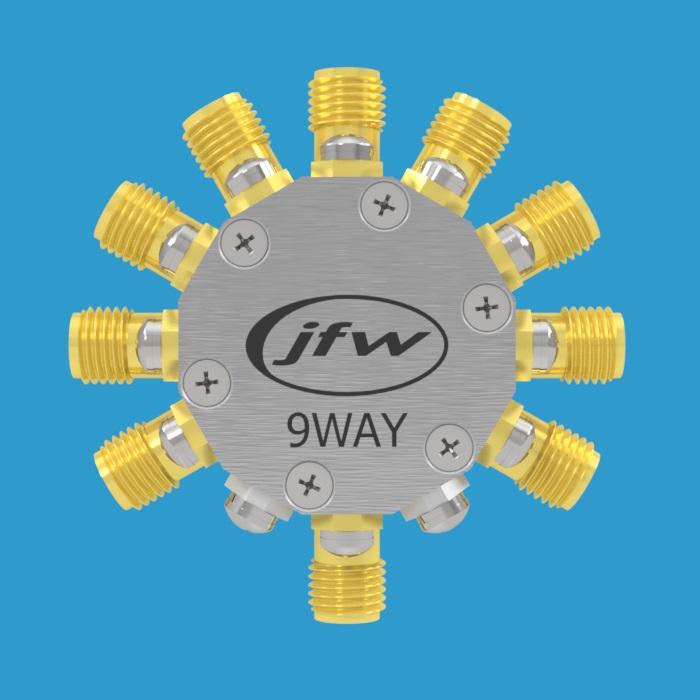

JFW model 50PD-760 resistive 9way power divider/combiner with 50 Ohm SMA female connectors

9-Way Power Divider/Combiner DC-6 GHz | 50PD-760 SMA

JFW Model #: 50PD-760
Impedance:  50 Ohm
Configuration: 9-Way resistive divider/combiner
Frequency Range: DC-6 GHz
RF Input Power: 1 Watt
RF Connectors: SMA female
Documentation: Data Sheet | Drawing

Categories: 50 Ohm Resistive Divider/Combiner (Low Power), Reactive & Resistive Power Divider/Combiner
  • Description
  • Additional information

Description

Model 50PD-760 is a 50 Ohm resistive 9-Way power divider/combiner.  It is available with 50 Ohm SMA female coaxial RF connectors.  It operates DC-6000 MHz and is rated for 1 Watt of RF input power.  It is constructed in a star configuration.  It has the functionality of a RF hub because every path through the divider/combiner has equal loss.

See our Power Divider Application Note for functionality differences between resistive type and reactive type power dividers.  Also examined are the differences in construction, insertion loss, and isolation between a resistive divider, a toroidal divider, and a Wilkinson divider.

Additional information

Connector Type

SMA Female
