You are here: Home1 / Shop2 / Reactive & Resistive Power Divider/Combiner3 / 50 Ohm Reactive Divider/Combiner (High Power)4 / 2-Way Power Divider/Combiner 138-174 MHz 200 Watt | 50PD-788

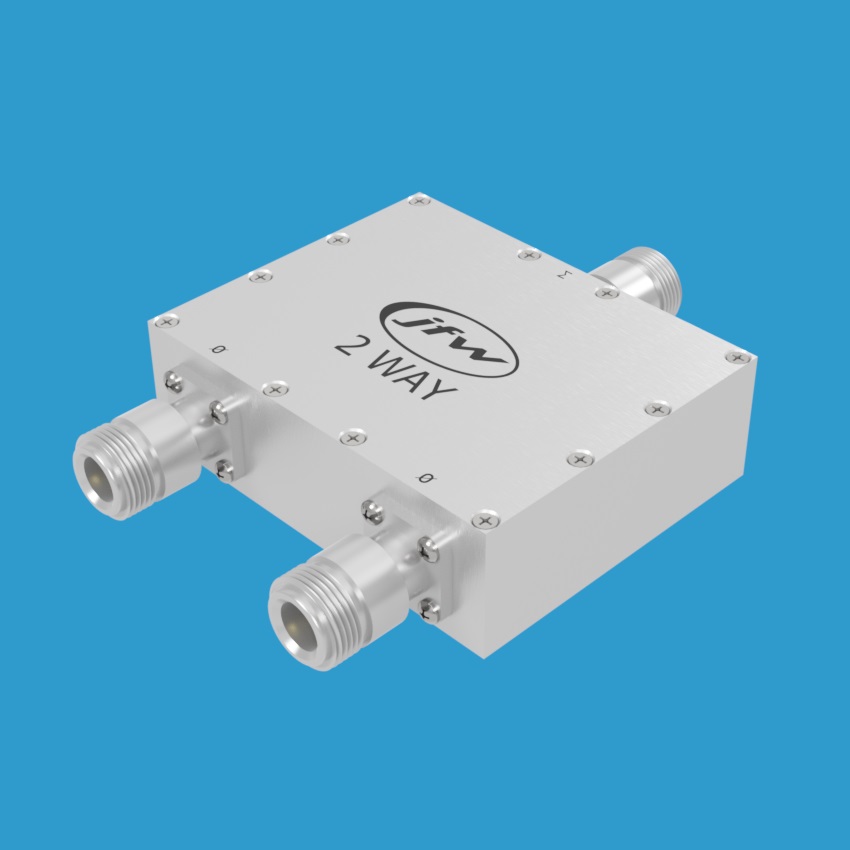

2-way high power reactive divider/combiner with N female

2-Way Power Divider/Combiner 138-174 MHz 200 Watt | 50PD-788

JFW Model #: 50PD-788
Impedance: 50 Ohm
Configuration: 2-Way power divider/combiner
Frequency Range: 138-174 MHz
RF Input Power: 200 Watts (Divider), 70 Watts (Combiner)
RF Connectors: N, SMA female
Documentation: Data Sheet | Drawing

Clear
Categories: 50 Ohm Reactive Divider/Combiner (High Power), Reactive & Resistive Power Divider/Combiner
  • Description
  • Additional information

Description

Model 50PD-788 is a 50 Ohm high power reactive 2-Way power divider/combiner that operates from 138-174 MHz.  It uses the reactive Wilkinson splitter design which is ideal to fan-in or fan-out RF signals with minimum loss.  The divider port is rated for 200 Watts RF input power.  Each combiner port is rated for 70 Watts of RF input power.  It is available with N or SMA coaxial RF connectors.  It has one divider port and two combiner ports.  Any signal from divider port to combiner port will have insertion loss (i.e. 3 dB nominal loss).  Any signal from a combiner port to another combiner port will have isolation (i.e. minimum of 20 dB loss).

See our Power Divider Application Note for functionality differences between resistive type and reactive type power dividers.  Also examined are the differences in construction, insertion loss, and isolation between a resistive divider, a toroidal divider, and a Wilkinson divider.

Additional information

Weight 0.56 lbs
Connector Type

N Female, SMA Female
