You are here: Home1 / Shop2 / Manually Variable Attenuators3 / 50 Ohm Single Rotor Manual Attenuators4 / Manual Attenuator DC-2GHz 0-1dB x 0.1dB | 50R-254

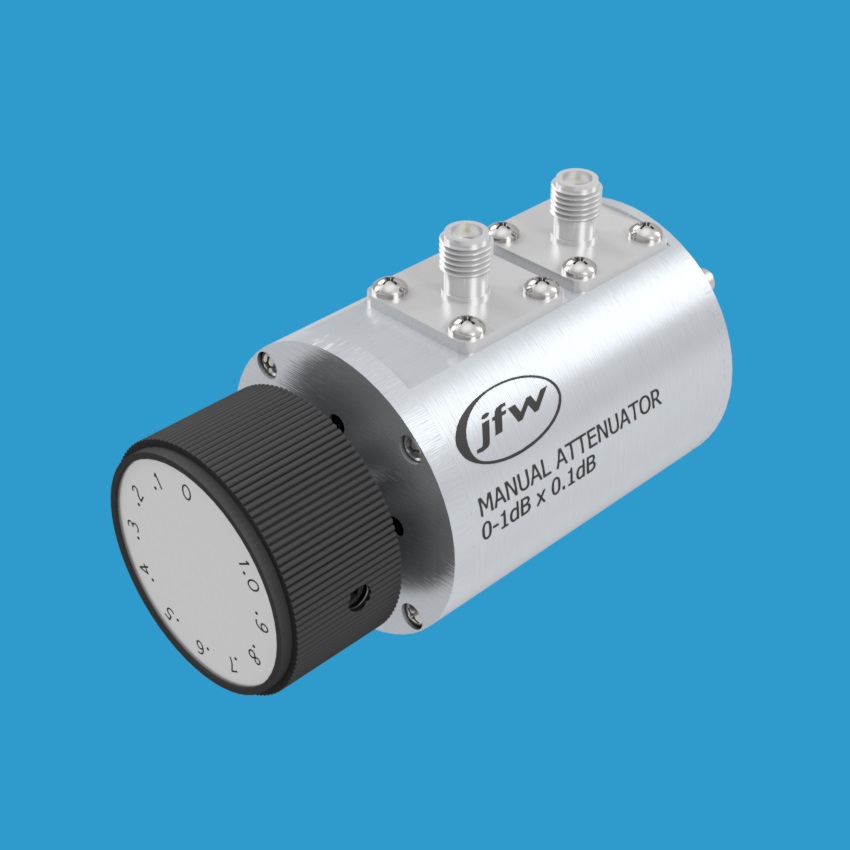

50 Ohm manual attenuator with SMA female and attenuation range 0 to 1dB by 0.1dB steps

Manual Attenuator DC-2GHz 0-1dB x 0.1dB | 50R-254

JFW Model #: 50R-254
Type: Manually variable attenuator
Impedance: 50 Ohm
dB Total: 1 dB
dB Step: 0.1 dB
Frequency Range: DC-2000 MHz
RF Input Power: 2 Watts
RF Connectors: BNC, SMA, TNC
Documentation: Data Sheet | Drawing (BNC) | Drawing (SMA) | Knob/Mounting

Clear
Categories: 50 Ohm Single Rotor Manual Attenuators, Manually Variable Attenuators
  • Description
  • Additional information

Description

Model 50R-254 is a 50 Ohm manual step attenuator with attenuation range 0 to 1dB by 0.1dB steps.  It operates DC-2000 MHz and is rated for 2 Watts average RF power.   It is a single rotary attenuator (i.e. one manual knob).  It is available with 50 Ohm coaxial RF connectors:  BNC, SMA or TNC.  The attenuator has four mounting holes in the front plate to allow for panel mounting.

Additional information

Connector Type

BNC Female, SMA Female, TNC Female
