Description

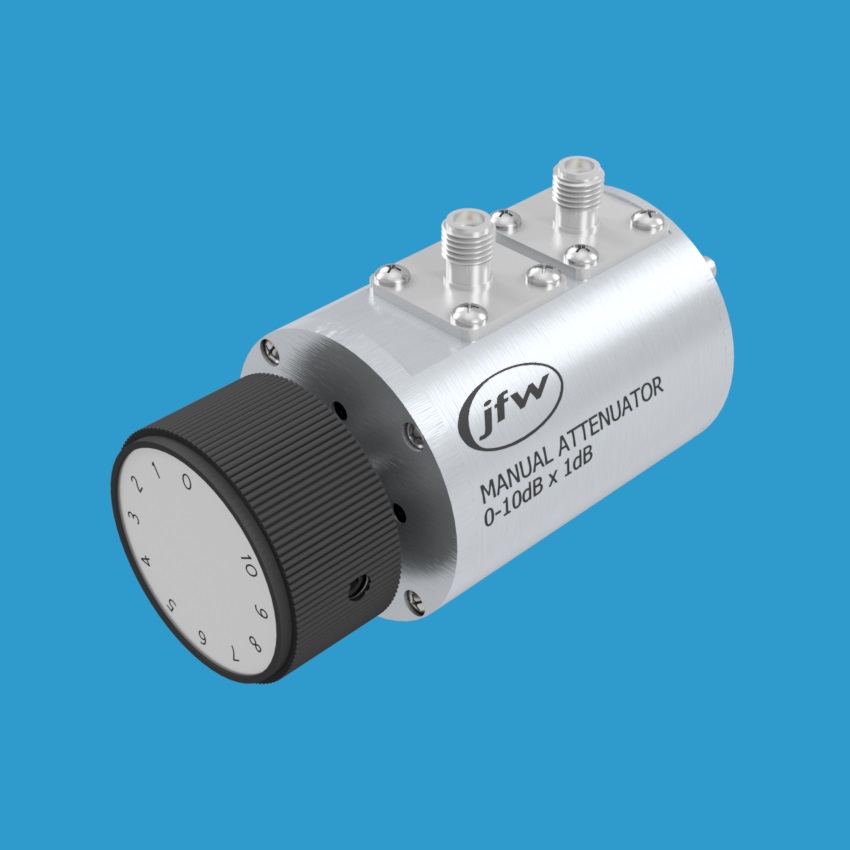

Model 50R-310 is a 50 Ohm manual step attenuator with attenuation range 0 to 10dB by 1dB steps. It operates DC-2700 MHz and is rated for 2 Watts average RF power. It is a single rotary attenuator (i.e. one manual knob). It is available with 50 Ohm SMA female coaxial RF connectors. The attenuator has four mounting holes in the front plate to allow for panel mounting.
