You are here: Home1 / Shop2 / RF Switches3 / 50 Ohm Solid-State RF Switches (Reflective)4 / 1P2T RF Switch 5-2000 MHz | 50S-348

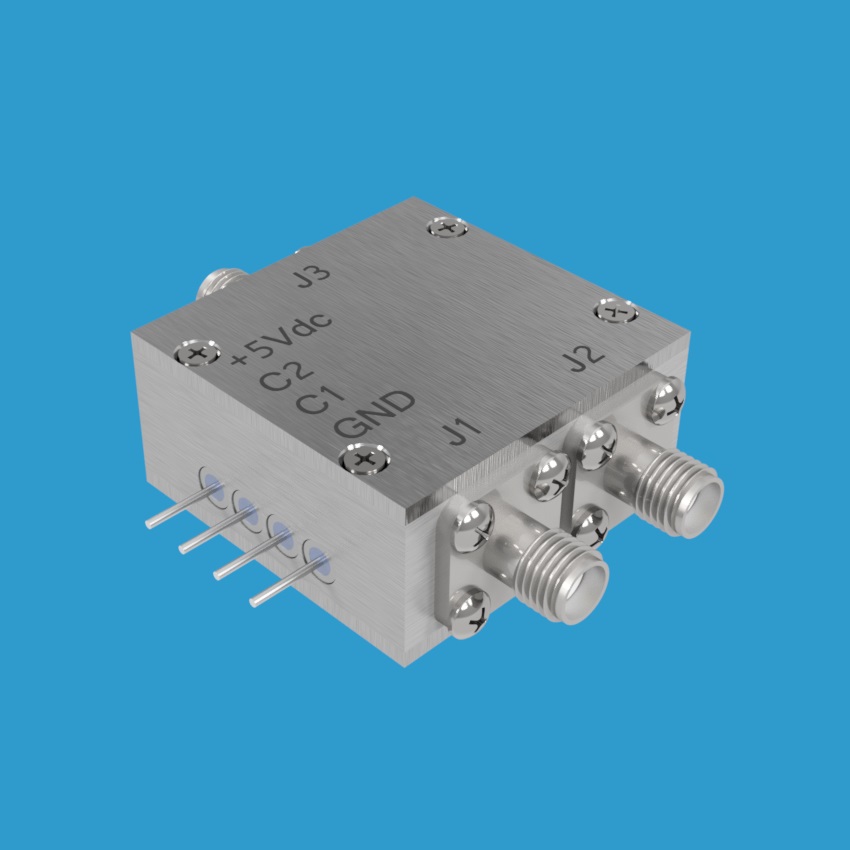

50 Ohm reflective 1P2T solid-state RF switch with SMA female

1P2T RF Switch 5-2000 MHz | 50S-348

JFW Model #: 50S-0348
Impedance: 50 Ohm
Configuration: 1P2T solid-state RF switch
Type: Reflective
Frequency Range: 5-2000 MHz
Switching Speed: 5 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing

Categories: 50 Ohm Solid-State RF Switches (Reflective), RF Switches
  • Description

Description

Model 50S-348 is a 50 Ohm solid-state 1P2T RF switch operating 5-2000 MHz rated for +5dBm of RF input power.  This RF switch is reflective type.  The unused port will set to a reflective setting.  It is available with 50 Ohm SMA female RF connectors.  The 1P2T RF switch has two control lines.  Each control line is activated with TTL signal levels.
