Description

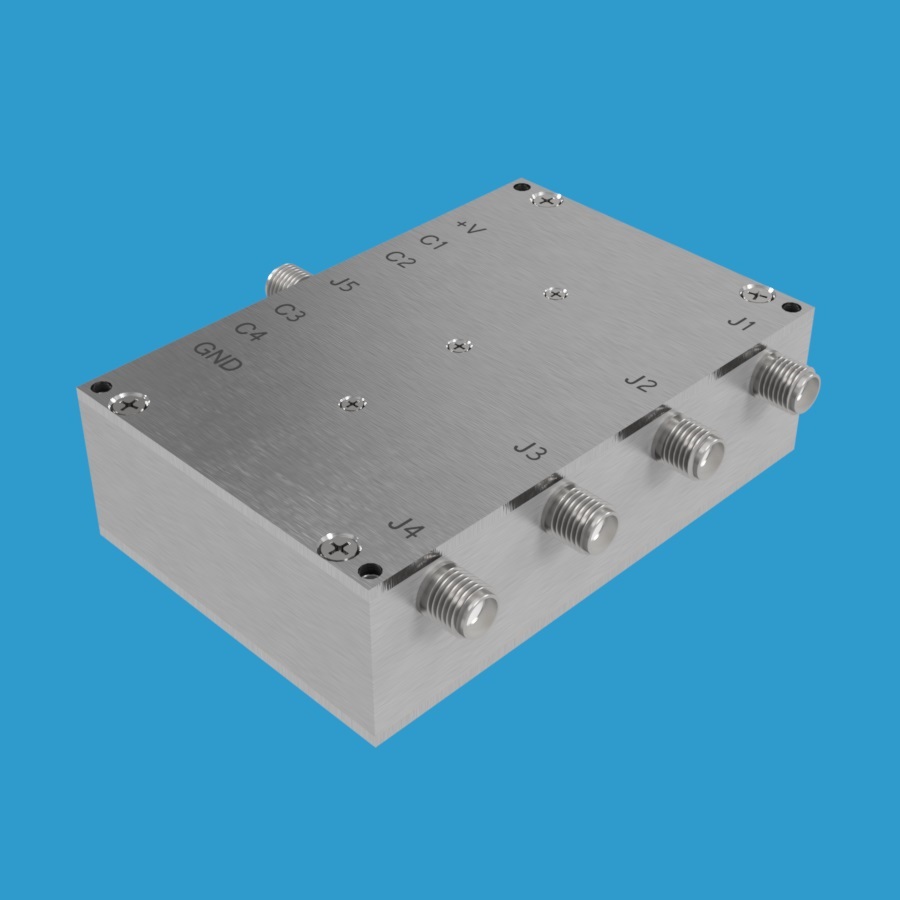

Model 50S-536 is a 50 Ohm solid-state 1P4T RF switch operating 20-1000 MHz rated for +13dBm of RF input power. This RF switch is reflective type. The unused ports will set to a reflective setting. It is available with 50 Ohm SMA female RF connectors. The 1P4T RF switch has four control lines. Each control line is activated with TTL signal levels.
