You are here: Home1 / Shop2 / RF Switches3 / 50 Ohm Solid-State RF Switches (Reflective)4 / 1P1T RF Switch 5-3000 MHz | 50S-642

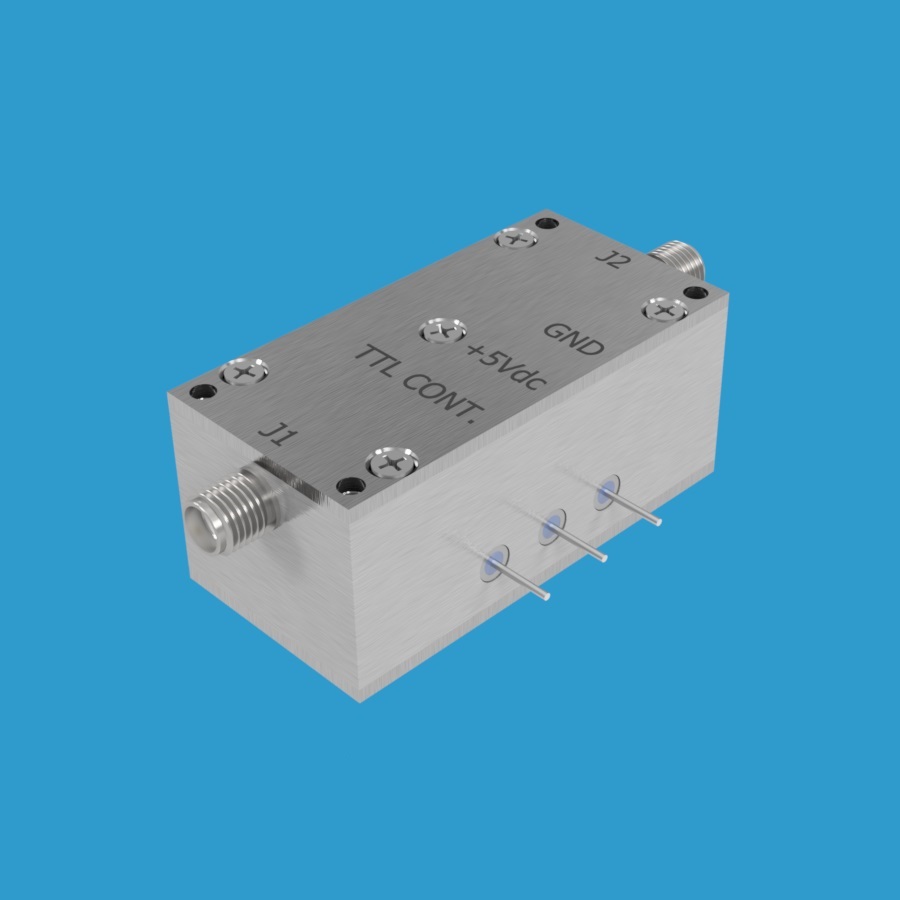

50 Ohm reflective 1P1T solid-state RF switch with SMA female

1P1T RF Switch 5-3000 MHz | 50S-642

JFW Model #: 50S-0642
Impedance: 50 Ohm
Configuration: 1P1T solid-state RF switch
Type: Reflective
Frequency Range: 5-3000 MHz
Switching Speed: 20 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing

Categories: 50 Ohm Solid-State RF Switches (Reflective), RF Switches
  • Description

Description

Model 50S-642 is a 50 Ohm solid-state 1P1T RF switch operating 5-3000 MHz.  It is rated for +10dBm of RF input power at 5 MHz and +20dBm at 1000 MHz and above.  This RF switch is reflective type.  Both ports will set to a reflective setting when the 1P1T is in the OFF setting.  It is available with 50 Ohm SMA female RF connectors.  The 1P1T RF switch has one control line.  The control line is activated with TTL signal levels.
