You are here: Home1 / Shop2 / RF Switches3 / 50 Ohm Solid-State RF Switches (Reflective)4 / 1P1T RF Switch 20-2000 MHz | 50S-785

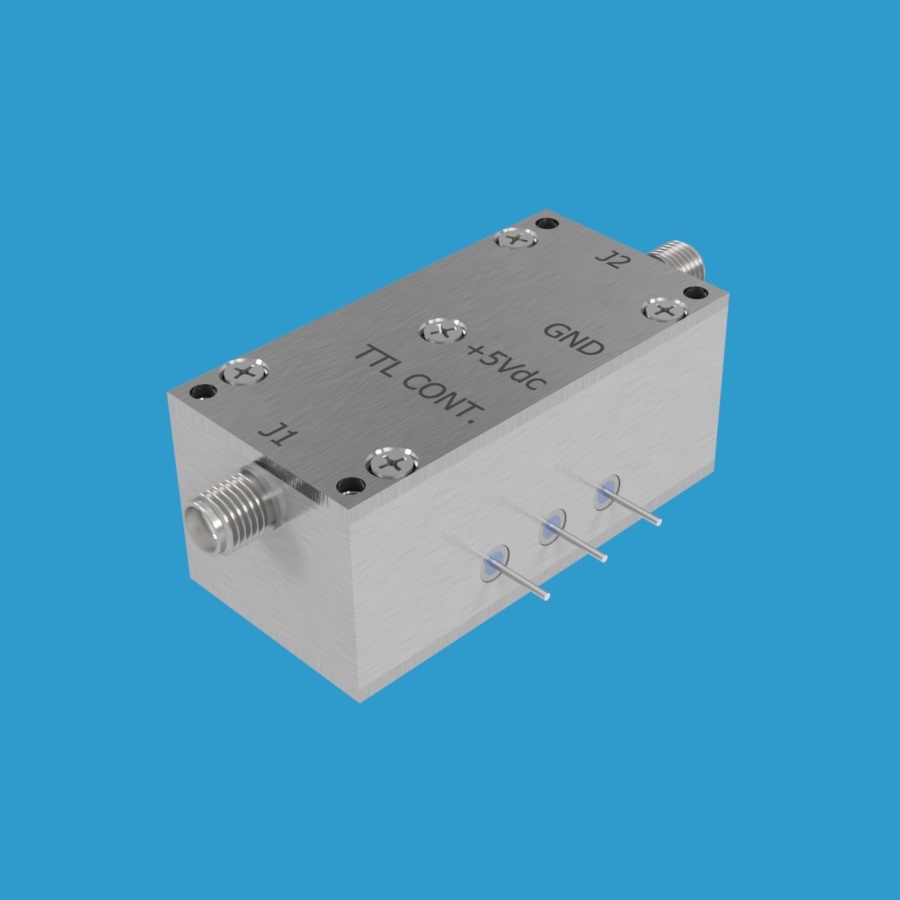

50 Ohm reflective 1P1T solid-state RF switch with SMA female

1P1T RF Switch 20-2000 MHz | 50S-785

JFW Model #: 50S-0785
Impedance: 50 Ohm
Configuration: 1P1T solid-state RF switch
Type: Reflective
Frequency Range: 20-2000 MHz
Switching Speed: 0.5 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing

Categories: 50 Ohm Solid-State RF Switches (Reflective), RF Switches
  • Description

Description

Model 50S-785 is a 50 Ohm solid-state 1P1T RF switch operating 20-1000 MHz rated at +10dBm of RF power.  This RF switch is reflective type.  Both ports will set to a reflective setting when the 1P1T is in the OFF setting.  It is available with 50 Ohm SMA female RF connectors.  The 1P1T RF switch has one control line.  The control line is activated with TTL signal levels.
