You are here: Home1 / Shop2 / RF Switches3 / 50 Ohm Solid-State RF Switches (Absorptive)4 / 1P4T RF Switch 20-4300 MHz | 50S-1075
50 Ohm absorptive 1P4T solid-state RF switch

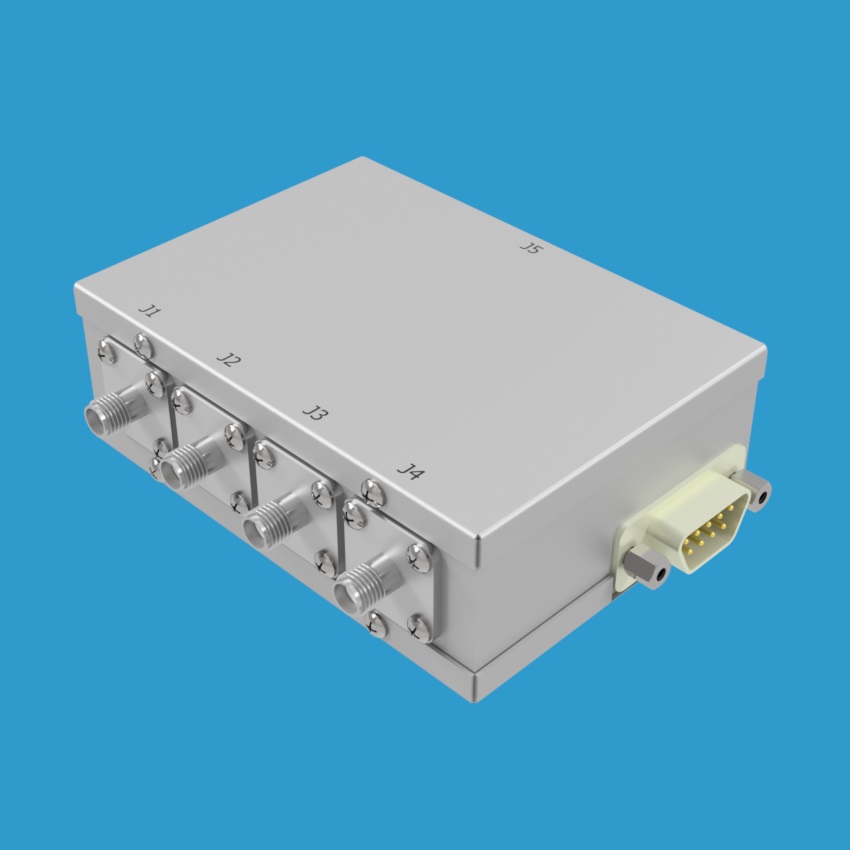

1P4T RF Switch 20-4300 MHz | 50S-1075

JFW Model #: 50S-1075
Impedance: 50 Ohm
Configuration: 1P4T solid-state RF switch
Type: Absorptive (i.e. Self-Terminating)
Frequency Range: 20-4300 MHz
Switching Speed: 10 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing

Categories: 50 Ohm Solid-State RF Switches (Absorptive), RF Switches
  • Description
  • Additional information

Description

Model 50S-1075 is a 50 Ohm solid-state 1P4T RF switch operating 20-4300 MHz.  It is rated for +20dBm of RF input power at 20 MHz and +30dBm (i.e. 1 Watt) at 100 MHz and above.  This RF switch is absorptive type (i.e. self-terminating).  The unused ports will self-terminate at 50 Ohm impedance.  It is available with 50 Ohm SMA female RF connectors.  This 1P4T RF switch has four control lines.  Each control line is activated with TTL signal levels.

Additional information

Connector Type

SMA Female

Related products

  • 1P3T high power solid-state RF switch with N female

    1P3T RF Switch 100-500 MHz | 50S-1407

    Read more
  • 1P2T solid-state RF switch with SMA female

    1P2T RF Switch 20-500 MHz 5 Watt | 50S-1872

    Read more Show Details
  • 1P2T solid-state RF switch with N female

    1P2T RF Switch 10-1000 MHz 30 Watts | 50S-1463

    Read more
  • 1P4T high power solid-state RF switch with N female

    1P4T RF Switch 30-512 MHz | 50S-1801

    Read more
