You are here: Home1 / Shop2 / RF Switches3 / High Power Solid-State RF Switches4 / 1P4T RF Switch 30-512 MHz | 50S-1256

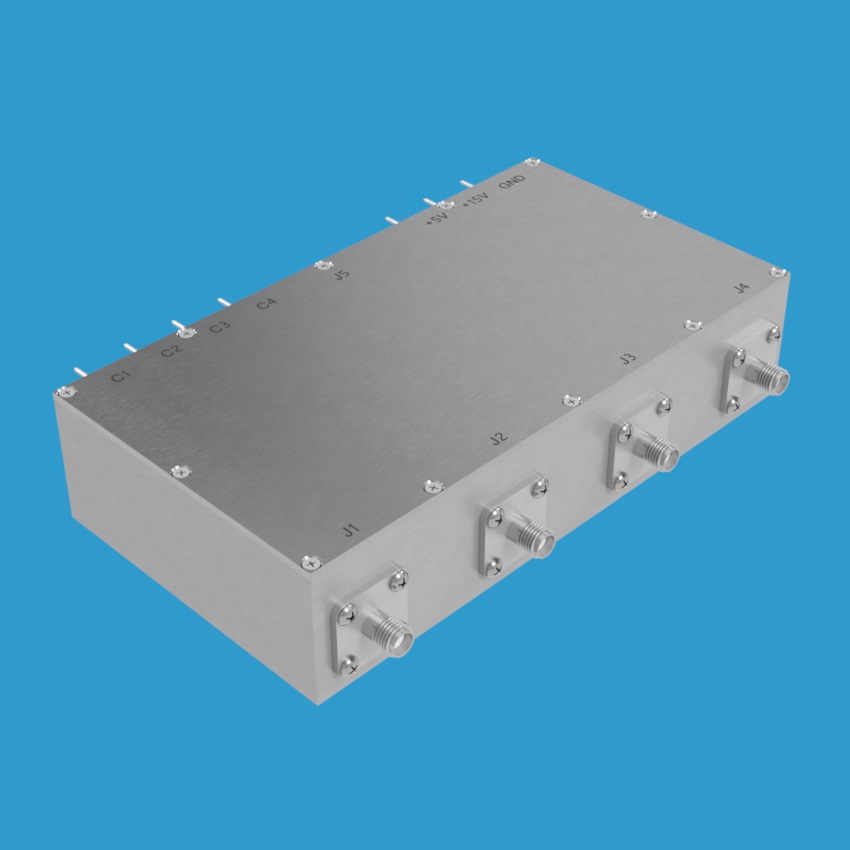

1P4T high power solid-state RF switch with SMA female

1P4T RF Switch 30-512 MHz | 50S-1256

JFW Model #: 50S-1256
Impedance: 50 Ohm
Configuration: 1P4T solid-state RF switch
Type: Reflective
Frequency Range: 30-512 MHz
Switching Speed: 60 uS
RF Input Power:
125 Watts (cold switch)
20 Watts (hot switch)
Documentation: Data Sheet | Drawing

Clear
Categories: High Power Solid-State RF Switches, RF Switches
  • Description
  • Additional information

Description

Model 50S-1256 is a 50 Ohm solid-state reflective 1P4T RF switch operating 30-512 MHz.  The RF power rating for this 1P2T is 125 Watts (cold switch) and 20 Watts (hot switch).  The unused ports are reflective.  It is available with 50 Ohm RF connectors:  SMA, N, TNC.  This 1P4T has four control lines.  Each control line is activated with TTL signal levels.

Additional information

Connector Type

N Female, SMA Female, TNC Female
