Description

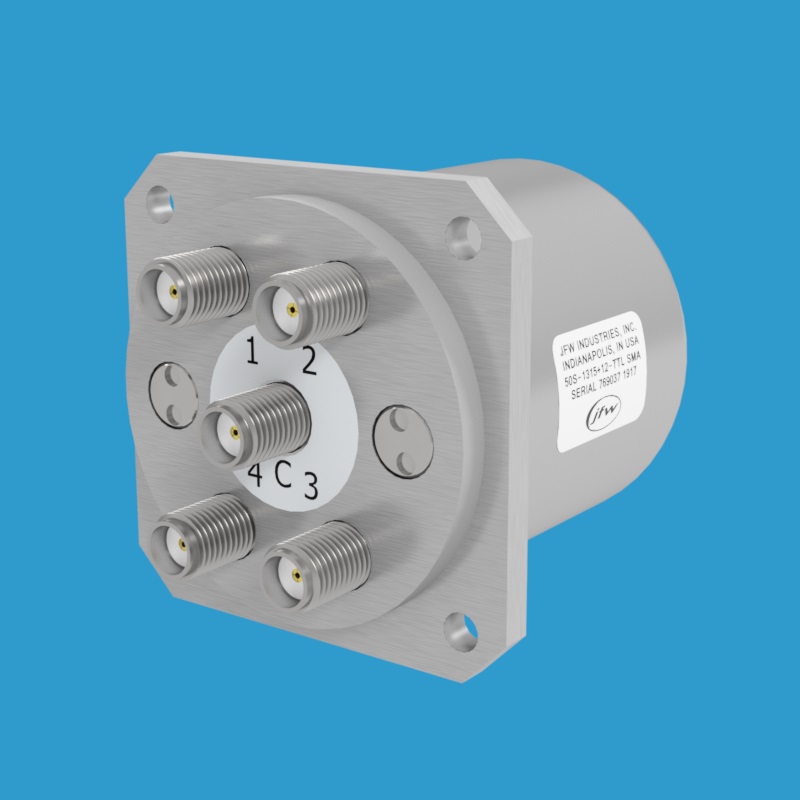

Model 50S-1315+XX-TTL is a TTL controlled 50 Ohm electro-mechanical 1P4T RF switch operating DC-18 GHz with SMA female RF connectors. This RF switch is normally open type and the unused ports are reflective. The normally open design allows the switch to have an “all off” state. This 1P4T RF switch has four control lines. Each control line is activated with TTL signal levels. Only one control line can be active at a time.
